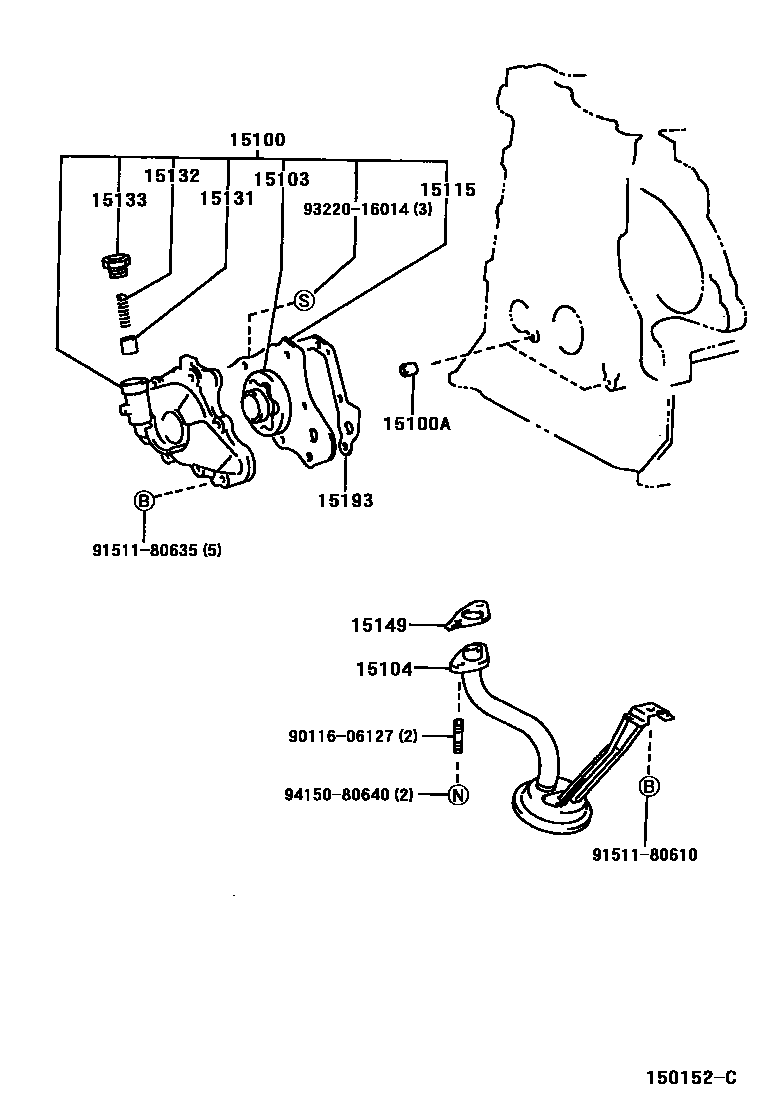

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-22040i1ZZFE..ZZW30199912-200206

main15100-22041i1ZZFE..ZZW30200206-200208

15100APIN, RING(FOR OIL PUMP SET)

main90253-09003×2i1ZZFE..ZZW30199912-200208

15103GEAR SET, OIL PUMP

main15103-22040i1ZZFE..ZZW30199912-200208

15104STRAINER SUB-ASSY, OIL

main15104-22022i1ZZFE..ZZW30199912-200204

main15104-22023i1ZZFE..ZZW30200204-200208

15115COVER, OIL PUMP

main15115-22040i1ZZFE..ZZW30199912-200208

15131VALVE, OIL PUMP RELIEF

main15131-24010i1ZZFE..ZZW30199912-200208

15132SPRING, OIL PUMP RELIEF VALVE

main15132-22040i1ZZFE..ZZW30199912-200208

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1ZZFE..ZZW30199912-200208

15149GASKET, OIL STRAINER FLANGE

main15149-22010i1ZZFE..ZZW30199912-200208

15193GASKET, OIL PUMP

main15197-22010i1ZZFE..ZZW30199912-200208

9011606127

main90116-06127

9151180610

main91511-80610

9151180635

main91511-80635

9322016014

main93220-16014

9415080640

main94150-80640

15 parts on this diagram · 2 diagrams in section
