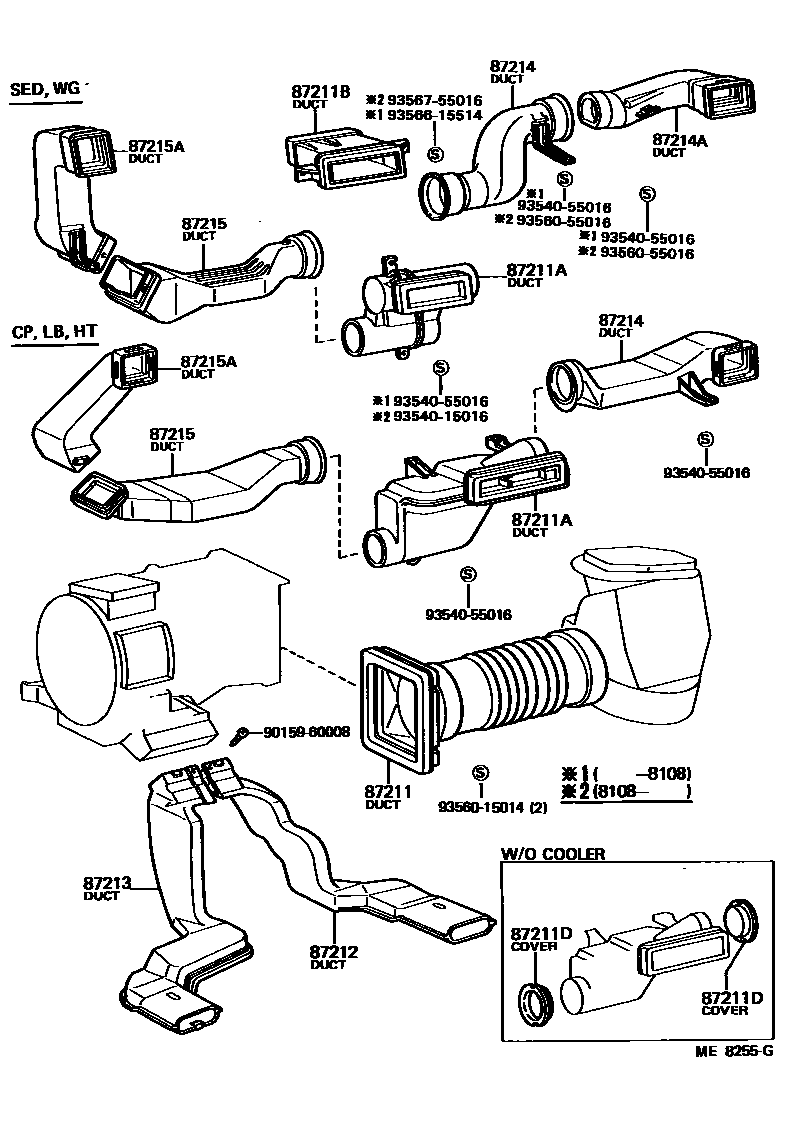

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

87211DUCT, AIR, NO.1

main87201-12030iAE71,TE72197908-198307

main87211-12090iAE71,TE72..USA197908-198307

BOOST VENTILATOR ONLY

87211ADUCT, AIR, NO.2

main55086-12100iAE71,TE72..CP,HT,LB197908-198307

AIR MIX TYPE

main55086-12110iAE71,TE72..(CP,HT,LB)..USA197908-198307

main87211-12080iAE71,TE72..SED,WG197908-198307

AIR MIX TYPE

main87211-12100iAE71,TE72..(SED,WG)..USA197908-198307

BOOST VENTILATOR ONLY

87211BDUCT, AIR, NO.3

main55086-12090iAE71,TE72..SED,WG197908-198307

87211DCOVER, HEATER AIR DUCT HOLE

main55792-12030×2iAE71,TE72..CP,HT,LB197908-198307

87212DUCT, AIR, REAR NO.1

main87212-12040iTE72197908-198104

COLD SPEC

main87212-12041iAE71,TE72198104-198307

COLD SPEC

87213DUCT, AIR, REAR NO.2

main87203-12010iTE72197908-198104

COLD SPEC

main87203-12011iAE71,TE72198104-198307

COLD SPEC

87214DUCT, AIR, SIDE NO.1 RH

main55087-12040iTE72..(SED,WG)..USA197908-198008

W/COOLER

main55087-12060iAE71..(SED,WG)..DX..USA198208-198307

W/COOLER

main55845-12060iAE71,TE72..(CP,HT,LB)..USA197908-198307

W/COOLER

87214ADUCT, AIR, SIDE NO.2 RH

main55088-12040iTE72..(SED,WG)..(3FC,4FC,5F)..USA198008-198208

W/COOLER

main55088-12060iAE71..(SED,WG)..DX..USA198208-198307

W/COOLER

87215DUCT, AIR, SIDE NO.1 LH

main55085-12050iAE71,TE72..(SED,WG)..(3FC,4FC,5F)..USA198008-198307

W/COOLER

main55844-12100iAE71,TE72..(CP,HT,LB)..USA197908-198307

W/COOLER

87215ADUCT, AIR, SIDE NO.2 LH

main55084-12050iTE72..(SED,WG)..USA197908-198008

W/COOLER

main55084-12090iAE71,TE72..(CP,HT,LB)..USA197908-198307

W/COOLER

9015960008

main90159-60008

9354015016

main93540-15016

9354055016

main93540-55016

9356015014

main93560-15014

9356055016

main93560-55016

9356615514

main93566-15514

9356755016

main93567-55016

17 parts on this diagram · 2 diagrams in section
