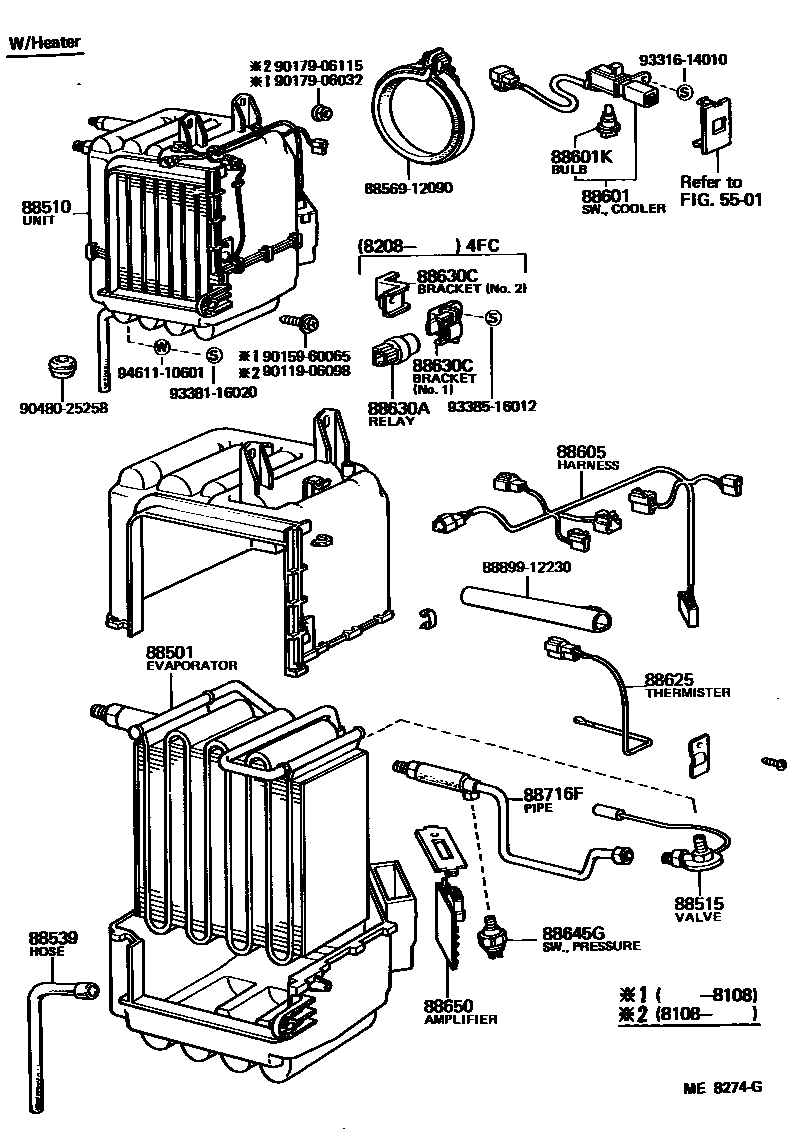

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12160iTE72..USA197908-198008

main88501-12260iAE71,TE72..(3FC,4FC,5F)..USA198008-198307

BOOST VENTILATOR ONLY

88510UNIT ASSY, COOLER

main88510-12180iTE72..(3FC,5F)..USA198008-198108

main88510-12181iTE72..(DX,SR5)..USA198108-198208

main88510-12182iAE71..DX..USA198208-198307

main88510-12280iTE72..(3FC,4FC,5F)..USA198008-198208

BOOST VENTILATOR ONLY

main88510-12370iAE71..DX..USA198208-198307

BOOST VENTILATOR ONLY

88515VALVE, COOLER EXPANSION

main88515-20040iAE71,TE72..(DX,SR5)..USA198008-198307

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12050iTE72..USA197908-198008

88601SWITCH SUB-ASSY, COOLER CONTROL

main84660-12020iTE72..USA197908-198008

main88610-12030iTE72..USA197908-198108

BOOST VENTILATOR ONLY

main88610-12031iAE71,TE72..(DX,SR5)..USA198108-198307

BOOST VENTILATOR ONLY

88601KBULB(FOR COOLER SWITCH)

main88607-14020iTE72..USA197908-198008

14V 1.4W,12V 1.4W

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-12250iTE72..USA197908-198008

main88605-12251iTE72..(DX,SR5)..USA198108-198208

main88605-12252iAE71..DX..USA198208-198307

main88605-12370iAE71..DX..USA198208-198307

BOOST VENTILATOR ONLY

88625THERMISTOR, COOLER, NO.1

main88625-12050iTE72..(3FC,5F)..USA198008-198108

BOOST VENTILATOR ONLY

main88625-12060iTE72..USA197908-198008

main88625-12070iAE71,TE72..(DX,SR5)..USA198108-198307

88630ARELAY ASSY, COOLER

main90987-03001iAE71..4FC198208-198307

88630CBRACKET, COOLER RELAY

main85999-12050iAE71..4FC198208-198307

NO.1

main88688-12160iAE71..4FC198208-198307

NO.2

88645GSWITCH, PRESSURE

main88645-12020iAE71..DX..USA198208-198307

BOOST VENTILATOR ONLY

main88645-22010iTE72..USA197908-198008

main88645-30250iAE71..DX..USA198208-198307

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14070iTE72..USA197908-198008

main88650-16020iAE71..DX..USA198208-198307

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-12490iTE72..USA197908-198008

8856912090CLAMP (FOR COOLER RELAY)

main88569-12090

8889912230COVER, EVAPORATOR

main88899-12230

9011906098

main90119-06098

9015960065

main90159-60065

9017906032

main90179-06032

9017906115

main90179-06115

9048025258

main90480-25258

9331614010

main93316-14010

9338116020

main93381-16020

9338516012

main93385-16012

9461110601

main94611-10601

25 parts on this diagram · 2 diagrams in section
