Toyota COROLLA — RADIO RECEIVER & AMPLIFIER & CONDENSER

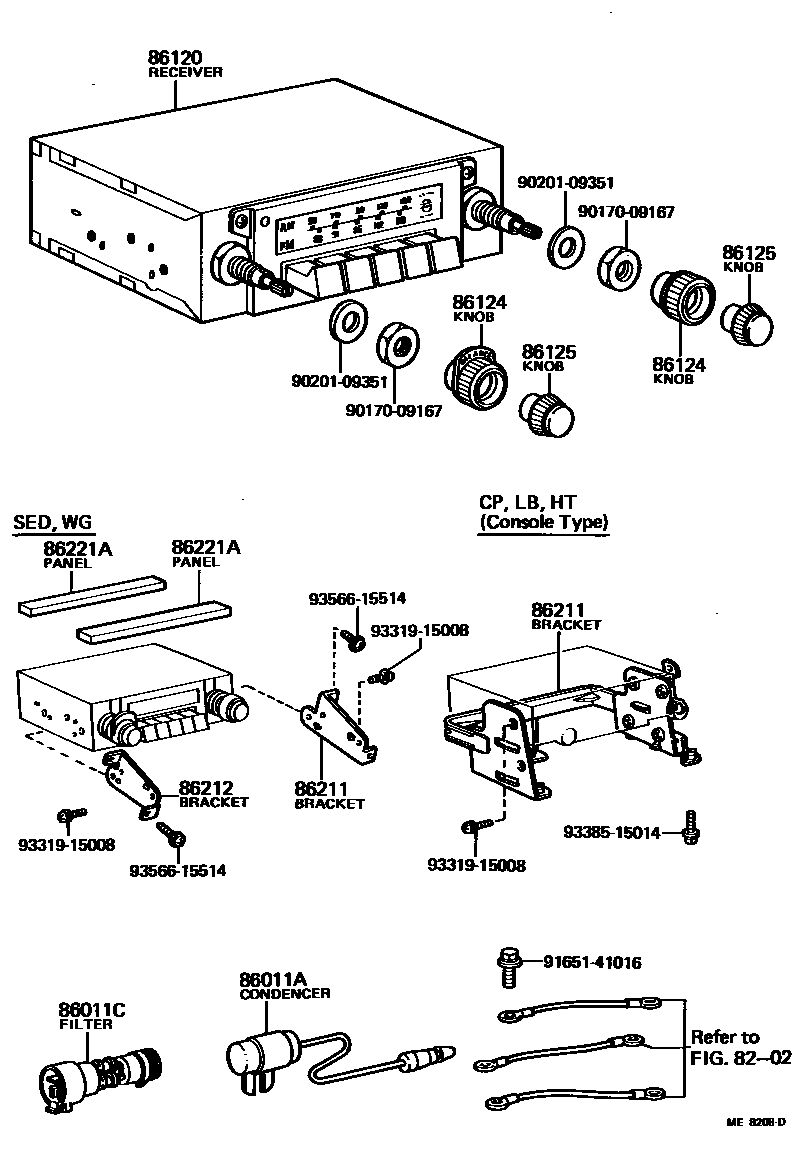

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

86011ACONDENSER, RADIO SETTING

86011CFILTER, NOISE

86120RECEIVER ASSY, RADIO

86124KNOB, RADIO RECEIVER CONTROL

86125KNOB, RADIO RECEIVER SWITCH

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

86221APANEL, RADIO RECEIVER

9017009167

9020109351

9165141016

9331915008

9338515014

9356615514

15 parts on this diagram · 3 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota COROLLA

This section contains 24 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota COROLLA. Key components include: WIRING & CLAMP, CONDENSER, RADIO SETTING, FILTER, NOISE, RECEIVER ASSY, RADIO, KNOB, RADIO RECEIVER SWITCH.
