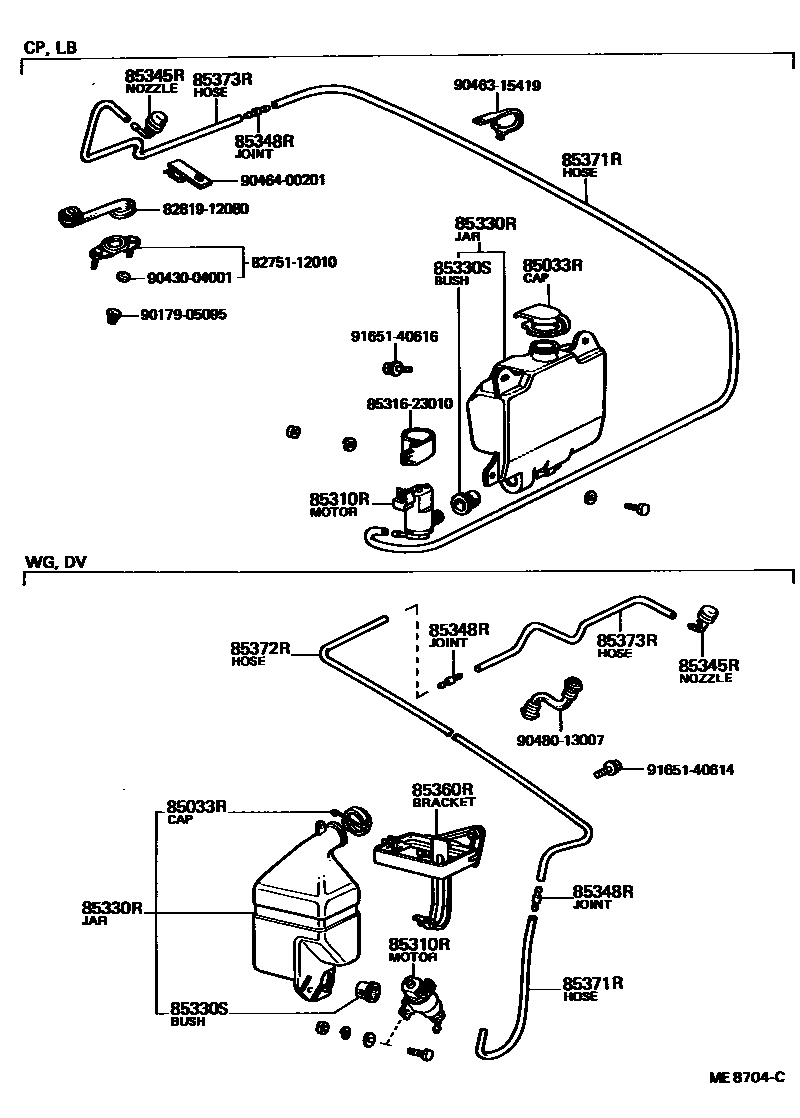

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-36120iAE71,TE72..WG197908-198307

main85332-12010-01iAE71,TE72..CP,LB197908-198307

BLACK,BLACK

main85332-12010-04iAE71,TE72..CP,LB197908-198307

BLUE,BLUE

main85332-12010-06iAE71,TE72..CP,LB197908-198307

DARK BROWN,BROWN

85310RMOTOR ASSY, REAR WASHER

main85310-20100iAE71,TE72..CP,LB,WG197908-198212

main85310-22080iAE71..CP,LB198212-198307

85330RJAR ASSY, REAR WASHER

main85330-12110iAE71,TE72..CP,LB197908-198307

main85330-23011iAE71,TE72..WG197908-198307

85330SBUSH, REAR WASHER JAR

main90099-32089iAE71,TE72..CP,LB,WG197908-198307

85345RNOZZLE, REAR WASHER

main85035-12110iTE72..CP,LB,WG197908-198108

main85035-16040iAE71..WG198305-198307

main85035-23030iAE71,TE72..CP,LB,WG198108-198305

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201×2iAE71,TE72..CP,LB,WG197908-198307

85360RBRACKET ASSY, REAR WASHER

main85360-13020iAE71,TE72..WG197908-198307

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06006iAE71,TE72..CP,LB197912-198307

L=2000,*H,L=1600

main90446-06013iAE71,TE72..WG197912-198307

L=1000(*H,L=500)

main90446-06279iTE72..CP,LB197908-197912

L=1600

main90446-06300iTE72..WG197908-197912

L=1000(*H,L=500)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33315iTE72..WG197908-197912

L=1450(*H,L=900)

main90446-06013iAE71,TE72..WG197912-198307

L=1450(*H,L=900)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAE71,TE72..CP,LB,WG197912-198307

L=1000(*H,L=400)

main90445-07063iTE72..CP,LB,WG197908-197912

L=1000(*H,L=400)

8275112010BLOCK, DRIVER SIDE RELAY

main82751-12010

8281912080GROMMET, WIRING HARNESS

main82819-12080

8531623010SUPPORT, WINDSHIELD WASHER MOTOR

main85316-23010

9017905095

main90179-05095

9043004001

main90430-04001

9046315419

main90463-15419

9046400201

main90464-00201

9048013007

main90480-13007

9165140614

main91651-40614

9165140616

main91651-40616

20 parts on this diagram · 1 diagram in section
