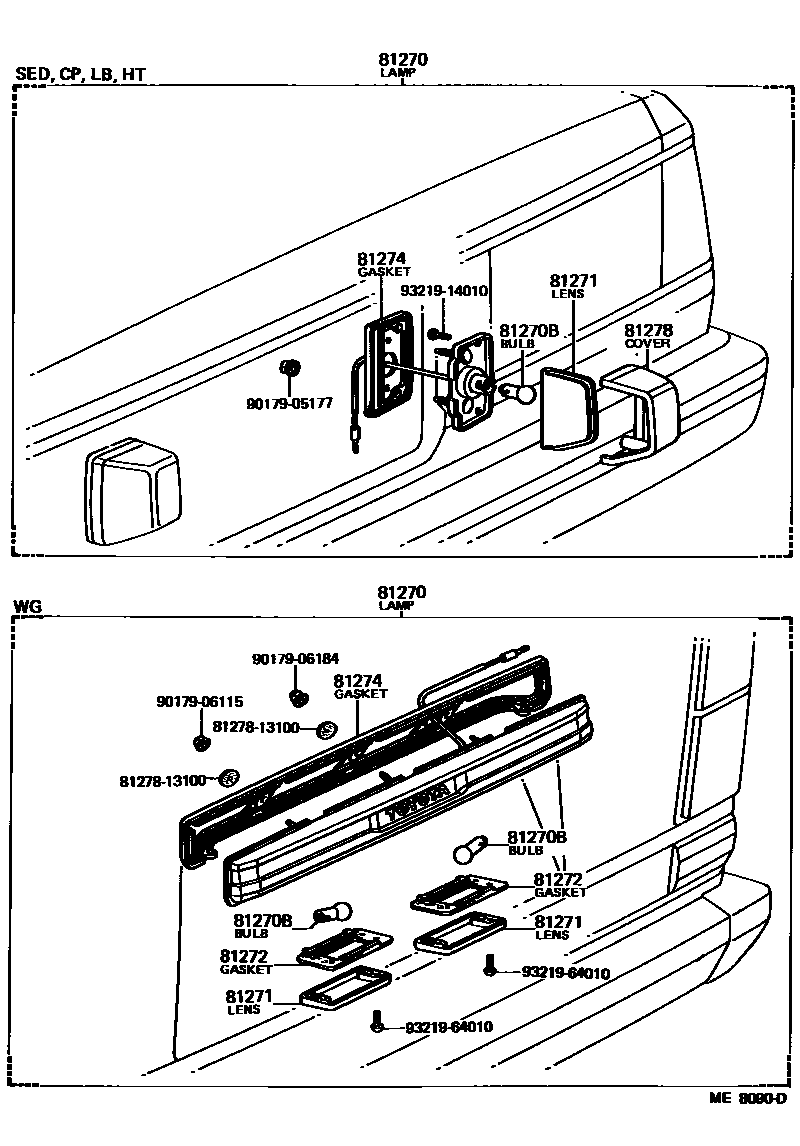

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-19605iTE72..(CP,SED)..(SR5,STD)197908-198010

RH

main81270-19615iTE72..WG197908-198009

main81270-19705iAE71,TE72..CP,HT,LB,SED198108-198307

RH

main81270-19715iTE72..WG198009-198108

main81270-19805iAE71,TE72..WG198108-198307

main81270-29335iTE72..(CP,SED)..DX; TE72..LB197908-198010

RH

main81270-29475iTE72..(CP,SED)..DX; TE72..HT,LB198010-198108

RH

main81690-19095iTE72..(CP,SED)..(SR5,STD)197908-198010

LH

main81690-19145iTE72..(CP,SED)..(SR5,STD)198010-198108

LH

main81690-29095iTE72..(CP,SED)..DX; TE72..LB197908-198010

LH

main81690-29105iTE72..(CP,SED)..DX; TE72..HT,LB198010-198108

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11075×2iAE71,TE72197908-198307

12V 7.5W,12V 7.5W

81271LENS, LICENSE PLATE LAMP

main81271-13100×2iAE71,TE72..WG197908-198307

main81271-20110iAE71,TE72..CP,HT,LB,SED197908-198307

RH

main81691-20030iAE71,TE72..CP,HT,LB,SED197908-198307

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-13100×2iAE71,TE72..WG197908-198307

81274GASKET, LICENSE PLATE LAMP BODY

main81274-13100iTE72..WG197908-198009

main81274-13130iTE72..WG198009-198108

main81274-13140iAE71,TE72..WG198108-198307

main81274-20110iAE71,TE72..CP,HT,LB,SED197908-198307

RH

main81694-20030iAE71,TE72..CP,HT,LB,SED197908-198307

LH

81278COVER, LICENSE PLATE LAMP

main81276-12210iTE72..(CP,SED)..(SR5,STD)197908-198108

RH

main81276-20110iTE72..(CP,SED)..DX; TE72..HT,LB197908-198108

RH

main81696-12060iTE72..(CP,SED)..(SR5,STD)197908-198108

LH

main81696-20030iTE72..(CP,SED)..DX; TE72..HT,LB197908-198108

LH

8127813100COVER, LICENSE PLATE LAMP

main81278-13100

9017905177

main90179-05177

9017906115

main90179-06115

9017906184

main90179-06184

9321914010

main93219-14010

9321964010

main93219-64010

12 parts on this diagram · 1 diagram in section
