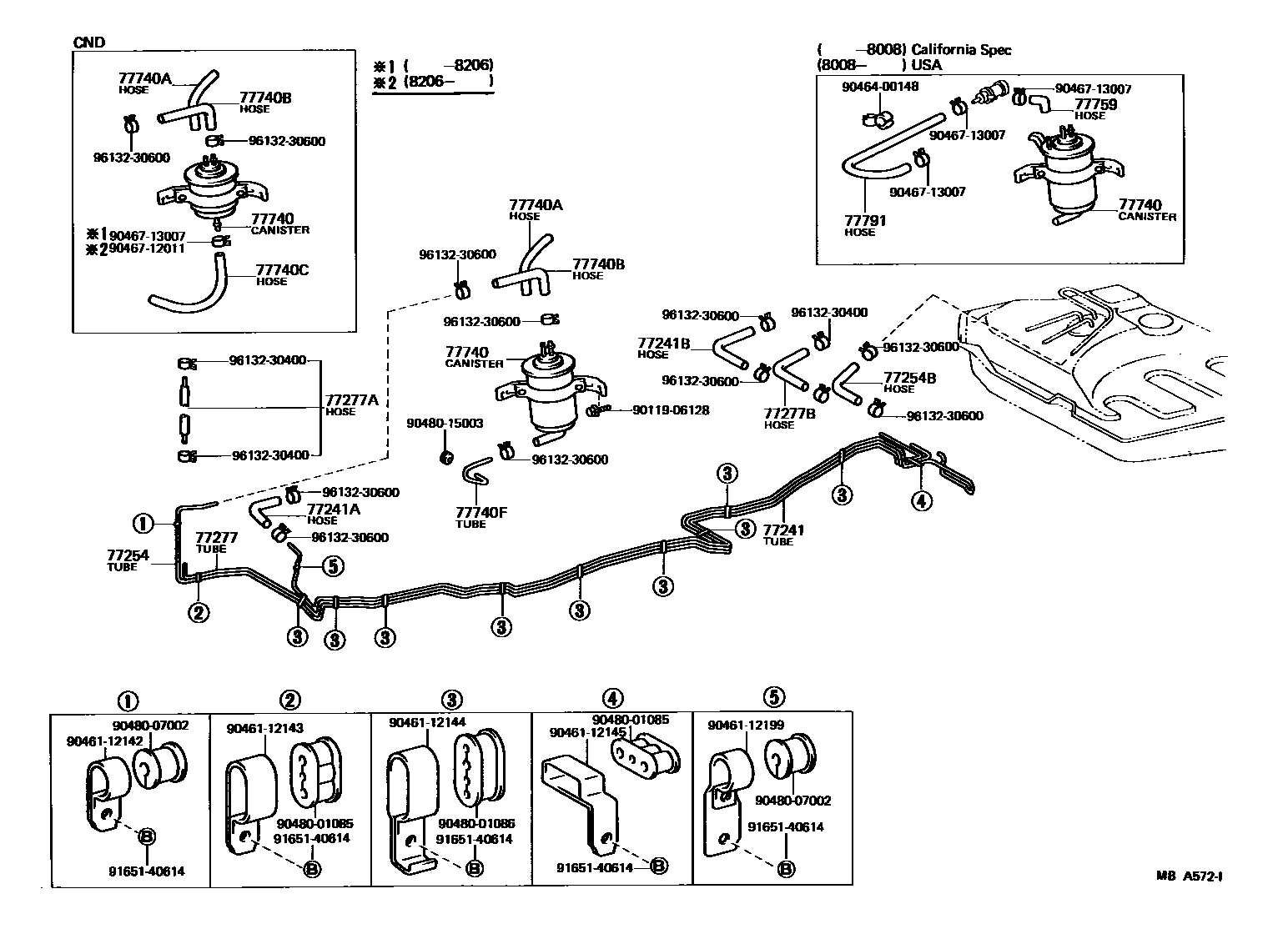

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

77241TUBE, FUEL MAIN, NO.1

main77205-12090iAE71..CP,HT,LB,SED198208-198307

main77251-12110iTE72..CP,HT,LB,SED197908-198208

main77251-13050iTE72..WG197908-198108

main77251-13051iTE72..WG198108-198208

main77251-13052iAE71..WG198208-198307

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06030iAE71,TE72197908-198307

L=300(*H,L=220)

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main90445-12085iTE72..WG197908-198108

main90445-12105iAE71,TE72..WG198108-198307

L=300(*H,L=240)

main95332-06020iAE71,TE72..CP,HT,LB,SED197908-198307

L=200

77254TUBE, FUEL EMISSION, NO.1

main77019-12080iAE71..CP,HT,LB,SED198208-198307

main77261-12120iTE72..CP,HT,LB,SED197908-198208

main77261-13070iTE72..WG197908-198108

main77261-13071iTE72..WG198108-198208

main77261-13072iAE71..WG198208-198307

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06020iAE71,TE72..CP,HT,LB,SED197908-198307

L=200

77277TUBE, FUEL RETURN, NO.1

main77255-12090iTE72..(CP,HT,LB,SED)..USA197908-198208

main77255-12130iAE71..CP,HT,LB,SED198208-198307

main77255-13050iTE72..WG..USA197908-198108

main77255-13051iTE72..WG..USA198108-198208

main77255-13052iAE71..WG198208-198307

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main23271-28020iTE72..USA197908-198208

main95332-04030iAE71198208-198307

L=300(*H,L=240)

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iAE71..CP,HT,LB,SED198208-198307

L=200(*H,L=180)

main95332-04030iAE71..WG198208-198307

L=300(*H,L=260)

77740CANISTER ASSY, CHARCOAL

main77740-12300iAE71..USA198208-198307

main77740-12310iAE71..CND198208-198307

main77740-28040iTE72..CND197908-198208

main77740-28050iTE72..USA197908-198008

main77740-28060iTE72..USA198008-198208

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19930iAE71,TE72198007-198307

*H,L=300,MARK=#*

main95411-39930iTE72197908-198007

*H,L=300

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main95332-06020iAE71,TE72197908-198307

L=200(*H,L=190)

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90445-12121iTE72..CND198206-198208

L=200

main90445-12122iAE71..CND198208-198307

L=220

main95332-08020iTE72..CND197909-198206

L=200

main95332-08030iTE72..CND197908-197909

L=300

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77264-12080iTE72..USA197908-198208

main77264-12090iAE71..USA198208-198307

77759HOSE, CHARCOAL CANISTER

main77759-14011iTE72..USA197908-198008

CALIFORNIA SPEC

77791HOSE, OUTER VENT VALVE TO CARBURETOR

main77791-12030iAE71..USA198208-198307

main77791-28010iTE72..USA197908-198008

CALIFORNIA SPEC

9011906128

main90119-06128

9046112142

main90461-12142

9046112143

main90461-12143

9046112144

main90461-12144

9046112145

main90461-12145

9046112199

main90461-12199

9046400148

main90464-00148

9046712011

main90467-12011

9046713007

main90467-13007

9048001085

main90480-01085

9048001086

main90480-01086

9048007002

main90480-07002

9048015003

main90480-15003

9165140614

main91651-40614

9613230400

main96132-30400

9613230600

main96132-30600

31 parts on this diagram · 6 diagrams in section
