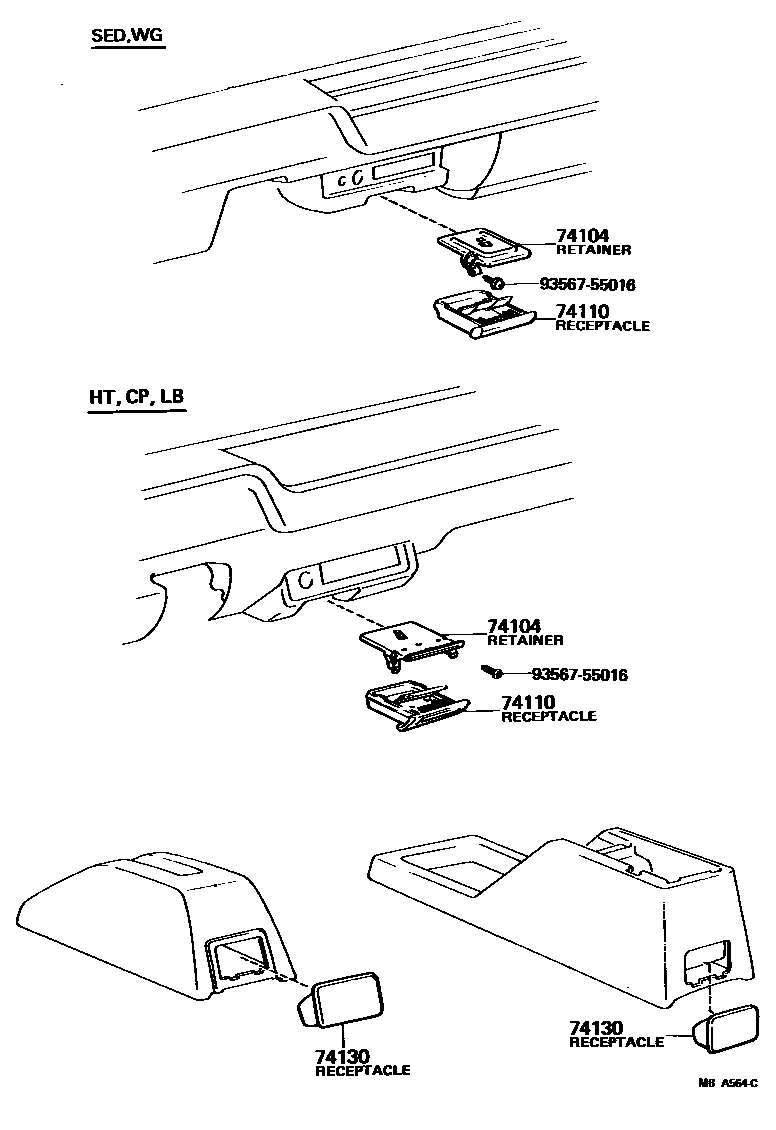

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-12130iAE71,TE72..SED,WG197908-198306

main74104-12131iAE71..SED,WG198306-198307

main74104-12140iAE71,TE72..CP,HT,LB197908-198307

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-12150-01iAE71,TE72..SED,WG197908-198305

BLACK,BLACK

main74102-12150-04iAE71,TE72..SED,WG197908-198305

BLUE,BLUE

main74102-12150-06iAE71,TE72..SED,WG198108-198305

DARK BROWN,BROWN

main74102-12150-15iTE72..SED,WG197908-198108

BEIGE,BEIGE

main74102-12151-01iAE71..SED,WG198305-198307

BLACK,BLACK

main74102-12151-04iAE71..SED,WG198305-198307

BLUE,BLUE

main74102-12151-06iAE71..SED,WG198305-198307

DARK BROWN,BROWN

main74102-12160-01iAE71,TE72..CP,HT,LB197908-198307

BLACK,BLACK

main74102-12160-04iAE71,TE72..CP,HT,LB197908-198307

BLUE,BLUE

main74102-12160-06iAE71,TE72..CP,HT,LB197908-198307

DARK BROWN,BROWN

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iAE71,TE72197908-198307

BLACK,BLACK

main74130-12040-04iAE71,TE72197908-198307

BLUE,BLUE

main74130-12040-06iTE72..CP,HT,LB197908-198108

DARK BROWN,BROWN

main74130-12040-15iTE72..SED,WG197908-198108

BEIGE,BEIGE

9356755016

main93567-55016

4 parts on this diagram · 1 diagram in section
