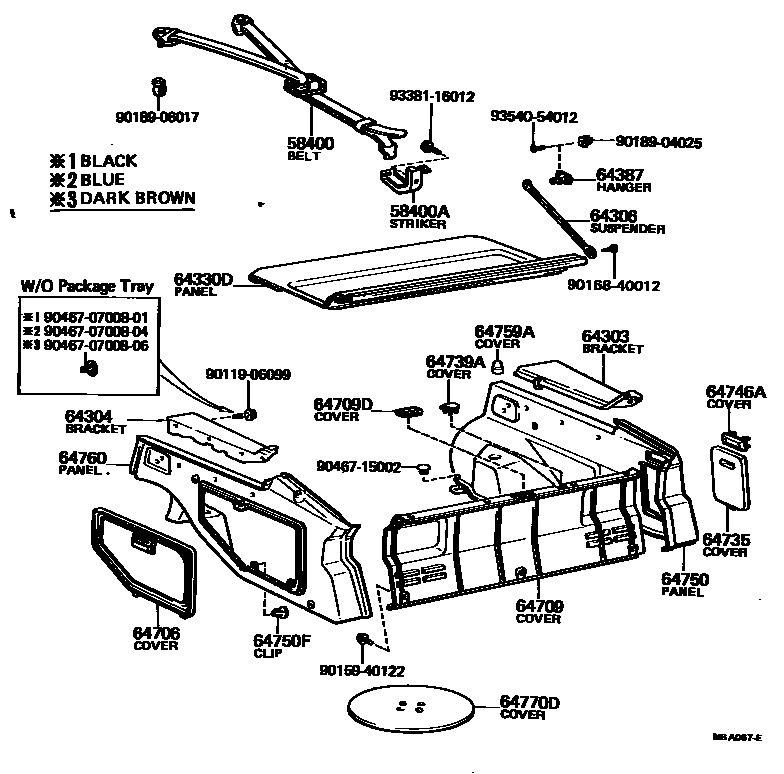

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-12020iTE72..CP,LB197908-198102

main58400-12021iAE71,TE72..CP,LB198102-198307

58400ASTRIKER, LUGGAGE HOLD BELT

main58461-12010iAE71,TE72..CP,LB197908-198307

64303BRACKET SUB-ASSY, PACKAGE TRAY, RH

main64301-12010-01iAE71,TE72..CP197908-198307

BLACK,BLACK

main64301-12010-04iAE71,TE72..CP197908-198307

BLUE,BLUE

main64301-12010-06iAE71,TE72..CP197908-198307

DARK BROWN,BROWN

64304BRACKET SUB-ASSY, PACKAGE TRAY, LH

main64302-12010-01iAE71,TE72..CP197908-198307

BLACK,BLACK

main64302-12010-04iAE71,TE72..CP197908-198307

BLUE,BLUE

main64302-12010-06iAE71,TE72..CP197908-198307

DARK BROWN,BROWN

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64367-12010×2iAE71,TE72..CP197908-198307

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-12400-01iAE71,TE72..CP197908-198307

BLACK,BLACK

main64330-12400-04iAE71,TE72..CP197908-198307

BLUE,BLUE

main64330-12400-06iAE71,TE72..CP197908-198307

DARK BROWN,BROWN

64387HANGER, PACKAGE TRAY TRIM

main64381-12010×2iAE71,TE72..CP197908-198307

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64707-12020-01iAE71,TE72..CP,LB197908-198307

BLACK,BLACK

main64707-12020-04iAE71,TE72..CP,LB197908-198307

BLUE,BLUE

main64707-12020-06iAE71,TE72..CP,LB197908-198307

DARK BROWN,BROWN

64709COVER SUB-ASSY, LOWER BACK PANEL

main64706-12010-01iAE71,TE72..CP197908-198307

BLACK,BLACK

main64706-12010-04iAE71,TE72..CP197908-198307

BLUE,BLUE

main64706-12010-06iAE71,TE72..CP197908-198307

DARK BROWN,BROWN

main64706-12020-01iTE72..LB197908-198005

BLACK,BLACK

main64706-12020-04iTE72..LB197908-198005

BLUE,BLUE

main64706-12020-06iTE72..LB197908-198005

DARK BROWN,DARK BROWN

main64716-12030-01iAE71,TE72..LB198005-198307

BLACK,BLACK

main64716-12030-04iAE71,TE72..LB198005-198307

BLUE,BLUE

main64716-12030-06iAE71,TE72..LB198005-198307

DARK BROWN,BROWN

64709DCOVER, BACK DOOR STRIKER

main64749-12020-01iAE71,TE72..CP,LB197908-198307

BLACK,BLACK

main64749-12020-04iAE71,TE72..CP,LB197908-198307

BLUE,BLUE

main64749-12020-06iAE71,TE72..CP,LB197908-198307

DARK BROWN,BROWN

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-12010-01iAE71,TE72..CP197908-198307

BLACK,BLACK

main64735-12010-04iAE71,TE72..CP197908-198307

BLUE,BLUE

main64735-12010-06iAE71,TE72..CP197908-198307

DARK BROWN,BROWN

main64735-12020-01iAE71,TE72..LB197908-198307

BLACK,BLACK

main64735-12020-04iAE71,TE72..LB197908-198307

BLUE,BLUE

main64735-12020-06iAE71,TE72..LB197908-198307

DARK BROWN,BROWN

64739ACOVER, DECK TRIM REAR WASHER

main64739-12020-01iAE71,TE72..CP,LB197908-198307

BLACK,BLACK

main64739-12020-04iAE71,TE72..CP,LB197908-198307

BLUE,BLUE

main64739-12020-06iAE71,TE72..CP,LB197908-198307

DARK BROWN,BROWN

64746ACOVER, DECK TRIM SIDE LAMP HOLE

main64746-12020-01iAE71,TE72..CP,LB197908-198307

BLACK,BLACK

main64746-12020-04iAE71,TE72..CP,LB197908-198307

BLUE,BLUE

main64746-12020-06iAE71,TE72..CP,LB197908-198307

DARK BROWN,BROWN

64750PANEL ASSY, DECK SIDE TRIM, RH

main64731-12900-01iAE71,TE72..CP197908-198307

BLACK,BLACK

main64731-12900-04iAE71,TE72..CP197908-198307

BLUE,BLUE

main64731-12900-06iAE71,TE72..CP197908-198307

DARK BROWN,BROWN

main64731-12901-01iAE71,TE72..LB197908-198307

BLACK,BLACK

main64731-12901-04iAE71,TE72..LB197908-198307

BLUE,BLUE

main64731-12901-06iAE71,TE72..LB197908-198307

DARK BROWN,BROWN

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10005-01×11iAE71,TE72..CP,LB197908-198307

BLACK,BLACK

main90467-10005-04×11iAE71,TE72..CP,LB197908-198307

BLUE,BLUE

main90467-10005-16×11iAE71,TE72..CP,LB197908-198307

DARK BROWN,BROWN

64759ACOVER, SHOCK ABSORBER HEAD

main64759-14010-11×2iAE71,TE72..CP,LB197908-198307

BLACK,BLACK

main64759-14010-14×2iAE71,TE72..CP,LB197908-198307

BLUE,BLUE

main64759-14010-46×2iAE71,TE72..CP,LB197908-198307

DARK BROWN,BROWN

64760PANEL ASSY, DECK SIDE TRIM, LH

main64732-12900-01iAE71,TE72..CP197908-198307

BLACK,BLACK

main64732-12900-04iAE71,TE72..CP197908-198307

BLUE,BLUE

main64732-12900-06iAE71,TE72..CP197908-198307

DARK BROWN,BROWN

main64732-12901-01iAE71,TE72..LB197908-198307

BLACK,BLACK

main64732-12901-04iAE71,TE72..LB197908-198307

BLUE,BLUE

main64732-12901-06iAE71,TE72..LB197908-198307

DARK BROWN,BROWN

64770DCOVER ASSY, SPARE WHEEL

main64770-12010iAE71,TE72..CP,LB198008-198307

main64770-20030iTE72..CP,LB197908-198008

9011906099

main90119-06099

9015940122

main90159-40122

9016840012

main90168-40012

9018904025

main90189-04025

9018906017

main90189-06017

904670700801

main90467-0700801

904670700804

main90467-0700804

904670700806

main90467-0700806

9046715002

main90467-15002

9338116012

main93381-16012

9354054012

main93540-54012

29 parts on this diagram · 2 diagrams in section
