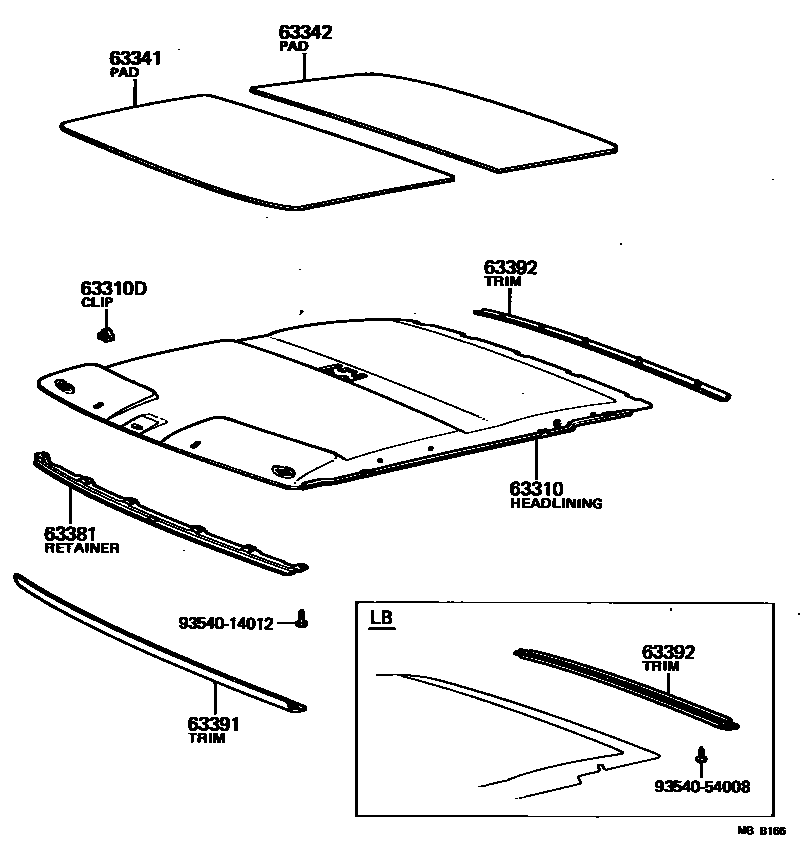

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63310HEADLINING ASSY, ROOF

main63310-12440-01iAE71,TE72..SED197908-198307

IVORY & BLACK,BLACK

main63310-12440-04iAE71,TE72..SED197908-198307

IVORY & BLUE,BLUE

main63310-12440-06iTE72..SED197908-198008

IVORY & LIGHT BROWN,BROWN

main63310-12440-16iTE72..SED198008-198108

IVORY & LIGHT BROWN,BROWN

main63310-12440-26iAE71,TE72..SED198108-198307

IVORY & D-BROWN,BROWN

main63310-12480-01iAE71,TE72..HT198101-198307

IVORY & BLACK,BLACK

main63310-12480-04iAE71,TE72..HT198101-198307

IVORY & BLUE,BLUE

main63310-12480-06iAE71,TE72..HT198101-198307

IVORY & D-BROWN,BROWN

main63310-12520-01iTE72..CP197908-198108

IVORY & BLACK,BLACK

main63310-12520-04iTE72..CP197908-198108

IVORY & BLUE,BLUE

main63310-12520-06iTE72..CP197908-198108

IVORY & D-BROWN,BROWN

main63310-12521-01iAE71,TE72..CP198108-198307

IVORY & BLACK,BLACK

main63310-12521-04iAE71,TE72..CP198108-198307

IVORY & BLUE,BLUE

main63310-12521-06iAE71,TE72..CP198108-198307

IVORY & D-BROWN,BROWN

main63310-12530-01iAE71,TE72..LB197908-198307

IVORY & BLACK,BLACK

main63310-12530-04iAE71,TE72..LB197908-198307

IVORY & BLUE,BLUE

main63310-12530-06iAE71,TE72..LB197908-198307

IVORY & D-BROWN,BROWN

main63310-12560-01iAE71,TE72..LB197908-198307

W/REMOVABLE ROOF,IVORY & BLACK,BLACK

main63310-12560-04iAE71,TE72..LB197908-198307

W/REMOVABLE ROOF,IVORY & BLUE,BLUE

main63310-12560-06iAE71,TE72..LB197908-198307

W/REMOVABLE ROOF,IVORY&D-BROWN,BROWN

main63310-12590-01iTE72..CP198008-198108

W/REMOVABLE ROOF,IVORY & BLACK,BLACK

main63310-12590-04iTE72..CP198008-198108

W/REMOVABLE ROOF,IVORY & BLUE,BLUE

main63310-12590-06iTE72..CP198008-198108

W/REMOVABLE ROOF,IVORY&D-BROWN,BROWN

main63310-12591-01iAE71,TE72..CP198108-198307

W/REMOVABLE ROOF,IVORY & BLACK,BLACK

main63310-12591-04iAE71,TE72..CP198108-198307

W/REMOVABLE ROOF,IVORY & BLUE,BLUE

main63310-12591-06iAE71,TE72..CP198108-198307

W/REMOVABLE ROOF,IVORY&D-BROWN,BROWN

main63310-13090-01iAE71,TE72..WG197908-198307

IVORY & BLACK,BLACK

main63310-13090-04iAE71,TE72..WG197908-198307

IVORY & BLUE,BLUE

main63310-13090-06iTE72..WG197908-198008

IVORY & LIGHT BROWN,BROWN

main63310-13090-16iTE72..WG198008-198108

IVORY & LIGHT BROWN,BROWN

main63310-13090-26iAE71,TE72..WG198108-198307

IVORY & D-BROWN,BROWN

63310DCLIP, ROOF HEADLINING

main63376-20010×6iTE72..LB197908-198004

W/REMOVABLE ROOF

main63395-12020×6iTE72..CP,LB197908-198005

63341PAD, ROOF SILENCER, NO.1

main63341-12070iAE71,TE72..HT,LB,SED,WG197908-198307

main63342-12030iAE71,TE72..CP197908-198307

63342PAD, ROOF SILENCER, NO.2

main63341-12070iAE71,TE72..SED197908-198307

930 X 530

main63342-12030iAE71,TE72..LB197910-198307

W/REMOVABLE ROOF

main63342-13070iAE71,TE72..SED197911-198307

930 X 550

main63343-12020iAE71,TE72..CP197908-198307

main63343-12030iAE71,TE72..LB197910-198307

main63343-12040iAE71,TE72..CP198008-198307

W/REMOVABLE ROOF

63381RETAINER, HEADLINING, FRONT

main63381-12030iAE71,TE72..SED197908-198307

main63381-12040iAE71,TE72..CP,HT,LB197908-198307

63391TRIM, ROOF HEADLINING, FRONT

main63391-12010-01iAE71,TE72..SED197908-198307

BLACK,BLACK

main63391-12010-04iAE71,TE72..SED197908-198307

BLUE,BLUE

main63391-12010-06iTE72..SED197908-198008

LIGHT BROWN,BROWN

main63391-12010-16iTE72..SED198008-198108

LIGHT BROWN,BROWN

main63391-12010-26iAE71,TE72..SED198108-198307

D-BROWN,BROWN

main63391-12020-01iAE71,TE72..CP,HT,LB197908-198307

BLACK,BLACK

main63391-12020-04iAE71,TE72..CP,HT,LB197908-198307

BLUE,BLUE

main63391-12020-06iAE71,TE72..CP,HT,LB197908-198307

D-BROWN,BROWN

main63391-13030-01iAE71,TE72..WG197908-198307

BLACK,BLACK

main63391-13030-04iAE71,TE72..WG197908-198307

BLUE,BLUE

main63391-13030-06iTE72..WG197908-198008

LIGHT BROWN,BROWN

main63391-13030-16iTE72..WG198008-198108

LIGHT BROWN,BROWN

main63391-13030-26iAE71,TE72..WG198108-198307

D-BROWN,BROWN

63392TRIM, ROOF HEADLINING, REAR

main63305-12010-01iAE71,TE72..SED197908-198307

BLACK,BLACK

main63305-12010-04iAE71,TE72..SED197908-198307

BLUE,BLUE

main63305-12010-06iTE72..SED197908-198008

LIGHT BROWN,BROWN

main63305-12010-16iTE72..SED198008-198108

LIGHT BROWN,BROWN

main63305-12010-26iAE71,TE72..SED198108-198307

D-BROWN,BROWN

main63305-12020-01iAE71,TE72..HT198101-198307

BLACK,BLACK

main63305-12020-04iAE71,TE72..HT198101-198307

BLUE,BLUE

main63305-12020-06iAE71,TE72..HT198101-198307

D-BROWN,BROWN

main63392-12090-01iAE71,TE72..CP197908-198307

BLACK,BLACK

main63392-12090-04iAE71,TE72..CP197908-198307

BLUE,BLUE

main63392-12090-06iAE71,TE72..CP197908-198307

D-BROWN,BROWN

main63392-12100-01iAE71,TE72..LB197908-198307

BLACK,BLACK

main63392-12100-04iAE71,TE72..LB197908-198307

BLUE,BLUE

main63392-12100-06iAE71,TE72..LB197908-198307

D-BROWN,BROWN

main63392-13020-01iAE71,TE72..WG197908-198307

BLACK,BLACK

main63392-13020-04iAE71,TE72..WG197908-198307

BLUE,BLUE

main63392-13020-06iTE72..WG197908-198008

LIGHT BROWN,BROWN

main63392-13020-16iAE71,TE72..WG198008-198307

LIGHT BROWN,BROWN

9354014012

main93540-14012

9354054008

main93540-54008

9 parts on this diagram · 4 diagrams in section
