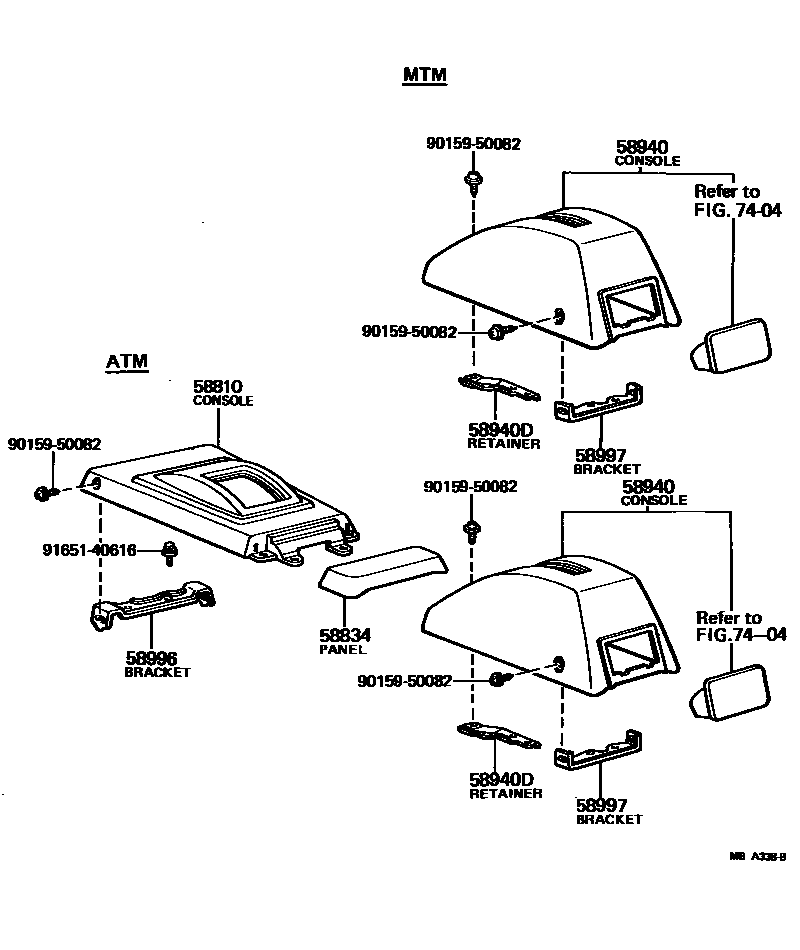

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

58810CONSOLE ASSY

main58811-12260-01iTE72..(CP,HT,LB)..MTM..USA197908-198108

BLACK,BLACK

sub58811-12260

main58811-12260-04iTE72..(CP,HT,LB)..MTM..USA197908-198108

BLUE,BLUE

sub58811-12260

main58811-12260-06iTE72..(CP,HT,LB)..MTM..USA197908-198108

DARK BROWN,BROWN

sub58811-12260

main58811-12270-01iTE72..(SED,WG)..3FC197908-198108

BLACK,BLACK

sub58811-12270

main58811-12270-04iTE72..(CP,HT,LB)..3FC197908-198108

BLUE,BLUE

sub58811-12270

main58811-12270-06iTE72..(CP,HT,LB)..3FC197908-198108

DARK BROWN,BROWN

sub58811-12270

main58811-12270-15iTE72..(SED,WG)..3FC197908-198108

BEIGE,BEIGE

sub58811-12270

main58811-12280-01iTE72..(CP,HT,LB)..MTM197908-198108

COLD SPEC,BLACK,BLACK

sub58811-12280

main58811-12280-04iTE72..(CP,HT,LB)..MTM197908-198108

COLD SPEC,BLUE,BLUE

sub58811-12280

main58811-12280-06iTE72..(CP,HT,LB)..MTM197908-198108

COLD SPEC,DARK BROWN,BROWN

sub58811-12280

main58811-12290-01iTE72..(CP,HT,LB)..3FC..USA197908-198108

W/RADIO,BLACK,BLACK

sub58811-12290

main58811-12290-04iTE72..(CP,HT,LB)..3FC..USA197908-198108

W/RADIO,BLUE,BLUE

sub58811-12290

main58811-12290-06iTE72..(CP,HT,LB)..3FC..USA197908-198108

W/RADIO,DARK BROWN,BROWN

sub58811-12290

main58811-12300-01iTE72..(CP,HT,LB)..3FC197908-198108

W/RADIO,COLD SPEC,BLACK,BLACK

sub58811-12300

main58811-12300-04iTE72..(CP,HT,LB)..3FC197908-198108

W/RADIO,COLD SPEC,BLUE,BLUE

sub58811-12300

main58811-12300-06iTE72..(CP,HT,LB)..3FC197908-198108

W/RADIO,COLD SPEC,DARK BROWN,BROWN

sub58811-12300

main58811-12310-01iAE71,TE72..(CP,HT,LB)..5F198108-198307

BLACK,BLACK

main58811-12310-04iAE71,TE72..(CP,HT,LB)..5F198108-198307

BLUE,BLUE

main58811-12310-06iAE71,TE72..(CP,HT,LB)..5F198108-198307

DARK BROWN,BROWN

main58811-12320-01iAE71,TE72..ATM198108-198307

BLACK,BLACK

main58811-12320-04iAE71,TE72..ATM198108-198307

BLUE,BLUE

main58811-12320-06iAE71,TE72..ATM198108-198307

DARK BROWN,BROWN

58834PANEL, CONSOLE END

main58923-12010-01iAE71,TE72..(CP,HT,LB)..DX197908-198307

BLACK,BLACK

sub58923-12010

main58923-12010-04iAE71,TE72..(SED,WG)..ATM197908-198307

BLUE,BLUE

sub58923-12010

main58923-12010-06iAE71,TE72..(SED,WG)..ATM197908-198307

DARK BROWN,BROWN

sub58923-12010

main58923-12010-15iTE72..(SED,WG)..3FC197908-198108

BEIGE,BEIGE

sub58923-12010

58940CONSOLE ASSY, REAR

main58901-12010-01iAE71,TE72..DX,STD197908-198307

BLACK,BLACK

sub58901-12010

main58901-12010-04iAE71,TE72..DX,STD197908-198307

BLUE,BLUE

sub58901-12010

main58901-12010-05iTE72..SED,WG197908-198108

BEIGE,BEIGE

sub58901-12010

main58901-12010-16iAE71,TE72..DX,STD197908-198307

DARK BROWN,BROWN

sub58901-12010

main58901-12020-01iTE72..SR5197908-198208

BLACK,BLACK

sub58901-12020

main58901-12020-01iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

SR-5 PACKAGE,BLACK,BLACK

sub58901-12020

main58901-12020-04iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

SR-5 PACKAGE,BLUE,BLUE

sub58901-12020

main58901-12020-04iTE72..SR5197908-198208

BLUE,BLUE

sub58901-12020

main58901-12020-06iTE72..SR5197908-198208

DARK BROWN,BROWN

sub58901-12020

main58901-12020-06iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

SR-5 PACKAGE,DARK BROWN,BROWN

sub58901-12020

58940DRETAINER, PARKING BRAKE HOLE COVER

main58943-12020iAE71,TE72..DX,STD197908-198307

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12010iAE71,TE72..(SED,WG)..ATM197908-198307

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-12010iTE72..SR5197908-198208

main58997-12010iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

SR-5 PACKAGE

main58997-12020iAE71,TE72..DX,STD197908-198307

7404

9015950082

main90159-50082

9165140616

main91651-40616

9 parts on this diagram · 4 diagrams in section
