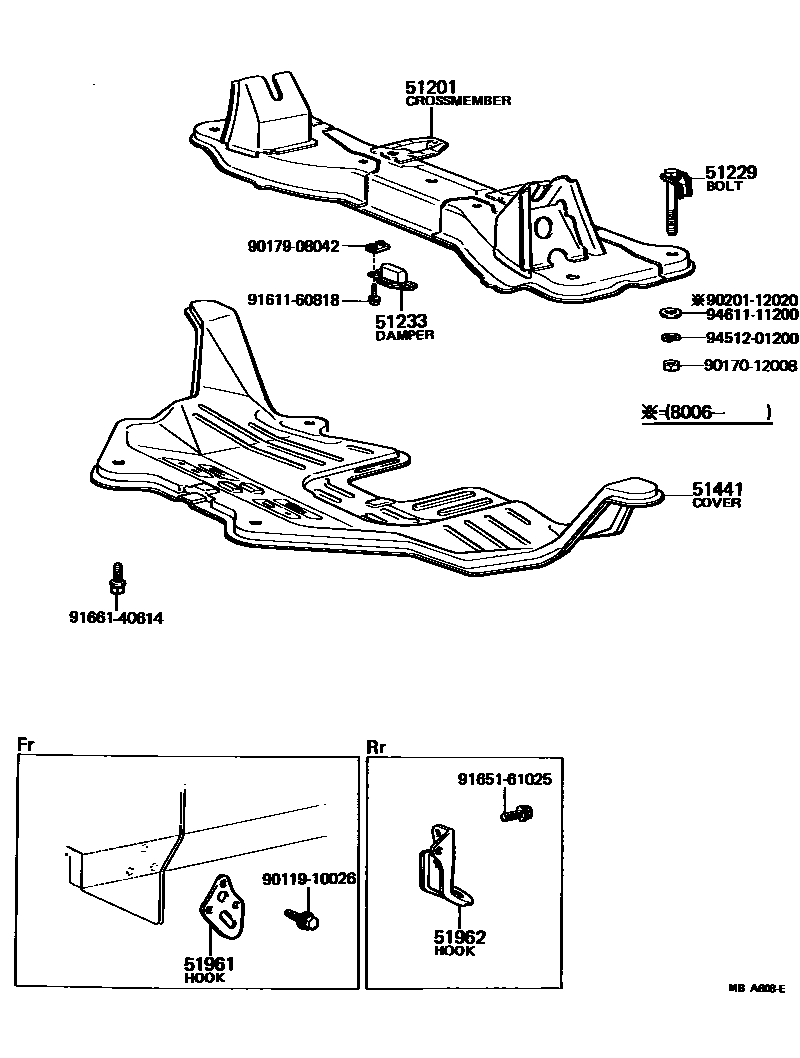

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12130iTE72197908-198208

main51201-12190iAE71198208-198307

51229BOLT, SUSPENSION MEMBER SET

main51296-12011×4iAE71,TE72197908-198307

51233DUMPER, FRONT SUSPENSION MEMBER

main51204-12010iAE71,TE72198008-198307

51441COVER, ENGINE UNDER, NO.1

main51405-12030iAE71198208-198307

main51405-12050iTE72197908-198208

51961HOOK, NO.1

main51963-12050×2iAE71,TE72197908-198307

51962HOOK, NO.2

main51967-12020iAE71,TE72..CP,HT,LB,SED197908-198307

RH

main51968-12010iAE71,TE72..CP,HT,LB,SED197908-198307

LH

9011910026

main90119-10026

9017012008

main90170-12008

9017908042

main90179-08042

9020112020

main90201-12020

9161160818

main91611-60818

9165161025

main91651-61025

9166140614

main91661-40614

9451201200

main94512-01200

9461111200

main94611-11200

15 parts on this diagram · 1 diagram in section
