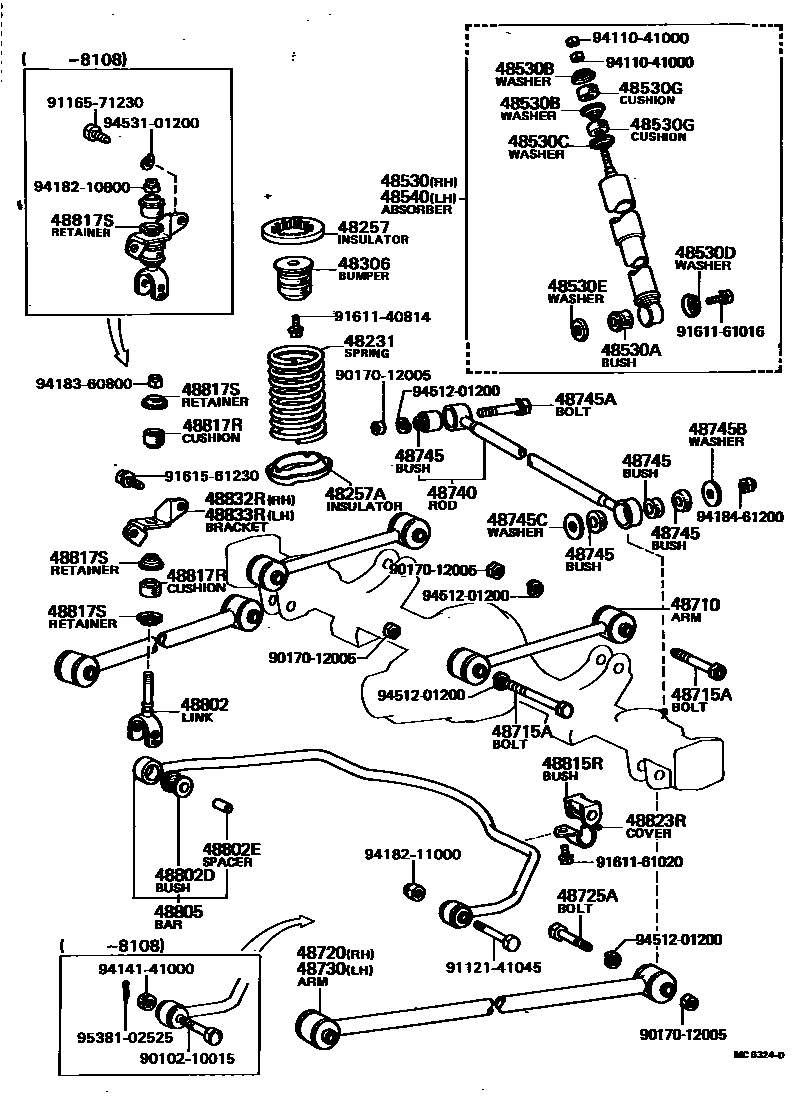

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48231SPRING, COIL, REAR

main48231-12010×2iTE72..SED..2D..CND197908-198208

main48231-12080×2iTE72..CP,LB197908-198208

main48231-12150×2iTE72..(HT,SED)..USA; TE72..SED..4D..CND197908-198208

main48231-12190×2iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

48257INSULATOR, REAR COIL SPRING

main48257-12020×2iAE71,TE72..CP,HT,LB,SED197908-198307

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-12010×2iAE71,TE72..CP,HT,LB,SED197908-198307

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030×2iAE71,TE72..CP,HT,LB,SED197908-198307

main48341-19025×2iAE71,TE72..WG197908-198307

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19586iTE72..CP,HT,LB,SED197908-198108

main48531-19596iAE71,TE72..CP,LB198108-198307

main48531-19606iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

main48531-19635iTE72..WG197908-198108

main48531-19636iTE72..WG198108-198208

main48531-19637iAE71..WG198208-198307

main48531-19666iAE71,TE72..HT,SED198108-198307

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×2iAE71,TE72197908-198307

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002×4iAE71,TE72197908-198307

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02007×2iAE71,TE72197908-198307

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-02047iAE71,TE72..CP,HT,LB,SED197908-198307

RH

main90948-03012iAE71,TE72..CP,HT,LB,SED; AE71,TE72..WG197908-198307

LH

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iAE71,TE72197908-198307

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01003×4iTE72197908-198010

main90948-01018×4iTE72..CP,HT,LB,SED198010-198105

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19586iTE72..CP,HT,LB,SED197908-198108

main48531-19596iAE71,TE72..CP,LB198108-198307

main48531-19606iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

main48531-19635iTE72..WG197908-198108

main48531-19636iTE72..WG198108-198208

main48531-19637iAE71..WG198208-198307

main48531-19666iAE71,TE72..HT,SED198108-198307

48710ARM ASSY, UPPER CONTROL

main48710-12010×2iTE72..SED..CND197908-198108

main48710-12020×2iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

main48710-12030×2iTE72..(HT,SED)..USA197908-198108

main48710-12031×2iAE71,TE72..HT,SED198108-198307

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-12044×2iAE71,TE72..CP,HT,LB,SED197908-198307

L=77

main90101-12045×2iAE71,TE72..CP,HT,LB,SED197908-198307

L=149

48720ARM ASSY, LOWER CONTROL, RH

main48720-12020iAE71,TE72..CP,HT,LB,SED197908-198307

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-12044×4iAE71,TE72..CP,HT,LB,SED197908-198307

48730ARM ASSY, LOWER CONTROL, LH

main48720-12020iAE71,TE72..CP,HT,LB,SED197908-198307

48740ROD ASSY, REAR LATERAL CONTROL

main48740-12010iTE72..CP,LB,SED197908-198004

main48740-12021iAE71,TE72..CP,HT,LB,SED198004-198307

48745BUSH, LATERAL CONTROL ROD

main48706-14010iAE71,TE72..CP,HT,LB,SED197908-198307

ROD X BODY

main90385-20001×2iAE71,TE72..CP,HT,LB,SED197908-198307

L=15,ROD X HOUSING

main90386-20001iAE71,TE72..CP,HT,LB,SED197908-198307

L=12,ROD X HOUSING

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iAE71,TE72..CP,HT,LB,SED197908-198307

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iAE71,TE72..CP,HT,LB,SED197908-198307

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iAE71,TE72..CP,HT,LB,SED197908-198307

48802LINK SUB-ASSY, STABILIZER

main48802-14020×2iTE72..CP..SR5..USA198008-198108

main48802-14040×2iTE72..CP..SR5..USA198108-198208

48802DBUSH, STABILIZER LINK

main90385-11021×2iTE72..CP..SR5..USA198008-198208

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iTE72..CP..SR5..USA198008-198208

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14010iTE72..CP..SR5..USA198008-198208

main48805-14090iAE71..(CP,HT)..USA198208-198307

D=13,SPORTS PACKAGE

48815RBUSH, STABILIZER(FOR REAR)

main48815-14050×2iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

main48815-22020×2iTE72..CP..SR5..USA198008-198208

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iTE72..CP..SR5..USA198108-198208

main48817-30010×4iTE72..CP..SR5..USA198008-198108

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02015×4iTE72..CP..SR5..USA198008-198108

T=1.2

main90948-02024×4iTE72..CP..SR5..USA198108-198208

T=1.2

main90948-02025×2iTE72..CP..SR5..USA198108-198208

T=1.0

main90948-02032×4iTE72..CP..SR5..USA198008-198108

T=1.6

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-22020iAE71..(CP,HT)..USA198208-198307

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-12010iTE72..CP..SR5..USA198008-198108

main48832-12011iTE72..CP..SR5..USA198108-198208

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-12010iTE72..CP..SR5..USA198008-198108

main48833-12011iAE71..(CP,HT)..USA198208-198307

9010210015

main90102-10015

9017012005

main90170-12005

9112141045

main91121-41045

9116571230

main91165-71230

9161140814

main91611-40814

9161161016

main91611-61016

9161161020

main91611-61020

9161561230

main91615-61230

9411041000

main94110-41000

9414141000

main94141-41000

9418210800

main94182-10800

9418211000

main94182-11000

9418360800

main94183-60800

9418461200

main94184-61200

9451201200

main94512-01200

9453101200

main94531-01200

9538102525

main95381-02525

49 parts on this diagram · 3 diagrams in section
