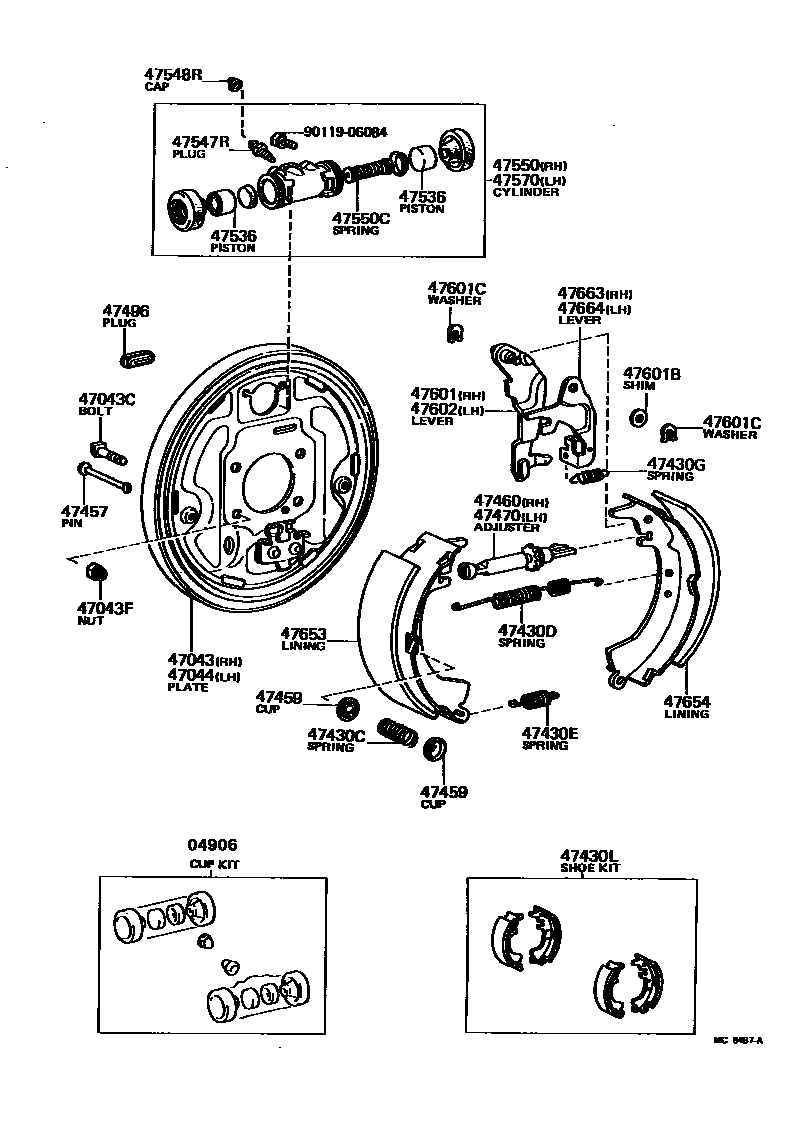

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iAE71,TE72197908-198307

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-13010iAE71,TE72..WG197908-198307

main47043-14011iAE71,TE72..CP,HT,LB,SED197908-198307

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iAE71,TE72..WG197908-198307

*10-1.25PX37-15

main42184-22020×8iAE71,TE72..CP,HT,LB,SED197908-198307

*10-1.25PX26-10

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iAE71,TE72197908-198307

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-13010iAE71,TE72..WG197908-198307

main47044-14011iAE71,TE72..CP,HT,LB,SED197908-198307

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iAE71,TE72197908-198307

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iAE71,TE72197908-198307

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iAE71,TE72197908-198307

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iAE71,TE72197908-198307

47430LSHOE KIT, REAR BRAKE

main04495-14010iAE71,TE72197908-198307

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iAE71,TE72197908-198307

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iAE71,TE72197908-198307

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iAE71,TE72197908-198307

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iAE71,TE72197908-198307

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iAE71,TE72197908-198307

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22040×4iAE71,TE72197908-198307

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iAE71,TE72197908-198307

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iAE71,TE72197908-198307

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19135iAE71,TE72197908-198307

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020×2iAE71,TE72197908-198307

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19135iAE71,TE72197908-198307

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iAE71,TE72197908-198307

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iAE71,TE72197908-198307

T=0.3,T=0.3

main90564-08151×2iAE71,TE72197908-198307

T=0.6,T=0.6

main90564-08152×2iAE71,TE72197908-198307

T=0.9,T=0.9

main90564-08172×2iAE71,TE72197908-198307

T=0.2,T=0.2

main90564-08173×2iAE71,TE72197908-198307

T=0.4,T=0.4

main90564-08174×2iAE71,TE72197908-198307

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iAE71,TE72197908-198307

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iAE71,TE72197908-198307

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-14010×2iAE71,TE72197908-198307

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-14010×2iAE71,TE72197908-198307

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iAE71,TE72197908-198307

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iAE71,TE72197908-198307

9011906084

main90119-06084

30 parts on this diagram · 1 diagram in section
