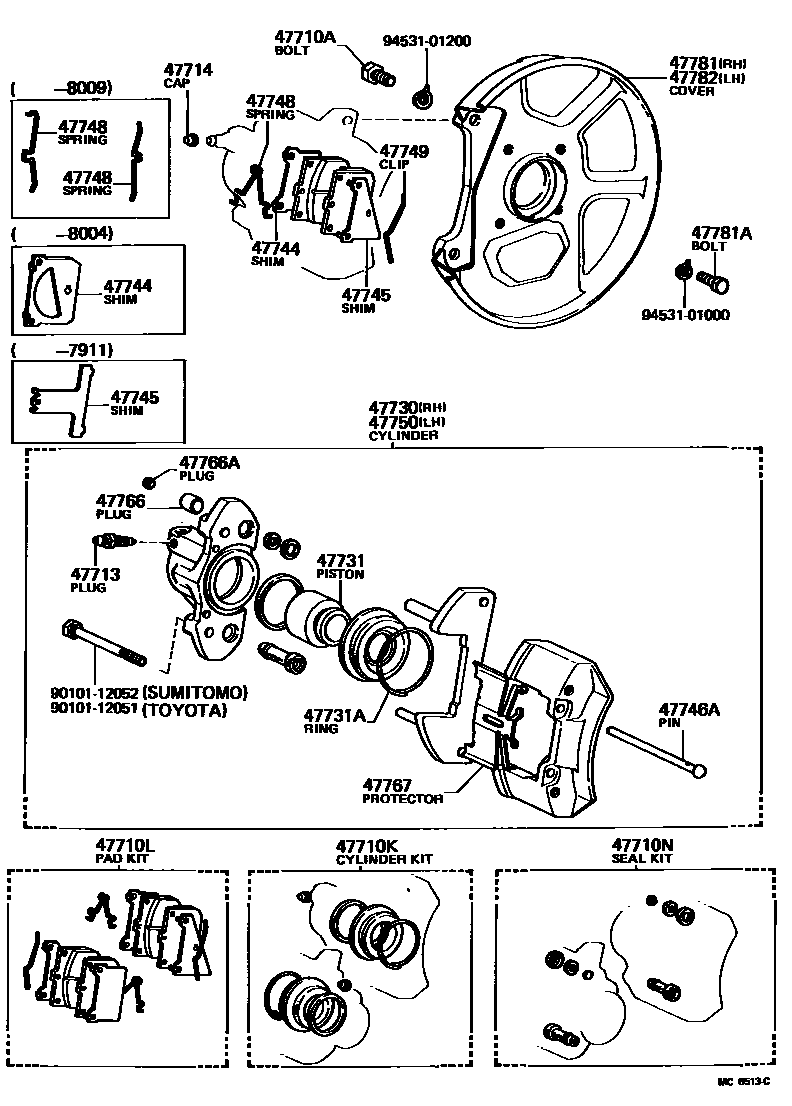

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064iAE71,TE72198010-198307

main91161-71220iTE72197908-198010

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-12070iTE72..LB,SED,WG197908-198307

SUMITOMO

main04479-12080iAE71,TE72197908-198307

TOYOTA

47710LPAD KIT, DISC BRAKE, FRONT

main04491-12140iTE72197908-198008

main04491-12150iTE72198008-198009

main04491-12151iTE72198009-198307

47710NSEAL KIT, DISC BRAKE, FRONT

main04498-12010iTE72..LB,SED,WG197908-198307

SUMITOMO

main04498-12020iAE71,TE72197908-198307

TOYOTA

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iTE72..LB,SED,WG197908-198307

SUMITOMO

main47547-20010iAE71,TE72197908-198307

TOYOTA

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE71,TE72197908-198307

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12110iTE72..LB,SED,WG197908-198009

SUMITOMO

main47730-12111iTE72..LB,SED,WG198009-198307

SUMITOMO

main47730-12140iTE72197908-198009

TOYOTA

main47730-12141iAE71,TE72198009-198307

TOYOTA

47731PISTON, FRONT DISC BRAKE

main47731-12060iAE71,TE72197908-198307

TOYOTA

main47731-12070iTE72..LB,SED,WG197908-198307

SUMITOMO

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-60002iAE71,TE72197908-198307

TOYOTA

main90522-60003iTE72..LB,SED,WG197908-198307

SUMITOMO

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47735-12010iTE72197911-198004

LH

main47744-12020iAE71,TE72198004-198307

main47744-12030iTE72197911-198004

RH

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-12010iAE71,TE72197911-198307

LH

main47745-12020iTE72197908-197911

main47745-12030iAE71,TE72197911-198307

RH

47746APIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)

main90240-06133iTE72..LB,SED,WG197908-198307

SUMITOMO

main90240-06161iAE71,TE72197908-198307

TOYOTA

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-12010iTE72..LB,SED,WG197908-198009

OUTER,SUMITOMO

main47748-12020iTE72..LB,SED,WG197908-198009

INNER,SUMITOMO

main47748-12030iTE72197908-198009

OUTER,TOYOTA

main47748-12040iTE72197908-198009

INNER,TOYOTA

main47748-12070iAE71,TE72..SED,WG198009-198307

SUMITOMO

main47748-12080iAE71,TE72198009-198307

TOYOTA

47749CLIP, PIN HOLD

main47749-12010iTE72..LB,SED,WG198009-198307

SUMITOMO

main47749-12020iAE71,TE72198009-198307

TOYOTA

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12110iTE72..LB,SED,WG197908-198009

SUMITOMO

main47750-12111iTE72..LB,SED,WG198009-198307

SUMITOMO

main47750-12140iTE72197908-198009

TOYOTA

main47750-12141iAE71,TE72198009-198307

TOYOTA

47766CAP, TORQUE PLATE PIN, FRONT(MAIN PIN)

main47766-12010iAE71,TE72197908-198307

47766APLUG, HOLE(FOR TORQUE PLATE FRONT PIN CAP)

main90950-01121iAE71,TE72..SED,WG197908-198307

SUMITOMO

main90950-01186iAE71,TE72197908-198307

TOYOTA

47767PROTECTOR, DISC BRAKE PAD

main47767-12030iTE72..LB,SED,WG197908-198307

SUMITOMO

main47767-12040iAE71,TE72197908-198307

TOYOTA

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-12100iAE71,TE72197908-198307

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main91111-71020iAE71,TE72197908-198307

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-12100iAE71,TE72197908-198307

9010112051

main90101-12051

9010112052

main90101-12052

9453101000

main94531-01000

9453101200

main94531-01200

25 parts on this diagram · 2 diagrams in section
