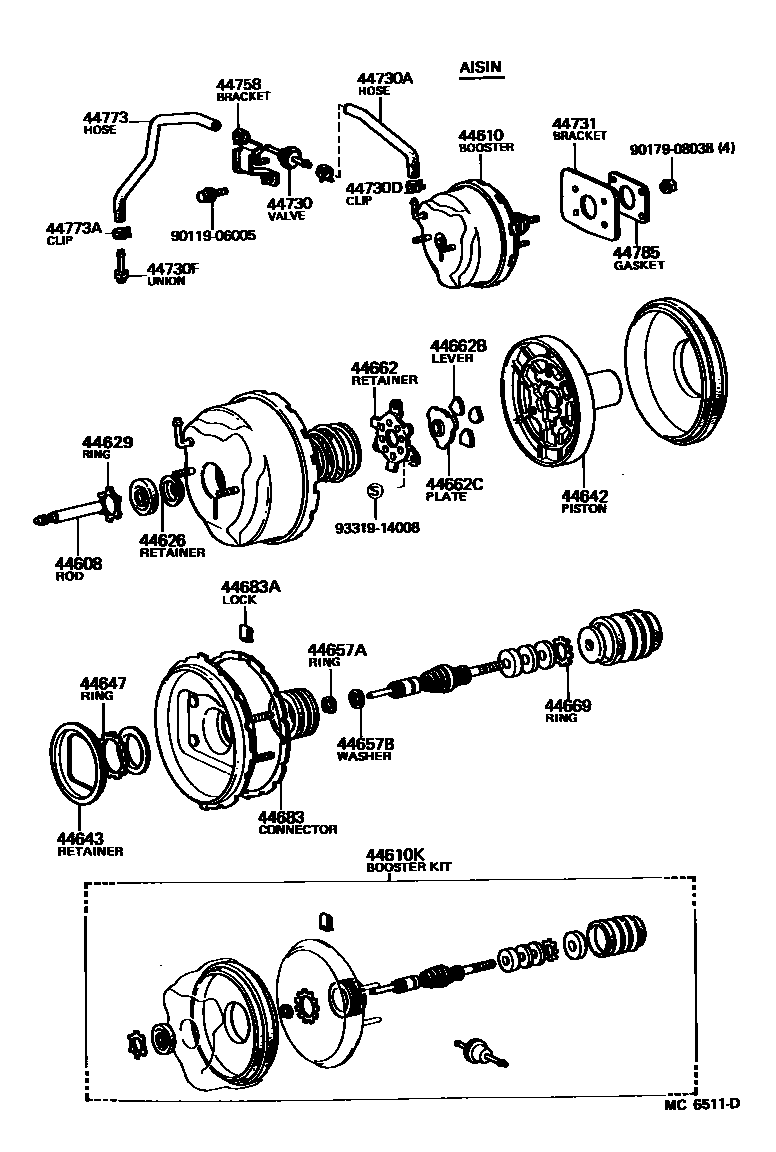

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0005 1 0006 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-32010iAE71..CP,HT,LB,WG198208-198307

AISIN

main44606-35100iTE72197908-198208

AISIN

main44608-14040iTE72197908-198208

JKC

main44608-32020iAE71..CP,HT,LB,WG198208-198307

JKC

44610BOOSTER ASSY, BRAKE

main44610-12280iAE71..SED198208-198307

main44610-12350iAE71..CP,HT,LB,WG198208-198307

44610KBOOSTER KIT, BRAKE

main04443-12160iAE71..SED198208-198307

AISIN

main04443-12180iAE71..SED198208-198307

JKC

main04443-12210iAE71..CP,HT,LB,WG198208-198307

AISIN

main04443-12220iAE71..CP,HT,LB,WG198208-198307

JKC

44626RETAINER, BOOSTER ROD CUP

main44626-60010iAE71..SED198208-198307

AISIN

44629RING, CIRCULAR INTERNAL

main44628-28120iAE71..CP,HT,LB,WG198208-198307

AISIN

main44628-60010iTE72197908-198208

AISIN

44642PISTON, BRAKE BOOSTER

main44642-12120iAE71..SED198208-198307

JKC

main44642-14170iTE72197908-198208

AISIN

main44642-16050iAE71..CP,HT,LB,WG198208-198307

AISIN

44643RETAINER, DIAPHRAGM

main44643-60010iTE72197908-198208

AISIN

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iTE72197908-198208

AISIN

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iTE72197908-198208

AISIN

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iTE72197908-198208

AISIN

44662RETAINER, REACTION, NO.1

main44662-35100iTE72197908-198208

AISIN

44662BLEVER, REACTION

main44661-35100×3iTE72197908-198208

AISIN

44662CPLATE, REACTION, NO.1

main44607-20470iTE72197908-198208

AISIN

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iTE72197908-198208

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-20150iTE72197908-198208

AISIN

44683ALOCK, CONNECTOR

main44683-20100iTE72197908-198208

AISIN

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iAE71,TE72197908-198307

44730AHOSE, VACUUM, NO.1

main44772-12130iTE72197908-198208

main44772-12150iAE71..SED198208-198307

44730DCLIP(FOR VACUUM HOSE, NO.1)

main90467-16001×2iTE72198003-198007

main90467-16002×2iAE71,TE72198007-198307

main90467-16141×2iTE72197908-198003

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51028iAE71198208-198307

main90404-51237iTE72197908-198208

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-12030iAE71..CP,HT,LB,WG198208-198307

main44731-14020iAE71..SED198208-198307

44758BRACKET, VACUUM CHECK VALVE

main44758-12150iTE72197908-198208

main44758-12180iAE71198208-198307

44773HOSE, VACUUM, NO.2

main44773-12190iTE72197908-198208

main44773-12240iAE71198208-198307

44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)

main90467-16001iTE72198003-198007

main90467-16002iAE71,TE72198007-198307

main90467-16141iTE72197908-198003

44785GASKET, BRAKE BOOSTER

main44785-14010×2iAE71,TE72197908-198307

9011906005

main90119-06005

9017908038

main90179-08038

9331914008

main93319-14008

28 parts on this diagram · 4 diagrams in section
