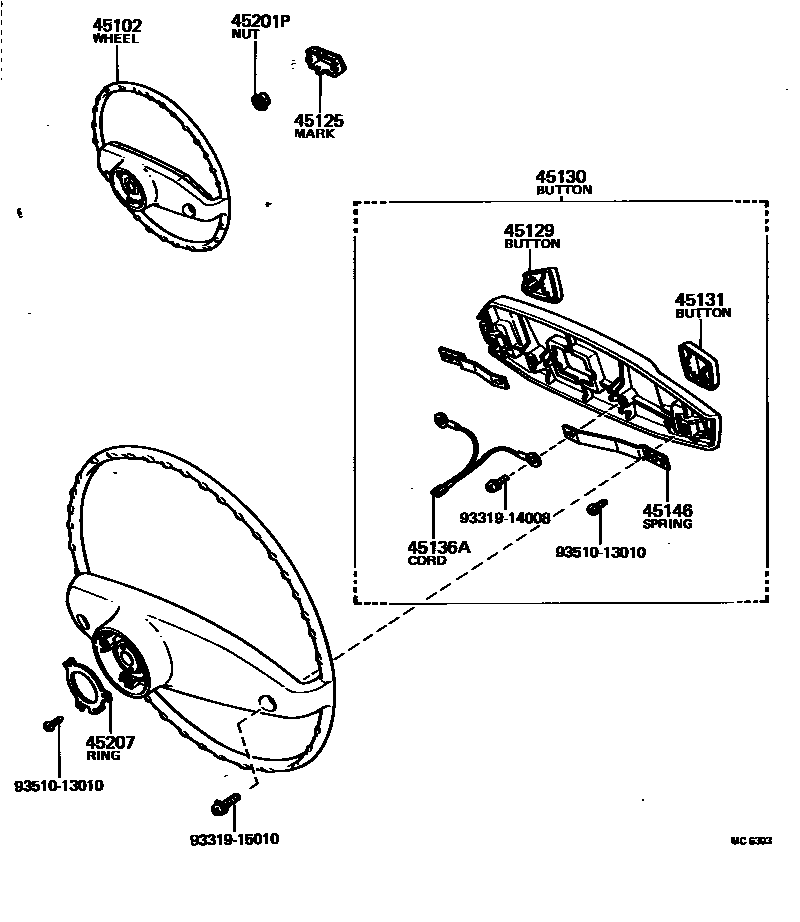

STEERING WHEEL

0001 1 0002 1 0003 1 0005 1

45102WHEEL SUB-ASSY, STEERING

main45100-12133iTE72..STD197908-198108

BLACK

main45100-12250-01iTE72..SR5197908-198108

BLACK,BLACK

main45100-12250-04iTE72..SR5197908-198108

BLUE,BLUE

main45100-12250-06iTE72..SR5197908-198108

DARK BROWN,BROWN

main45100-12280-01iTE72..DX197908-198108

BLACK,BLACK

main45100-12280-04iTE72..DX197908-198108

BLUE,BLUE

main45100-12280-05iTE72..(SED,WG)..DX197908-198108

BEIGE,BEIGE

main45100-12280-06iTE72..(CP,HT,LB)..DX197908-198108

DARK BROWN,BROWN

main45100-12320iAE71,TE72..STD198108-198307

BLACK

main45100-12340-01iAE71,TE72..DX198108-198307

BLACK,BLACK

main45100-12340-04iAE71,TE72..DX198108-198307

BLUE,BLUE

main45100-12340-06iAE71,TE72..DX198108-198307

DARK BROWN,BROWN

main45100-12350-01iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

URETHANE,BLACK,BLACK

main45100-12350-04iTE72..SR5198108-198208

URETHANE,BLUE,BLUE

main45100-12350-06iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

URETHANE,DARK BROWN,BROWN

main45100-12370-11iAE71..(CP,HT,LB)..(4FC,5F)..USA198208-198307

LEATHER,BLACK,BLACK

main45100-12370-14iTE72..SR5198108-198208

LEATHER,BLUE,BLUE

main45100-12370-16iTE72..SR5198108-198208

LEATHER,DARK BROWN,BROWN

45125MARK, STEERING WHEEL PAD

main45125-12170iTE72..STD197908-198108

BLACK

main45125-12190-01iTE72..DX197908-198108

BLACK,BLACK

main45125-12190-04iTE72..DX197908-198108

BLUE,BLUE

main45125-12190-05iTE72..(SED,WG)..DX197908-198108

BEIGE,BEIGE

main45125-12190-06iTE72..(CP,HT,LB)..DX197908-198108

DARK BROWN,BROWN

main45125-12210-01iTE72..SR5197908-198108

BLACK,BLACK

main45125-12210-04iTE72..SR5197908-198108

BLUE,BLUE

main45125-12210-06iTE72..SR5197908-198108

DARK BROWN,BROWN

main45125-12300-01iTE72..SR5198108-198208

WHEEL=LEATHER,BLACK,BLACK

main45125-12300-04iTE72..SR5198108-198208

WHEEL=LEATHER,BLUE,BLUE

main45125-12300-06iAE71,TE72..DX198108-198307

DARK BROWN,BROWN

main45125-12320-01iTE72..SR5198108-198208

WHEEL=URETHANE,BLACK,BLACK

main45125-12320-04iTE72..SR5198108-198208

WHEEL=URETHANE,BLUE,BLUE

main45125-12320-06iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

WHEEL=URETHANE,DARK BROWN,BROWN

main45125-12340iAE71,TE72..STD198108-198307

BLACK

45129BUTTON, HORN, NO.2

main45131-12111iTE72..STD197908-198108

main45131-12140iTE72..SR5198108-198208

WHEEL=LEATHER

main45131-12150iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

WHEEL=URETHANE

main45131-12170iAE71,TE72..STD198108-198307

45130BUTTON ASSY, HORN

main45130-12122-01iTE72..STD197908-198108

BLACK,BLACK

main45130-12210-01iTE72..DX197908-198108

BLACK,BLACK

main45130-12210-04iTE72..DX197908-198108

BLUE,BLUE

main45130-12210-05iTE72..(SED,WG)..DX197908-198108

BEIGE,BEIGE

main45130-12210-06iTE72..(CP,HT,LB)..DX197908-198108

DARK BROWN,BROWN

main45130-12211-01iAE71,TE72..DX,SR5198108-198307

BLACK,BLACK

main45130-12211-04iAE71,TE72..DX,SR5198108-198307

BLUE,BLUE

main45130-12211-06iAE71,TE72..DX,SR5198108-198307

DARK BROWN,BROWN

main45130-12230iAE71,TE72..STD198108-198307

BLACK

45131BUTTON, HORN, NO.1

main45129-12030iTE72..STD197908-198108

main45129-12040iTE72..SR5198108-198208

WHEEL=LEATHER

main45129-12050iTE72..SR5197908-198208

WHEEL=URETHANE

main45129-12070iAE71,TE72..STD198108-198307

45136PLATE, HORN BUTTON CONTACT

main45136-12090×2iTE72..SR5198108-198208

WHEEL=LEATHER

main45136-12100×2iTE72..SR5197908-198208

WHEEL=URETHANE

45136ACORD(FOR HORN CONTACT RING)

main90945-02026iTE72..DX,STD197908-198108

main90945-02040iTE72..STD198108-198112

main90945-02042iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

WHEEL=URETHANE

main90945-02061iAE71,TE72..STD198112-198307

45146SPRING, HORN BUTTON CONTACT

main45146-12021×2iTE72..STD197908-198108

main45146-12060×2iTE72..SR5198108-198208

WHEEL=LEATER

main45146-12070×2iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

WHEEL=URETHANE

main45146-12080×2iAE71,TE72..STD198108-198307

45201PNUT, STEERING WHEEL SET

main90179-12086iAE71,TE72197908-198307

45207RING, HORN CONTACT

main45176-14030iTE72..SR5197908-198208

WHEEL=URETHANE

main45176-20030iTE72..SR5198108-198208

WHEEL=LEATHER

9331914008

main93319-14008

9331915010

main93319-15010

9351013010

main93510-13010

13 parts on this diagram · 4 diagrams in section
