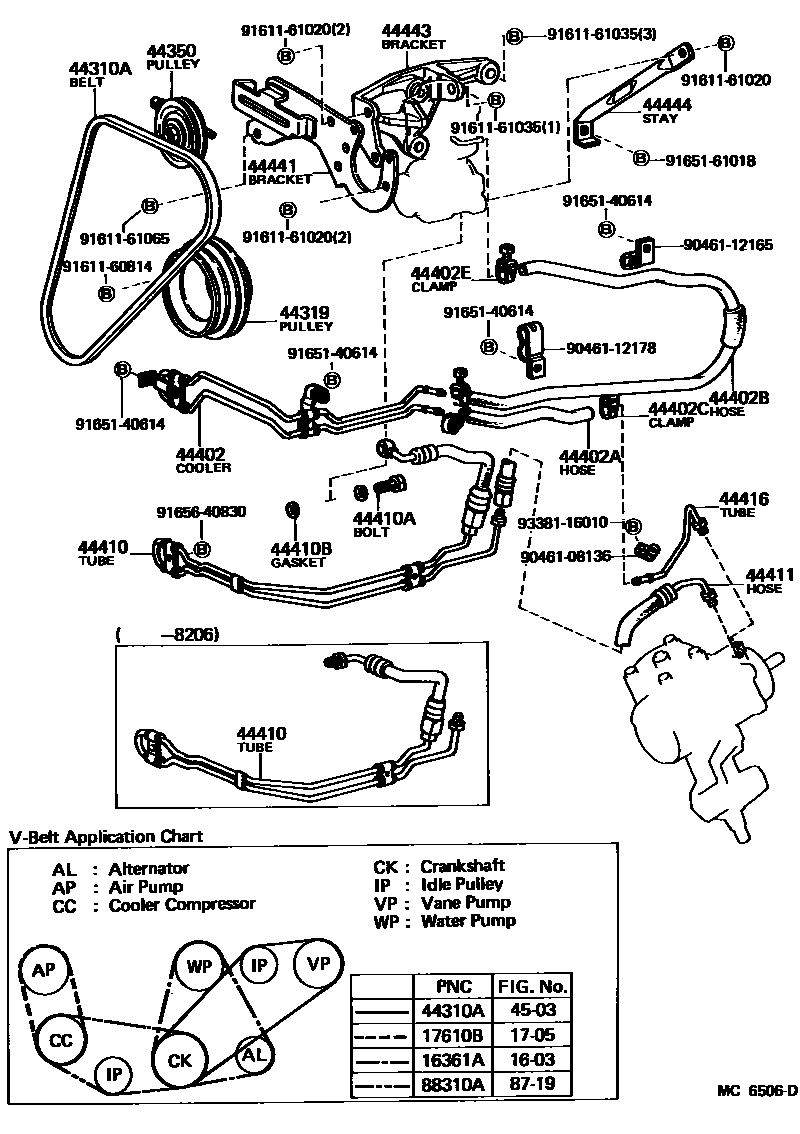

POWER STEERING TUBE

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02117i4AC..AE71..USA198208-198307

W/COOLER

main90916-02126i4AC..AE71198208-198307

main99331-10885i3TC..TE72197908-198208

1705AIR PUMP

→ Go to FIG 17-05

17610BBELT, V(FOR AIR PUMP)

main99332-10765i3TC..TE72..USA198008-198208

W/COOLER

main99332-10815i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

44310ABELT, V(FOR VANE PUMP)

main99332-00805iAE71..DX198208-198307

main99332-11080iTE72..3FC,4FC,5F197908-198208

L=1080

44319PULLEY, VANE PUMP DRIVE

main13477-18020iTE72..3FC,4FC,5F197908-198208

main44319-12011iAE71..DX198208-198307

44350PULLEY ASSY, POWER STEERING IDLE

main44350-12020iTE72..3FC,4FC,5F197908-198208

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-12010iTE72..3FC,4FC,5F197908-198208

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18067iTE72..3FC,4FC,5F197908-198208

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90447-18003iTE72..3FC,4FC,5F197908-198208

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×2iTE72..3FC,4FC,5F197908-198208

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iTE72..3FC,4FC,5F197908-198208

44410TUBE ASSY, PRESSURE FEED

main44410-12020iTE72..3FC,5F197908-198008

main44410-12021iTE72..3FC,4FC,5F198008-198206

main44410-12022iTE72..3FC,4FC,5F198206-198208

main44410-12030iAE71..DX198208-198307

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16005iTE72..3FC,4FC,5F198206-198208

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242×2iTE72..3FC,4FC,5F198206-198208

44411HOSE, PRESSURE FEED

main44415-12020iTE72..3FC,4FC,5F197908-198208

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12010iTE72..3FC,4FC,5F197908-198208

main44416-12030iAE71..DX198208-198307

44441BRACKET, PUMP, FRONT

main44441-12010iTE72..3FC,4FC,5F197908-198208

44443BRACKET, PUMP

main44443-12010iTE72..3FC,4FC,5F197908-198208

main44443-12021iAE71..DX198208-198307

44444STAY, PUMP, REAR

main44444-12010iTE72..3FC,4FC,5F197908-198208

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10860iAE71..DX..USA198208-198307

L=860

main99332-10965iTE72..USA197908-198008

9046108136

main90461-08136

9046112165

main90461-12165

9046112178

main90461-12178

9161160814

main91611-60814

9161161020

main91611-61020

9161161035

main91611-61035

9161161065

main91611-61065

9165140614

main91651-40614

9165161018

main91651-61018

9165640830

main91656-40830

9338116010

main93381-16010

34 parts on this diagram · 2 diagrams in section
