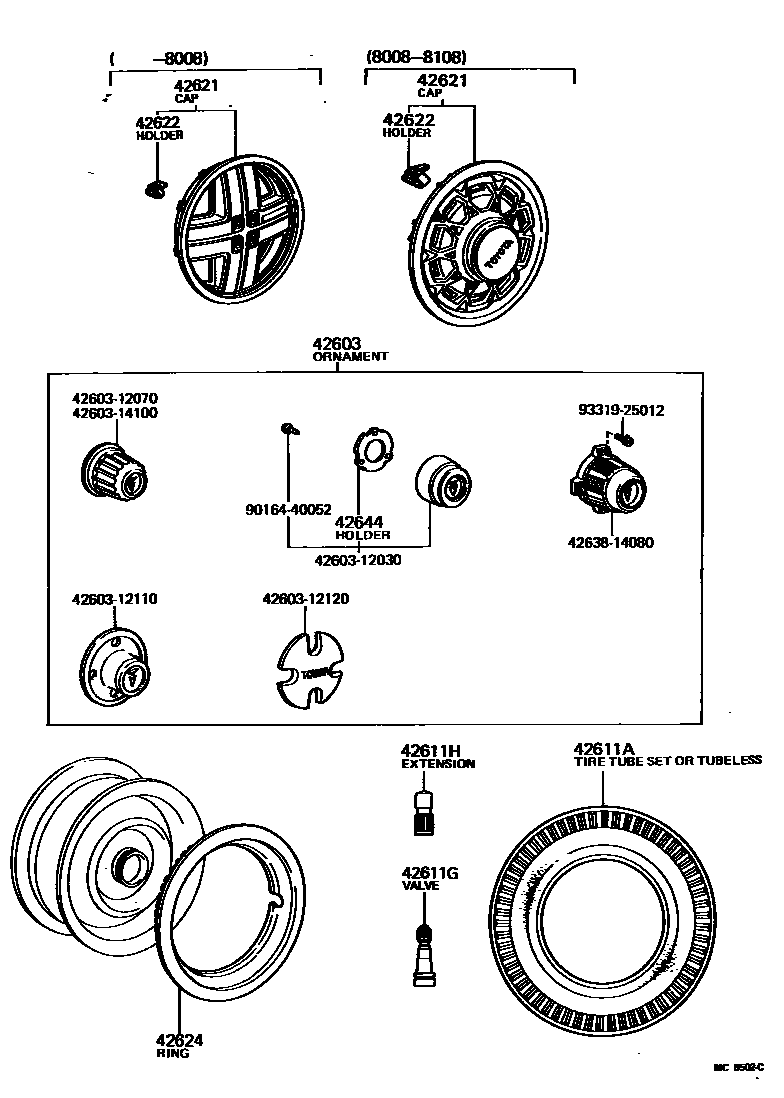

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12030×4iTE72..SR5197908-198208

main42603-12070×4iTE72..SED,WG197908-198108

MAROON

main42603-12110×4iAE71,TE72..DX198108-198307

main42603-12120×4iTE72..SR5198108-198208

ALUMI WHEEL

main42603-14100×4iTE72..(CP,HT,LB)..DX197908-198108

BLACK

main42638-14080×4iTE72..SR5197908-198108

ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-12050×4iTE72197908-198108

165S/6.45S-13-4,WSW

main42652-12060×4iTE72197908-198108

165S/6.45S-13-4,BLACK

main42652-12160×5iAE71,TE72197908-198307

165SR13,WSW

main42652-12280×4iAE71,TE72197908-198307

185/70SR13,BLACK

main42652-12370iAE71,TE72198008-198307

T115/70D14

main42652-12400iAE71,TE72198008-198307

165SR13,BLACK

main42652-12480×4iAE71,TE72198108-198307

185/70SR13,WHITE LETTER

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iAE71,TE72197908-198307

42611HEXTENSION, VALVE

main90942-05006×4iTE72..SR5198008-198108

42621CAP, WHEEL

main42602-10070-03×4iTE72..SR5197908-198008

SILVER METALLIC,GRAY

main42602-10070-06×4iTE72..SR5197908-198008

GOLD METALIC,BROWN

main42602-12050×4iTE72..SR5198008-198108

42622HOLDER, WHEEL CAP

main42622-14010×32iTE72..SR5197908-198108

42624RING, WHEEL CAP

main42624-12012×4iAE71..DX198208-198307

4.5J-13

main42624-14023×4iTE72..SR5197908-198104

main42624-14024×4iTE72..SR5198104-198112

main42624-14025×4iTE72..SR5198112-198208

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14041×4iTE72..SR5197908-198208

4260312030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12030

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070

4260312110ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12110

4260312120ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12120

4260314100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14100

4263814080

main42638-14080

9016440052

main90164-40052

9331925012

main93319-25012

16 parts on this diagram · 2 diagrams in section
