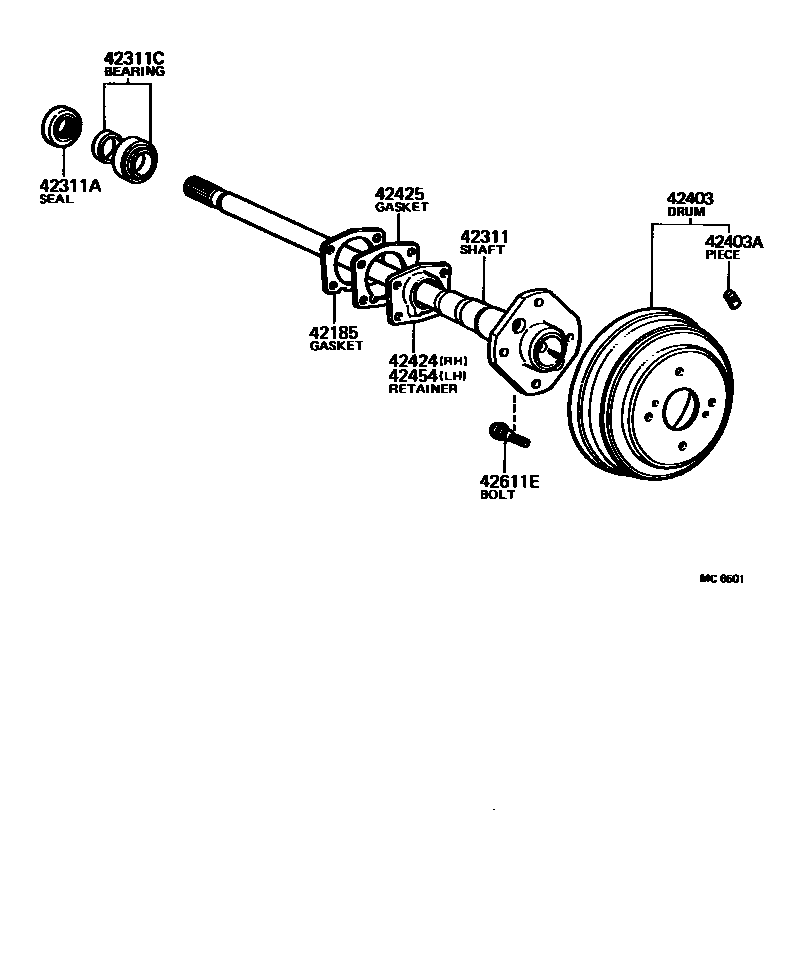

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2iAE71,TE72..CP,HT,LB,SED197908-198307

main42185-13010×2iAE71,TE72..WG197908-198307

42311SHAFT, REAR AXLE

main42311-12080×2iAE71,TE72197908-198307

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2iAE71,TE72197908-198307

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-12010×2iAE71,TE72..CP,HT,LB,SED197908-198307

main04421-13010×2iAE71,TE72..WG197908-198307

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060×2iAE71,TE72197908-198209

main42431-12081×2iAE71198209-198307

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01020iAE71198209-198307

20G,20G

main90937-01021iAE71198209-198307

40G,40G

main90937-01023iAE71198209-198307

10G,10G

main90937-01032iAE71198209-198307

30G,30G

main90937-01033iAE71198209-198307

50G,50G

main90937-01034iAE71198209-198307

60G,60G

main90937-01117×4iAE71,TE72197908-198209

10G,10G

main90937-01118×4iAE71,TE72197908-198209

20G,20G

main90937-01119×4iAE71,TE72197908-198209

30G,30G

main90937-01195×4iAE71,TE72197908-198703

40G,40G

main90937-01196×4iAE71,TE72197908-198703

50G,50G

main90937-01197×4iAE71,TE72197908-198703

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-20010iAE71,TE72197908-198307

42425GASKET, REAR AXLE BEARING RETAINER

main42425-13010×2iAE71,TE72..WG197908-198307

main42425-20010×2iAE71,TE72..CP,HT,LB,SED197908-198307

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-20010iAE71,TE72197908-198307

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iAE71,TE72197908-198305

main90942-02047×8iAE71198305-198307

10 parts on this diagram · 1 diagram in section
