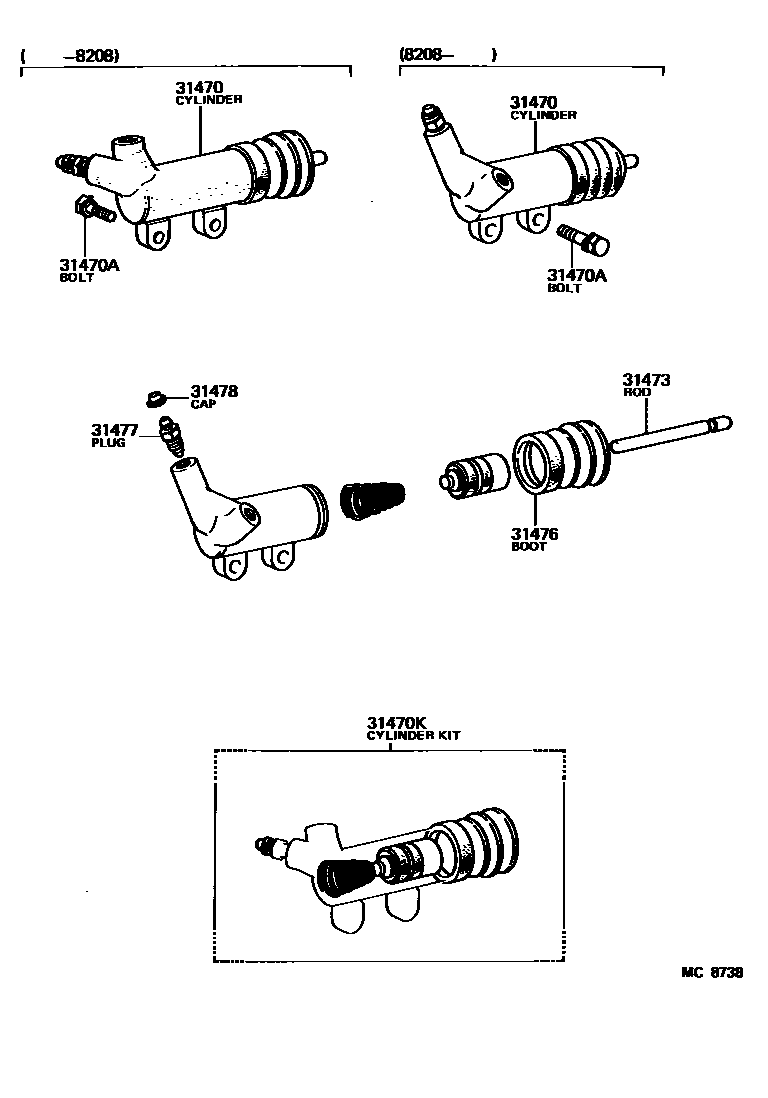

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12030iAE71..MTM198208-198307

main31470-14020iTE72..MTM197908-198008

main31470-20150iTE72..MTM198008-198012

main31470-20151iTE72..MTM198012-198208

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825×2iAE71,TE72..MTM197908-198307

*8-1.25PX25-25

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iAE71,TE72..MTM198012-198307

main04313-30100iTE72..MTM197908-198012

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iTE72..MTM197908-198008

main31473-20030iTE72..MTM198008-198012

main31473-20031iAE71,TE72..MTM198012-198307

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE71,TE72..MTM198012-198307

main31476-30040iTE72..MTM197908-198012

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iAE71,TE72..MTM197908-198307

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAE71,TE72..MTM197908-198307

7 parts on this diagram · 1 diagram in section
