CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iTE72..MTM197908-198208

main31402-30030iAE71..MTM198208-198307

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iTE72..MTM197908-198208

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12070iTE72..MTM197908-198208

main31410-12090iAE71..MTM198208-198307

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08079iTE72..MTM197908-198208

main90116-08146iAE71..MTM198208-198307

31410KCYLINDER KIT, CLUTCH MASTER

main04311-12020iAE71,TE72..MTM197908-198307

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iAE71..MTM198208-198307

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE71,TE72..MTM197908-198307

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE71,TE72..MTM197908-198307

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iTE72..MTM197908-198208

main47231-30010iAE71..MTM198208-198307

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAE71..MTM198208-198307

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iAE71,TE72..MTM197908-198307

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iAE71,TE72..MTM197908-198307

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAE71,TE72..MTM197908-198307

9017908038

main90179-08038

9412040800

main94120-40800

9454200800

main94542-00800

9471290800

main94712-90800

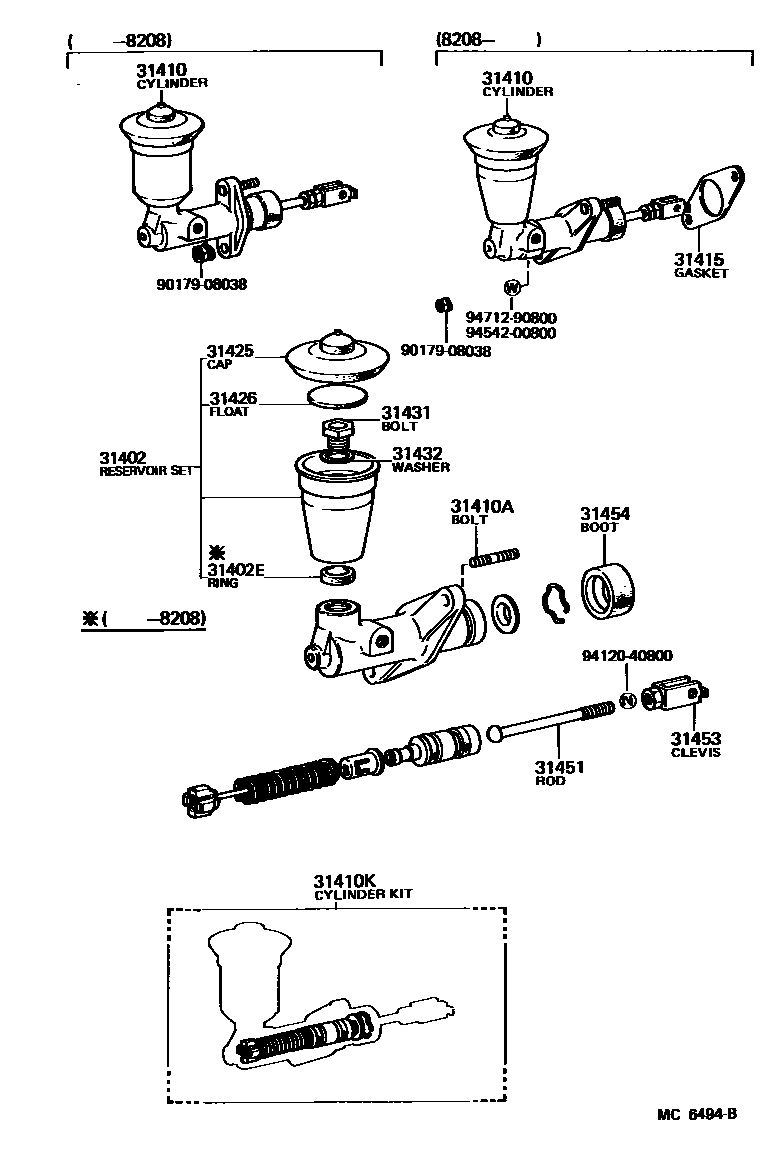

17 parts on this diagram · 1 diagram in section
