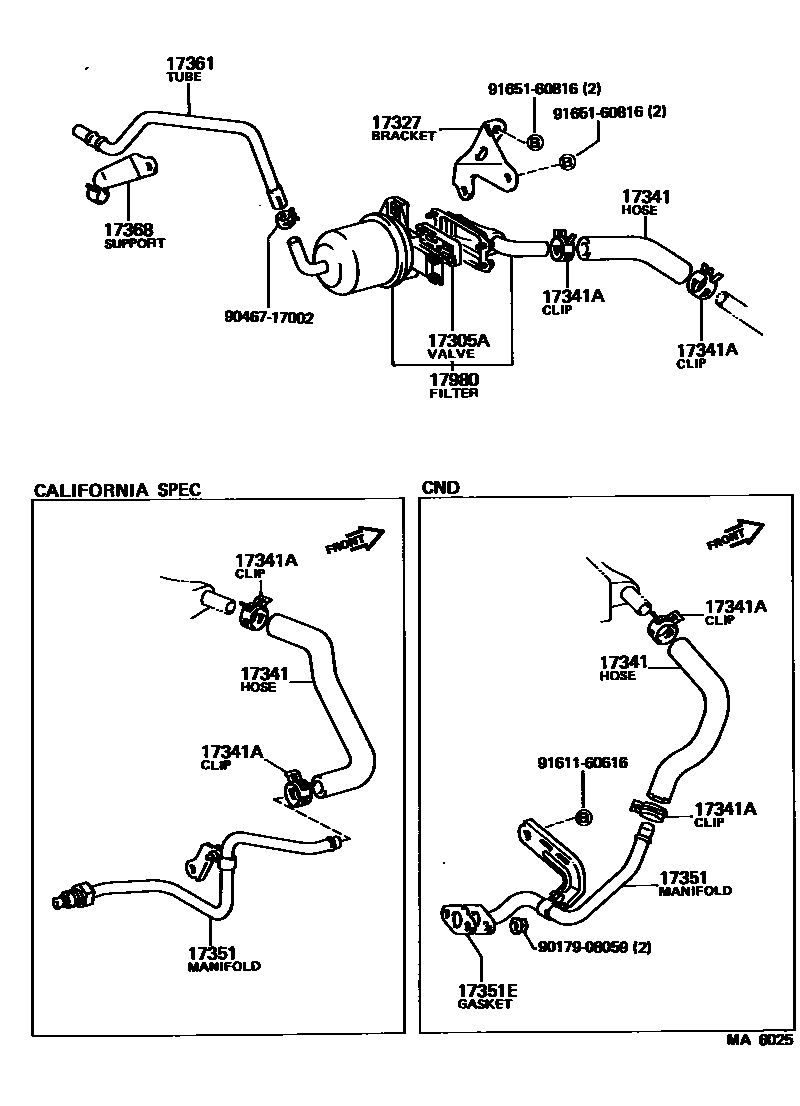

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0004 1 0005 1

17305AVALVE SUB-ASSY, REED

main17305-15010i4AC..AE71..USA198208-198307

main17305-18010i3TC..TE72..CND198008-198208

main17305-28010i3TC..TE72197908-198008

17327BRACKET, REED VALVE

main17327-16011i4AC..AE71..USA198208-198307

main17327-18010i3TC..TE72197908-198208

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-15050i4AC..AE71..USA198208-198307

CALIFORNIA SPEC

main17341-15100i4AC..AE71..CND198208-198307

main17341-16011i4AC..AE71..USA198208-198307

main17341-26040i3TC..TE72..USA197908-198008

CALIFORNIA SPEC,W/COOLER

main17341-26050i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

main17341-28040i3TC..TE72..USA198008-198208

main17341-28050i3TC..TE72..(3FC,4FC,5F)..USA198008-198208

W/COOLER

main90445-27011i3TC..TE72..CND197908-198208

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-21001i3TC..TE72197908-198208

sub90467-21006

main90467-23003i4AC..AE71..USA198208-198307

CALIFORNIA SPEC

sub96134-42300

main90467-28003i4AC..AE71198208-198307

sub90467-28007

main96111-10300i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

17351MANIFOLD, AIR INJECTION

main17306-15030i4AC..AE71..USA198208-198307

CALIFORNIA SPEC

main17306-15040i4AC..AE71..CND198208-198307

main17351-28020i3TC..TE72..CND197908-198208

main17351-28030i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

main17351-28070i3TC..TE72..USA198008-198208

17351EGASKET(FOR AIR INJECTION MANIFOLD)

main89466-30010i4AC..AE71..CND198208-198307

sub89466-20020

17361TUBE, AIR

main17361-16010i4AC..AE71..USA198208-198307

17368SUPPORT, AIR TUBE

main17368-16010i4AC..AE71..USA198208-198307

main17368-18040i3TC..TE72198009-198208

main17368-26020i3TC..TE72197908-198009

sub17368-18040

17980FILTER ASSY, AIR SUCTION

main17980-16011i4AC..AE71..USA198208-198307

9017908059

main90179-08059

9046717002

main90467-17002

9161160616

main91611-60616

9165160816

main91651-60816

13 parts on this diagram · 4 diagrams in section
