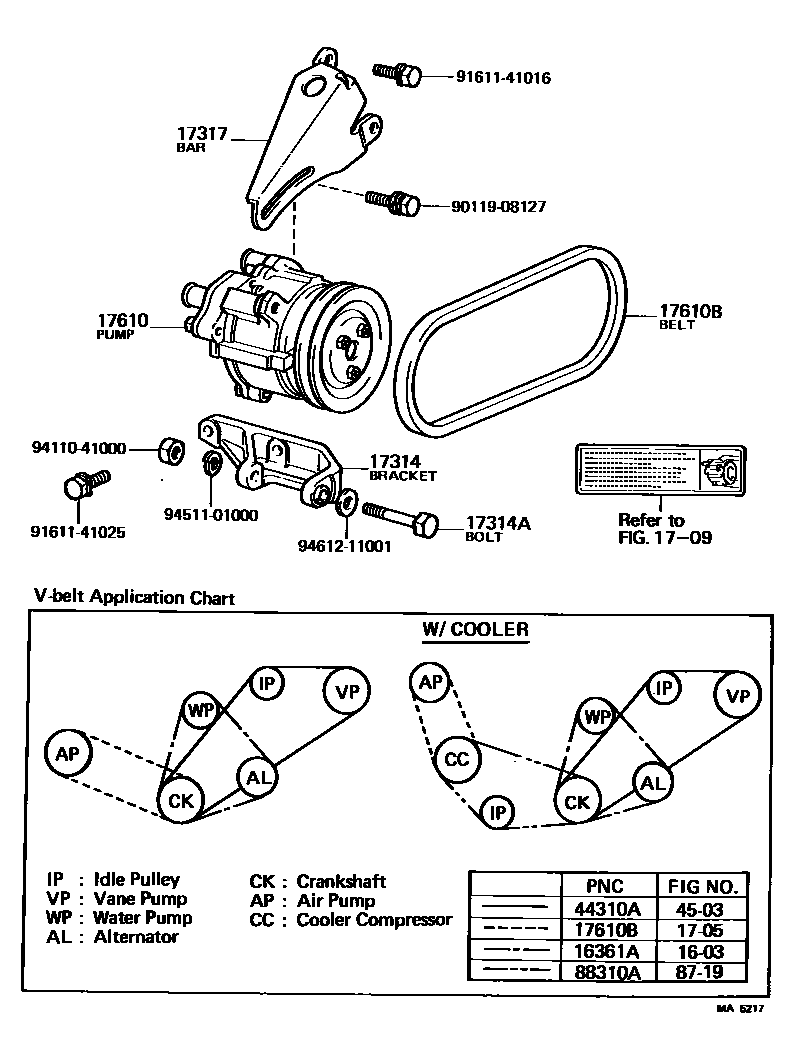

AIR PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02117i4AC..AE71..USA198208-198307

W/COOLER

main90916-02126i4AC..AE71198208-198307

main99331-10885i3TC..TE72197908-198208

1705AIR PUMP

→ Go to FIG 17-05

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17314BRACKET, AIR PUMP

main17314-26022i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

main17314-28010i3TC..TE72..USA198008-198208

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10088i3TC..TE72..USA198008-198208

main90101-10402i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-26021i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

17610PUMP ASSY, AIR

main17610-26030i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

main17610-28010i3TC..TE72..USA198008-198208

17610BBELT, V(FOR AIR PUMP)

main99332-10765i3TC..TE72..USA198008-198208

W/COOLER

main99332-10815i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

44310ABELT, V(FOR VANE PUMP)

main99332-00805iAE71..DX198208-198307

main99332-11080iTE72..3FC,4FC,5F197908-198208

L=1080

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10860iAE71..DX..USA198208-198307

L=860

main99332-10965iTE72..USA197908-198008

9011908127

main90119-08127

9161141016

main91611-41016

9161141025

main91611-41025

9411041000

main94110-41000

9451101000

main94511-01000

9461211001

main94612-11001

19 parts on this diagram · 1 diagram in section
