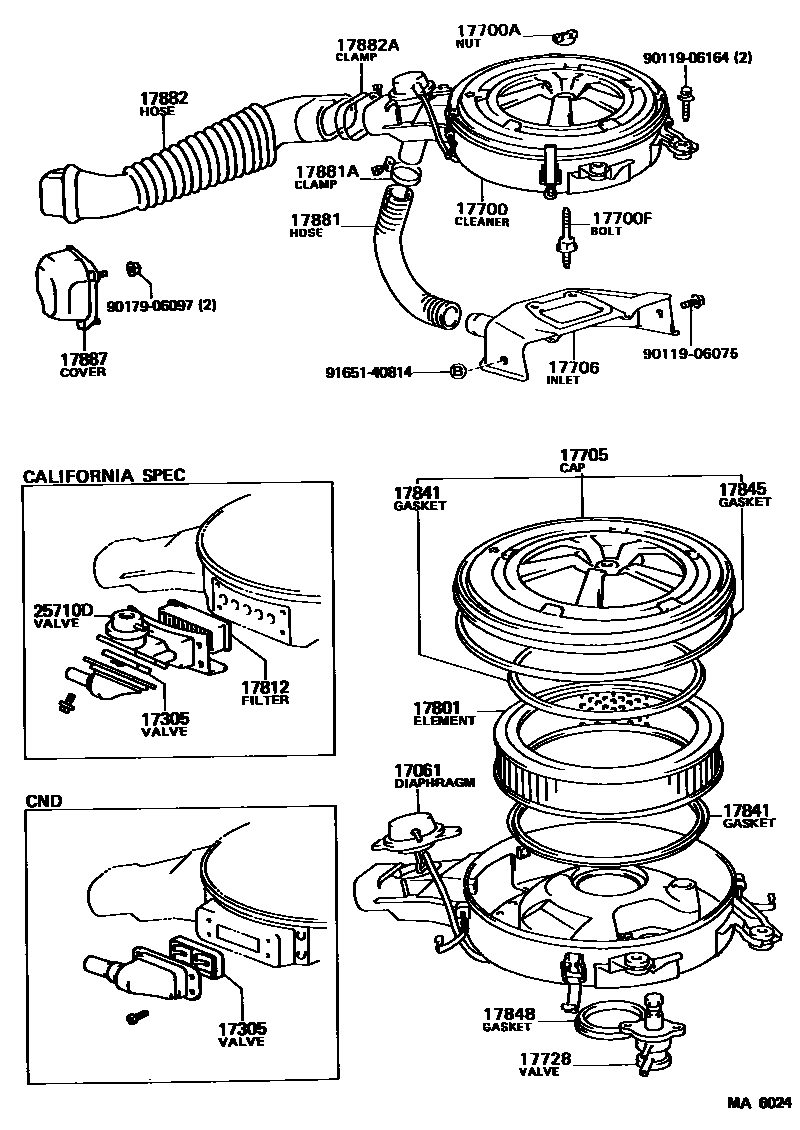

AIR CLEANER

0001 1 0002 1 0004 1 0005 1

17061DIAPHRAGM SUB-ASSY

main17061-26010i4AC..AE71197908-198307

17305VALVE SUB-ASSY, REED

main17305-15010i4AC..AE71..CND198208-198307

main17305-31010i4AC..AE71..USA198208-198307

CALIFORNIA SPEC

17700CLEANER ASSY, AIR

main17700-16010i4AC..AE71..USA198208-198307

sub17700-16210

main17700-16020i4AC..AE71..USA198208-198307

CALIFORNIA SPEC

sub17700-16220

main17700-16030i4AC..AE71..CND198208-198307

main17700-28020i3TC..TE72197908-198008

main17700-28021i3TC..TE72..CND198008-198208

sub17700-18030

main17700-28030i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

main17700-28050i3TC..TE72..MTM..USA198008-198208

main17700-28060i3TC..TE72..ATM..USA198008-198208

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i4AC..AE71197908-198307

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06222i3TC..TE72197908-198208

main90116-06230i4AC..AE71198208-198307

17705CAP SUB-ASSY, AIR CLEANER

main17705-15030i4AC..AE71198208-198307

main17705-25012i3TC..TE72197908-198008

main17705-25013i3TC..TE72..CND198008-198208

sub17705-26080

main17705-28020i3TC..TE72..MTM..USA198008-198208

main17705-28030i3TC..TE72..ATM..USA198008-198208

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17752-26021i3TC..TE72..USA197908-198008

CALIFORNIA SPEC

main17901-28010i3TC..TE72..USA198008-198208

CALIFORNIA SPEC

main17902-15060i4AC..AE71198208-198307

main17902-27031i3TC..TE72197908-198008

main17902-27032i3TC..TE72198008-198208

17728VALVE, THERMOSTATIC

main17728-15020i4AC..AE71198208-198307

main17728-28010i3TC..TE72197908-198008

main17728-28020i3TC..TE72..USA198008-198208

main17728-28030i3TC..TE72..CND198008-198208

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-15010i4AC..AE71198208-198307

main17801-25010i3TC..TE72..CND198008-198208

main17801-34060i3TC..TE72..USA198008-198208

17812FILTER, AIR CLEANER, NO.2

main17812-15010i4AC..AE71..USA198208-198307

CALIFORNIA SPEC

17841GASKET, FILTER ELEMENT

main17841-15010×2i4AC..AE71198208-198307

main17841-25010×2i3TC..TE72197908-198008

sub17841-31020

main17841-33011×2i3TC..TE72..USA198008-198208

17845GASKET, AIR CLEANER CAP

main17845-15020i4AC..AE71198208-198307

main17845-25010i3TC..TE72197908-198208

sub17845-42010

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63001i4AC..AE71198208-198307

sub17848-10020

main90430-63187i3TC..TE72197908-198008

17881HOSE, AIR CLEANER, NO.1

main17881-26020i3TC..TE72197908-198208

sub17881-26021

main17881-63010i4AC..AE71198208-198307

sub17881-74040

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10460i4AC..AE71198208-198307

17882HOSE, AIR CLEANER, NO.2

main17881-12040i4AC..AE71198208-198307

main17881-28020i3TC..TE72..USA197908-198208

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i3TC..TE72..USA197908-198208

AIR CLEANER SIDE

main90460-01005i4AC..AE71198208-198307

main96111-10560i3TC..TE72..USA197908-198208

BODY SIDE

17887COVER, AIR CLEANER HOSE

main17887-15010i4AC..AE71198208-198307

25710DVALVE ASSY, AIR SWITCHING

main25710-15060i4AC..AE71..USA198208-198307

CALIFORNIA SPEC

9011906075

main90119-06075

9011906164

main90119-06164

9017906097

main90179-06097

9165140814

main91651-40814

23 parts on this diagram · 4 diagrams in section
