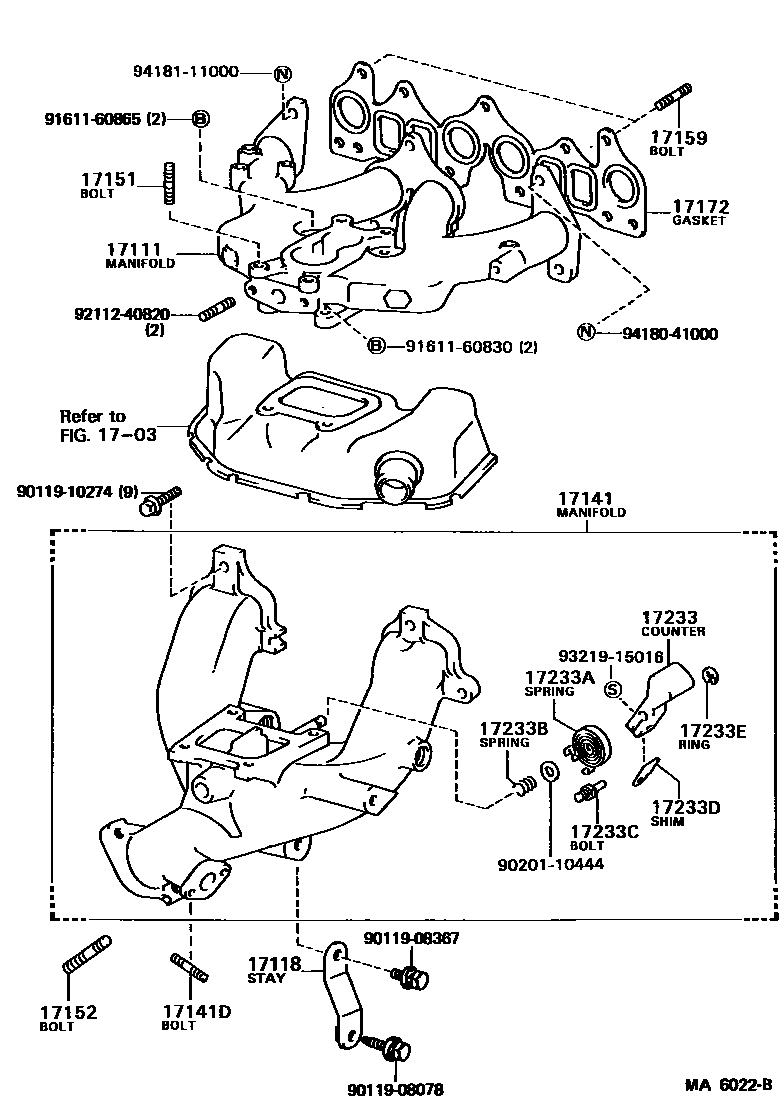

MANIFOLD
1703AIR CLEANER
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=41,S=14&14
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&21
L=44,S=14&21
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
EXHAUST MANIFOLD
17172GASKET, MANIFOLD TO CYLINDER HEAD
17233COUNTER WEIGHT
17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
17233CBOLT(FOR COUNTER WEIGHT)
17233DSHIM(FOR COUNTER WEIGHT)
17233ERING, E(FOR COUNTER WEIGHT)
9011908078
main90119-08078
9011908367
main90119-08367
9011910274
main90119-10274
9020110444
main90201-10444
9161160830
main91611-60830
9161160865
main91611-60865
9211240820
main92112-40820
9321915016
main93219-15016
9418041000
main94180-41000
9418111000
main94181-11000
25 parts on this diagram · 3 diagrams in section
