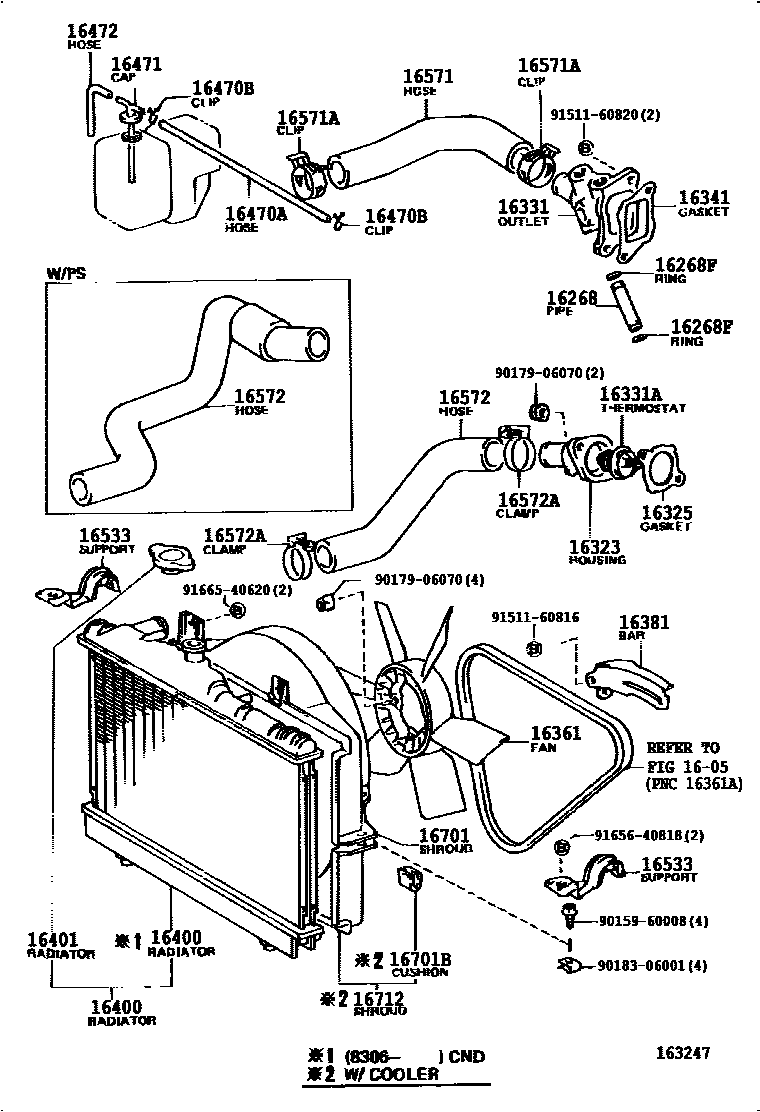

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605V-BELT

→ Go to FIG 16-05

16268PIPE, WATER BY-PASS, NO.1

main16268-15010i4AC..AE71198208-198307

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013×2i4AC..AE71198208-198307

16323HOUSING, WATER INLET

main16323-15020i4AC..AE71198208-198307

16325GASKET, WATER INLET HOUSING, NO.1

main16325-70021i4AC..AE71198208-198307

16331OUTLET, WATER

main16331-15040i4AC..AE71..USA198208-198307

main16331-15050i4AC..AE71..CND198208-198307

main16331-26060i3TC..TE72..USA197908-198208

main16331-28010i3TC..TE72..CND197908-198208

16331ATHERMOSTAT

main90916-03036i3TC..TE72197908-198208

*WAX 88-100,FUJI-THOMSON

main90916-03040i3TC..TE72197908-198208

*WAX 88-100,KUZEH

main90916-03046i4AC..AE71198208-198307

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-15011i4AC..AE71198208-198307

main16341-38010i3TC..TE72197908-198201

main16341-38011i3TC..TE72198201-198208

16361FAN

main16361-16010i4AC..AE71198303-198307

main16361-18010i3TC..TE72..(3FC,4FC,5F)..USA197908-198208

W/POWER STEERING

main16361-26040i3TC..TE72..USA197908-198208

main16361-28010i3TC..TE72..CND197908-198208

16381BAR, FAN BELT ADJUSTING

main16381-15030i4AC..AE71198208-198307

main16381-25010i3TC..TE72197908-198208

16400RADIATOR ASSY

main16400-15160i4AC..AE71..MTM198208-198306

main16400-15170i4AC..AE71..ATM198208-198307

main16400-15180i4AC..AE71..ATM..USA198208-198307

W/COOLER

main16400-26210i3TC..TE72..MTM197908-198208

main16400-26230i3TC..TE72..ATM198008-198208

main16400-26320i3TC..TE72..LB..3FC197912-198008

ALUMINUM

main16410-15290i4AC..AE71..MTM..CND198306-198307

16401CAP SUB-ASSY, RADIATOR

main16401-36011i3TC..TE72; 4AC..AE71..ATM197908-198307

main16401-63010i4AC..AE71..MTM198208-198307

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12023i3TC..TE72..CND; 3TC..TE72..USA; 4AC..AE71..CND; 4AC..AE71..USA197908-198307

L=600(*H,L=380); L=600(*H,L=380),COLD SPEC

main90445-12073i3TC..TE72..USA197908-198206

L=420

main90445-12351i3TC..TE72..USA198206-198208

L=470

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3TC..TE72; 4AC..AE71197908-198307

16471CAP SUB-ASSY, RESERVE TANK

main85339-12010i3TC..TE72; 4AC..AE71197908-198307

16472HOSE, BREATHER

main85338-12010i4AC..AE71..CND; 4AC..AE71..USA198208-198307

COLD SPEC

main85338-16010i3TC..TE72; 4AC..AE71..USA197908-198307

16533SUPPORT, RADIATOR, UPPER

main16505-15020i4AC..AE71..MTM198208-198307

RH

main16506-15020i4AC..AE71..MTM198208-198307

LH

main16533-26010i4AC..AE71..ATM198208-198307

main16533-26030i3TC..TE72197908-198208

16571HOSE, RADIATOR, INLET

main16571-15020i4AC..AE71..ATM198208-198307

main16571-15090i4AC..AE71..MTM198208-198307

main16571-26080i3TC..TE72..3FC,4FC,5F197908-198208

W/PS

main90916-01167i3TC..TE72197908-198208

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001×2i4AC..AE71198208-198307

main90467-37001×2i3TC..TE72198108-198208

main96111-10430i3TC..TE72197908-198108

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16572-15080i4AC..AE71..ATM198208-198307

main16572-15090i4AC..AE71..ATM198208-198307

W/PS

main16572-15130i4AC..AE71..MTM198208-198307

main16572-15140i4AC..AE71..5F198208-198307

W/PS

main16572-26040i3TC..TE72197908-198208

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i3TC..TE72197908-198208

RADIATOR SIDE

main96111-10400×2i4AC..AE71198208-198307

main96111-10500i3TC..TE72197908-198208

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-12040i4AC..AE71..ATM..USA198208-198307

W/COOLER

main16711-15100i4AC..AE71..5F..USA198208-198307

W/COOLER

main16711-15110i4AC..AE71..MTM198208-198307

main16711-28050i3TC..TE72..USA198008-198208

W/COOLER

main16711-28060i3TC..TE72..(3FC,4FC,5F)..USA197908-198208

W/PS & COOLER

main16711-28070i3TC..TE72..CND197908-198208

16701BCUSHION, FAN SHROUD

main90541-11002×2i4AC..AE71..5F..USA198208-198307

W/COOLER

16712SHROUD, FAN, NO.2

main16712-12020i4AC..AE71..ATM..USA198208-198307

W/COOLER

main16712-15020i4AC..AE71..5F..USA198208-198307

W/COOLER

main16712-28030i3TC..TE72..USA197908-198208

W/COOLER

main16712-28040i3TC..TE72..(3FC,4FC,5F)..USA197908-198208

W/PS & COOLER

9015960008

main90159-60008

9017906070

main90179-06070

9018306001

main90183-06001

9151160816

main91511-60816

9151160820

main91511-60820

9165640818

main91656-40818

9166540620

main91665-40620

31 parts on this diagram · 6 diagrams in section
