WATER PUMP

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

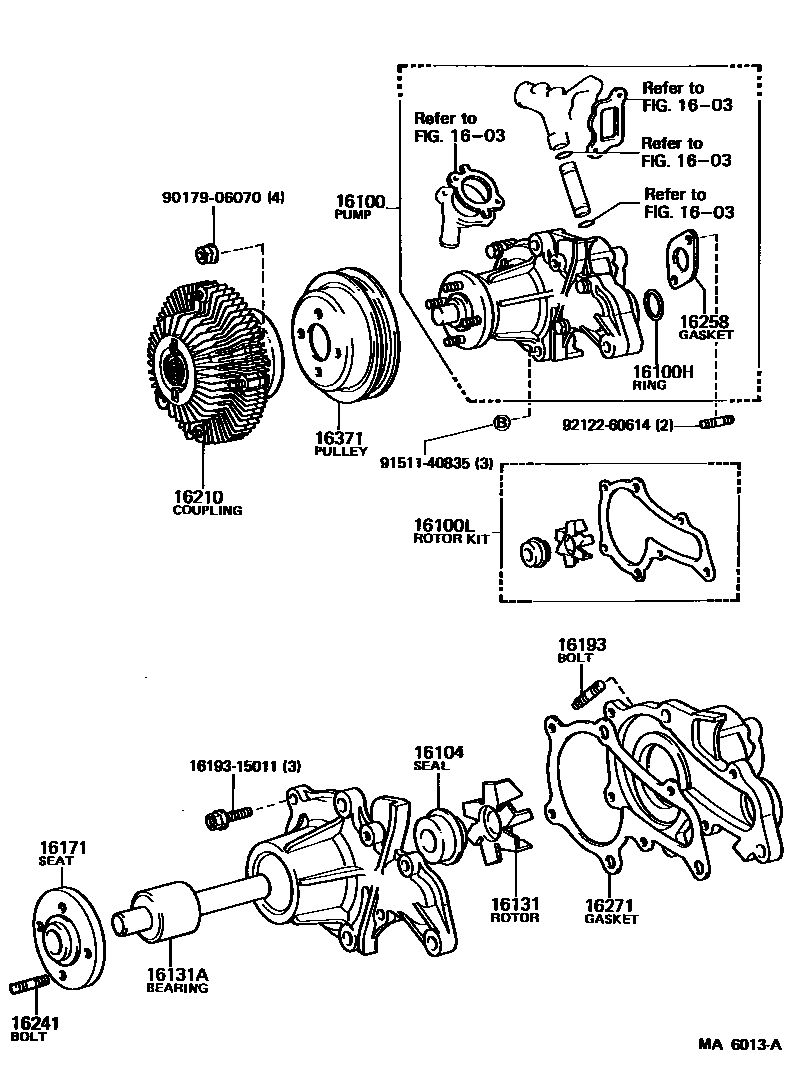

16100PUMP ASSY, ENGINE WATER

main16100-19036i4AC..AE71198208-198307

main16100-28020i3TC..TE72..USA197908-198208

main16100-28030i3TC..TE72..CND197908-198208

16100HRING, O(FOR WATER PUMP)

main96711-24035i4AC..AE71198208-198307

16100LROTOR KIT, WATER PUMP

main04162-15010i4AC..AE71198208-198307

main04162-28010i3TC..TE72..USA197908-198108

main04162-28020i3TC..TE72198108-198201

main04162-28021i3TC..TE72198201-198208

16104SEAL SET, WATER PUMP

main16104-41110i3TC..TE72..USA197908-198208

main16104-41111i3TC..TE72..CND; 4AC..AE71197908-198307

16131ROTOR, WATER PUMP

main16131-15010i4AC..AE71198208-198307

main16131-26010i3TC..TE72197908-198208

16131ABEARING, WATER PUMP

main16140-38011i3TC..TE72..USA197908-198208

main90369-30014i4AC..AE71198208-198307

main90369-30063i3TC..TE72..CND197908-198208

16171SEAT, WATER PUMP PULLEY

main16171-15020i4AC..AE71198208-198307

main16171-24030i3TC..TE72..CND197908-198208

main16171-26021i3TC..TE72..USA197908-198208

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010×2i4AC..AE71198208-198307

16210COUPLING ASSY, FLUID

main16210-18010i4AC..AE71198208-198307

main16210-28020i3TC..TE72..USA197908-198208

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16241-15020×4i4AC..AE71198208-198307

main90116-06008×4i3TC..TE72..USA197908-198208

16258GASKET(FOR HEATER RETURN)

main16258-15011i4AC..AE71198208-198307

16271GASKET, WATER PUMP

main16124-15010i4AC..AE71198208-198307

main16129-25011i3TC..TE72197908-198201

main16129-25012i3TC..TE72198201-198208

16371PULLEY, FAN

main16173-28010i3TC..TE72..USA197908-198208

main16371-16010i4AC..AE71198208-198307

main16371-28010i3TC..TE72..CND197908-198208

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9017906070

main90179-06070

9151140835

main91511-40835

9212260614

main92122-60614

18 parts on this diagram · 3 diagrams in section
