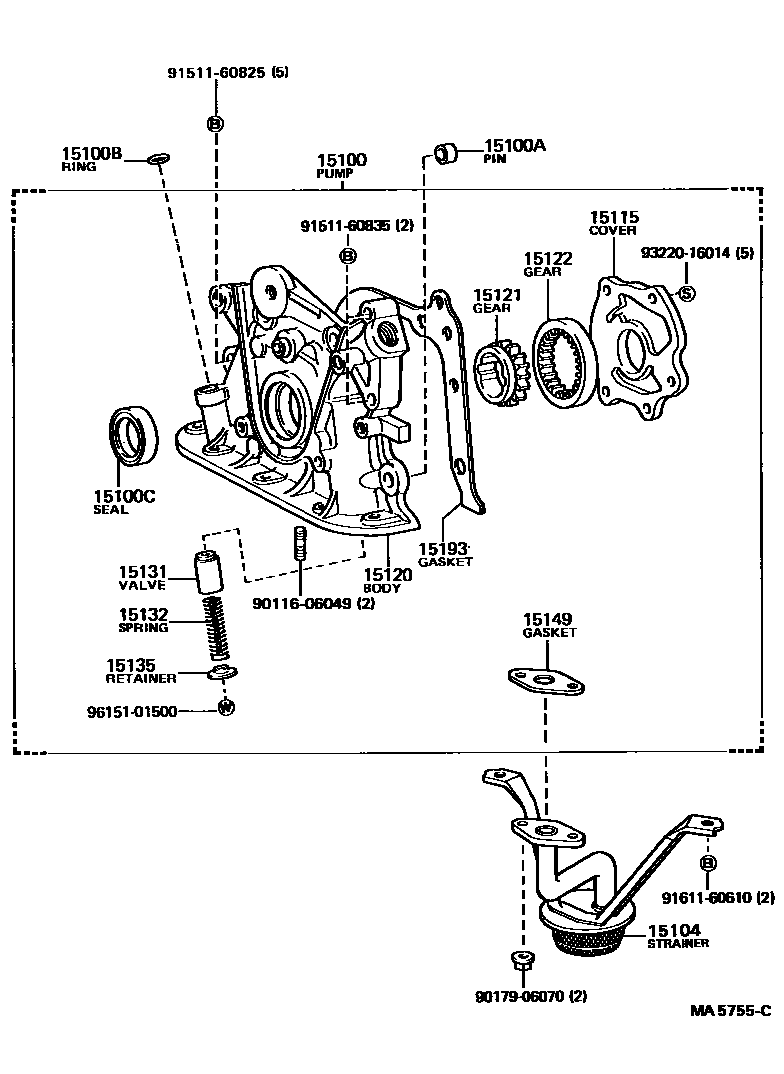

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-19015i4AC..AE71198208-198307

main15100-25020i3TC..TE72197908-198208

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i4AC..AE71198208-198307

15100BRING, O(FOR OIL PUMP)

main96711-19010i4AC..AE71198208-198307

15100CSEAL(FOR OIL PUMP)

main90311-32001i4AC..AE71198208-198307

15104STRAINER SUB-ASSY, OIL

main15104-15080i4AC..AE71198208-198307

15115COVER, OIL PUMP

main15012-25020i3TC..TE72197908-198208

main15115-15010i4AC..AE71198208-198307

15120BODY SUB-ASSY, OIL PUMP

main15120-15011i4AC..AE71198208-198307

15121GEAR, OIL PUMP DRIVE

main15121-15010i4AC..AE71198208-198307

15122GEAR, OIL PUMP DRIVEN

main15122-15010i4AC..AE71198208-198307

15131VALVE, OIL PUMP RELIEF

main15131-22010i3TC..TE72197908-198208

main15131-24010i4AC..AE71198208-198307

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3TC..TE72; 4AC..AE71197908-198307

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AC..AE71198208-198307

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4AC..AE71198208-198307

15193GASKET, OIL PUMP

main15197-15011i4AC..AE71198208-198307

9011606049

main90116-06049

9017906070

main90179-06070

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9322016014

main93220-16014

9615101500

main96151-01500

21 parts on this diagram · 2 diagrams in section
