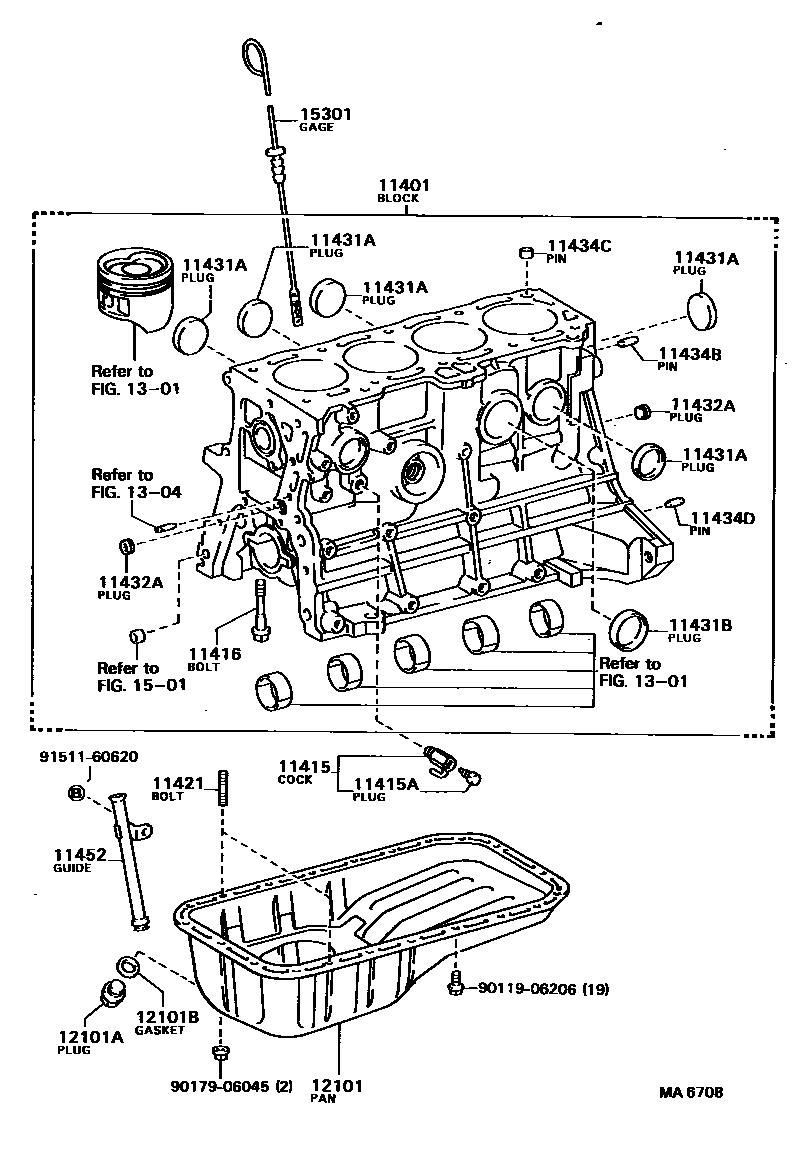

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19155i4AC..AE71198208-198303

sub11401-19195

sub13411-15030

main11401-19195i4AC..AE71198303-198307

sub11401-19196

main11401-29236i3TC..TE72197908-198207

sub11401-29238

main11401-29237i3TC..TE72198207-198208

sub11401-29425

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i4AC..AE71198208-198212

sub90910-09129

main90910-09079i4AC..AE71198212-198307

sub90910-09088

main96431-03833i3TC..TE72197908-198208

sub96431-53828

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i4AC..AE71198208-198307

sub90910-09087

main96431-23814i3TC..TE72197908-198208

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i4AC..AE71198208-198307

main90910-02032i3TC..TE72197908-198208

11421BOLT, STUD(FOR OIL PAN)

main90116-06022i4AC..AE71198208-198307

main92122-40818i3TC..TE72198106-198208

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i4AC..AE71198208-198307

OD=35

main96411-45000i3TC..TE72197908-198208

OD=50

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i4AC..AE71198208-198307

OD=40

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53002i3TC..TE72198201-198208

main90344-53008i4AC..AE71198208-198307

main90344-53011i3TC..TE72197908-198201

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120i3TC..TE72197908-198208

L=18,OD=8,L=18,OD=8

main90250-10113i3TC..TE72197908-198307

L=22,OD=10,L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i3TC..TE72197908-198208

L=18,OD=8,L=18,OD=8

main90253-13017i4AC..AE71198208-198307

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i4AC..AE71198208-198307

L=14,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-15010i4AC..AE71198208-198307

main11452-18010i3TC..TE72197908-198208

main12142-18010i3TC..TE72..3FC,4FC,5F197908-198208

UPR,W/POWER STEERING

12101PAN SUB-ASSY, OIL

main12101-15040i4AC..AE71198208-198307

sub12101-15090

sub90341-12012

sub90430-12011

main12101-29075i3TC..TE72197908-198208

sub12101-29076

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i3TC..TE72197908-198307

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i4AC..AE71197908-198307

sub90430-18023

1301

1304

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15020i4AC..AE71198208-198307

main15301-18010i3TC..TE72197908-198208

main15301-18020i3TC..TE72..3FC,4FC,5F197908-198208

W/POWER STEERING

9011906206

main90119-06206

9017906045

main90179-06045

9151160620

main91511-60620

22 parts on this diagram · 2 diagrams in section
