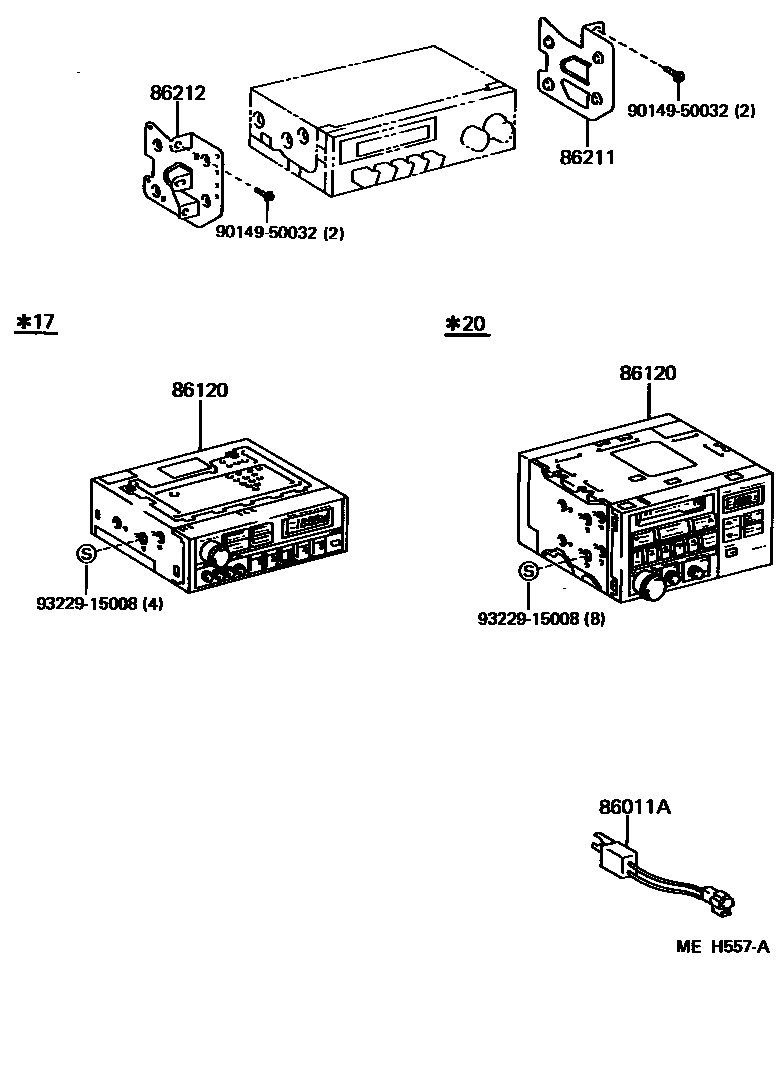

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04055iAE82198609-198808

86120RECEIVER ASSY, RADIO

main86120-16370iAE82198609-198708

*17

main86120-16371iAE82198708-198808

*17

main86120-16380iAE82..D198711-198808

*20,MARK=1632

main86120-16381iAE82198708-198808

*20,MARK=2623

86211BRACKET, RADIO, NO.1

main86211-12140iAE82198609-198808

86212BRACKET, RADIO, NO.2

main86212-12120iAE82198609-198808

9014950032

main90149-50032

9322915008

main93229-15008

6 parts on this diagram · 1 diagram in section
