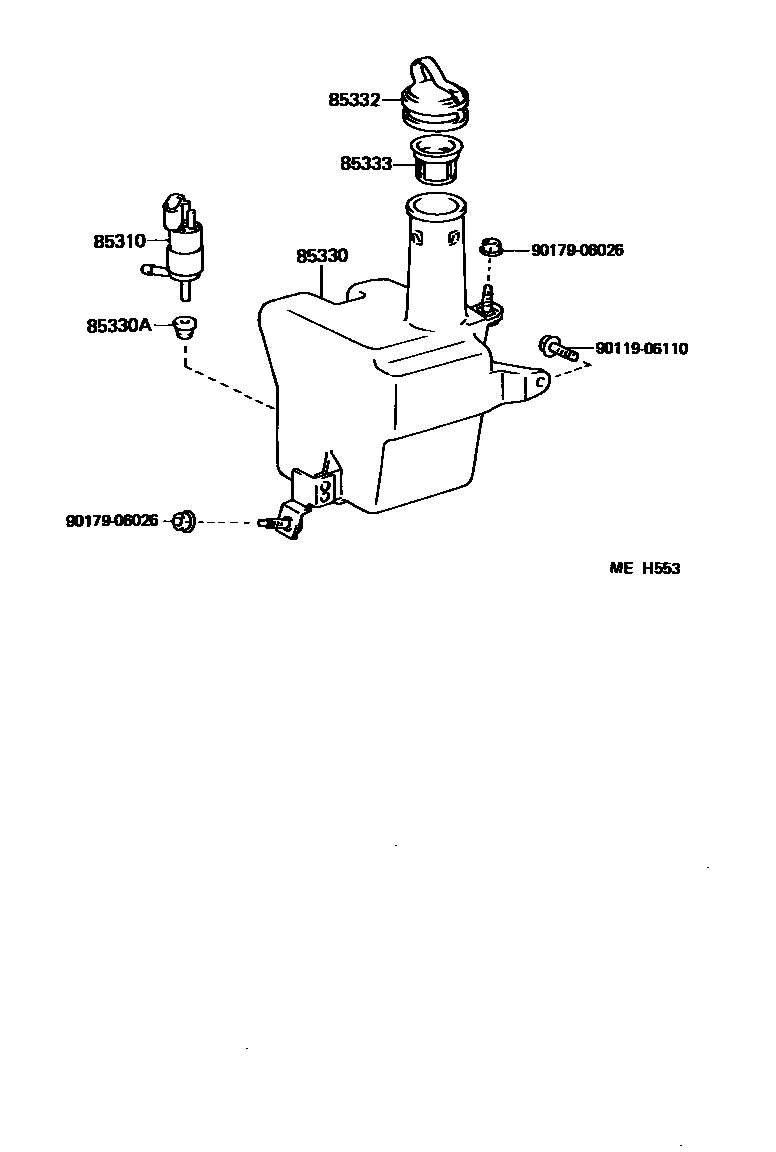

WINDSHIELD WASHER

0001 1 0002 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-01010iAE82198609-198808

85330JAR ASSY, WINDSHIELD WASHER

main85331-01010iAE82198609-198808

85330ABUSH, WINDSHIELD WASHER JAR

main85356-01010iAE82198609-198808

sub85312-12650

85332CAP, WINDSHIELD WASHER JAR

main85332-01010iAE82198609-198808

85333FILTER, WINDSHIELD WASHER JAR

main85333-01010iAE82198609-198808

9011906110

main90119-06110

9017906026

main90179-06026

7 parts on this diagram · 2 diagrams in section
