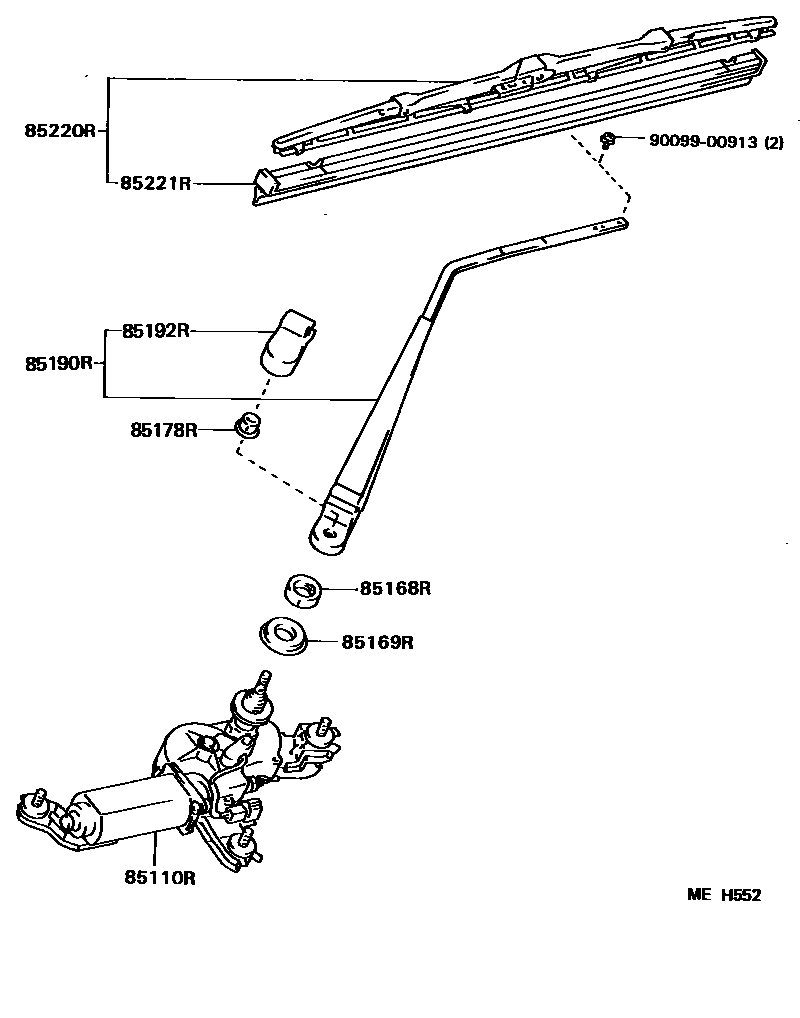

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-12430iAE82198609-198808

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iAE82198609-198808

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iAE82198609-198808

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAE82198609-198808

85190RARM ASSY, REAR WIPER

main85190-12790iAE82198609-198808

85192RCOVER, REAR WIPER ARM

main85192-14020iAE82198609-198808

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-22520iAE82198609-198808

85221RBLADE, REAR WIPER

main85221-12170iAE82198609-198808

sub85243-10010

9009900913

main90099-00913

9 parts on this diagram · 1 diagram in section
