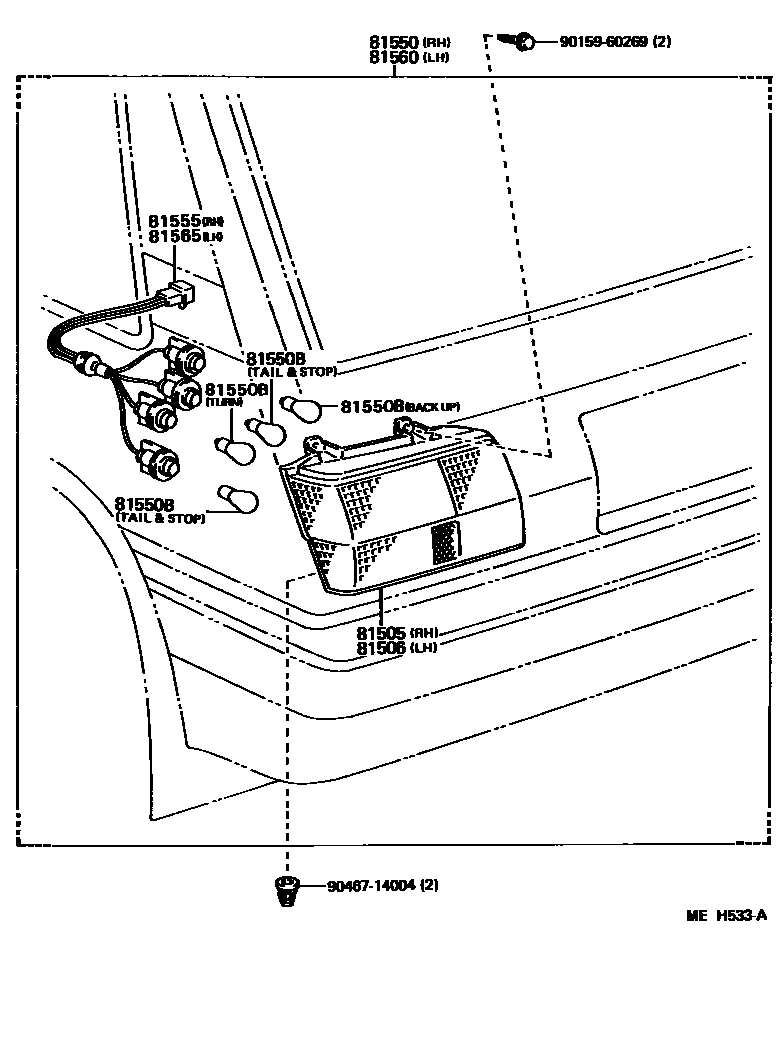

REAR COMBINATION LAMP

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-02010iAE82198609-198808

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-02010iAE82198609-198808

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02010iAE82198609-198808

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11270×4iAE82198609-198808

12V 27W,12V 27W(TURN OR BACK UP)

main99132-21270×4iAE82198609-198808

12V 27/8W,12V 27/8W(TAIL & STOP)

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-02010iAE82198609-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02010iAE82198609-198808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-02010iAE82198701-198808

main81565-02010iAE82198609-198701

9015960269

main90159-60269

9046714004

main90467-14004

9 parts on this diagram · 1 diagram in section
