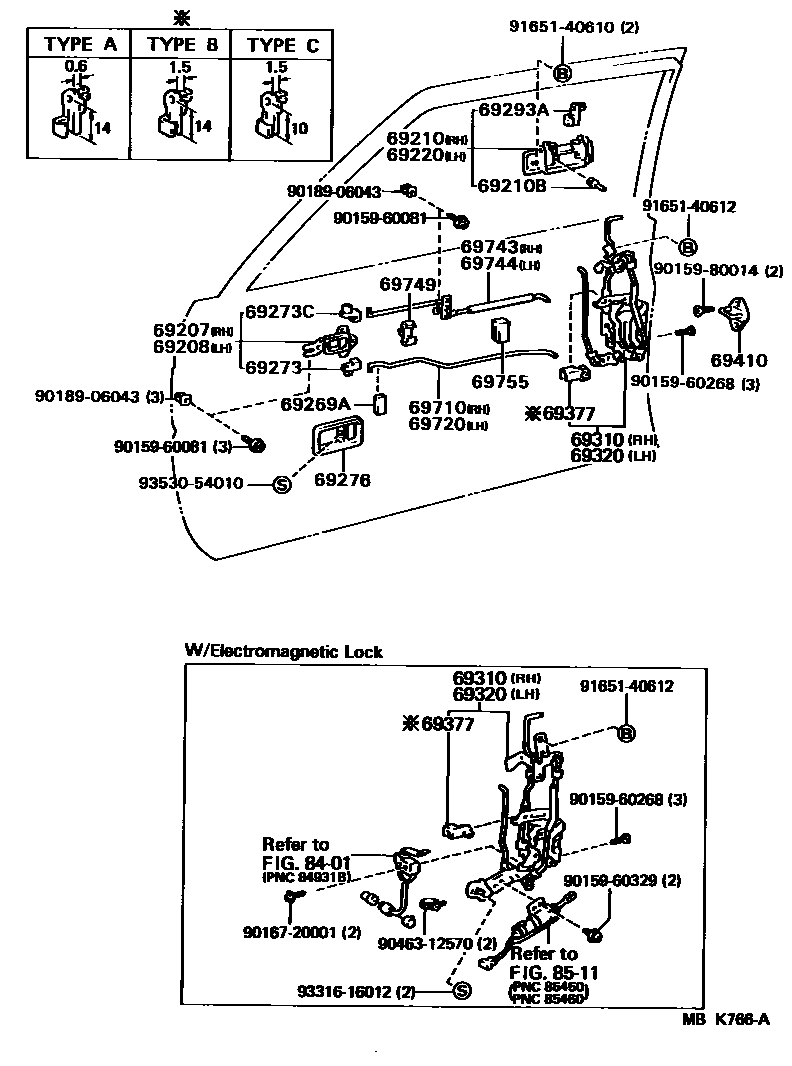

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK,BLACK
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK,BLACK
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69273SNAP, DOOR INSIDE HANDLE ROD
LH
RH
69273CSNAP, DOOR INSIDE HANDLE LINK
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W/*EL
W/*EL
69320LOCK ASSY, FRONT DOOR, LH
W/*EL
W/*EL
69377SNAP, FRONT DOOR LOCK CONTROL ROD
TYPE A,LH
TYPE A,RH
TYPE B,LH
TYPE B,RH
TYPE C,RH
TYPE C,LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69755SILENCER, FRONT DOOR LOCK LINK
8401
8511
9015960081
main90159-60081
9015960268
main90159-60268
9015960329
main90159-60329
9015980014
main90159-80014
9016720001
main90167-20001
9018906043
main90189-06043
9046312570
main90463-12570
9165140610
main91651-40610
9165140612
main91651-40612
9331616012
main93316-16012
9353054010
main93530-54010
33 parts on this diagram · 1 diagram in section
