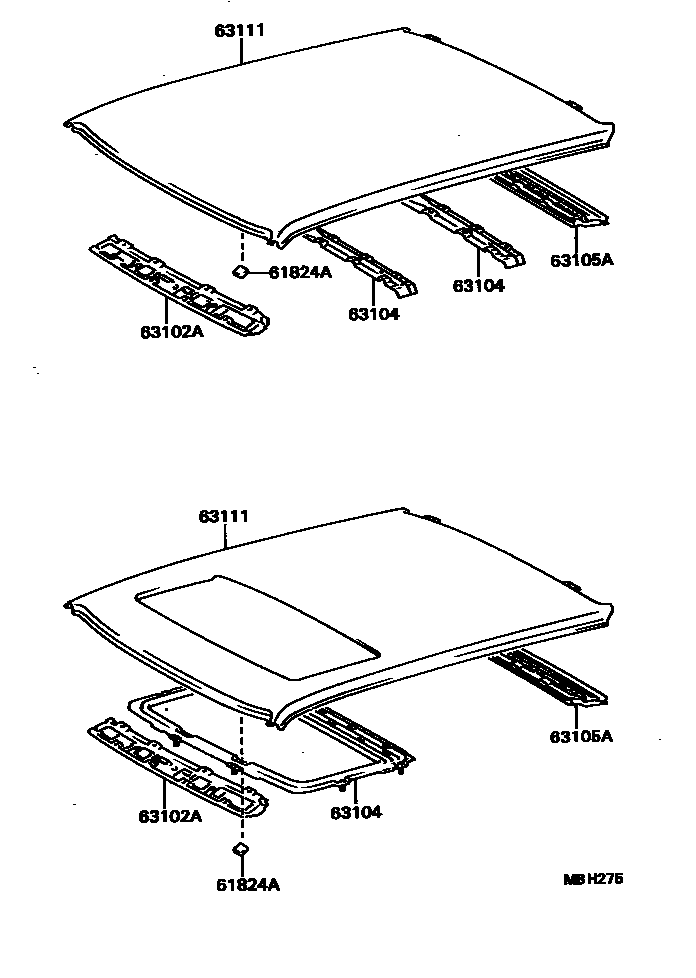

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

61824APLATE, NOISE CONTROL, NO.1

main61824-01010×2iAE82198609-198808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12020iAE82198609-198808

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-12110×2iAE82198609-198808

main63142-12020iAE82..GTS,Q198609-198808

W/SUN ROOF

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12150iAE82198609-198808

63111PANEL, ROOF

main63111-12280iAE82198609-198808

main63111-12290iAE82..GTS,Q198609-198808

W/SUN ROOF

5 parts on this diagram · 2 diagrams in section
