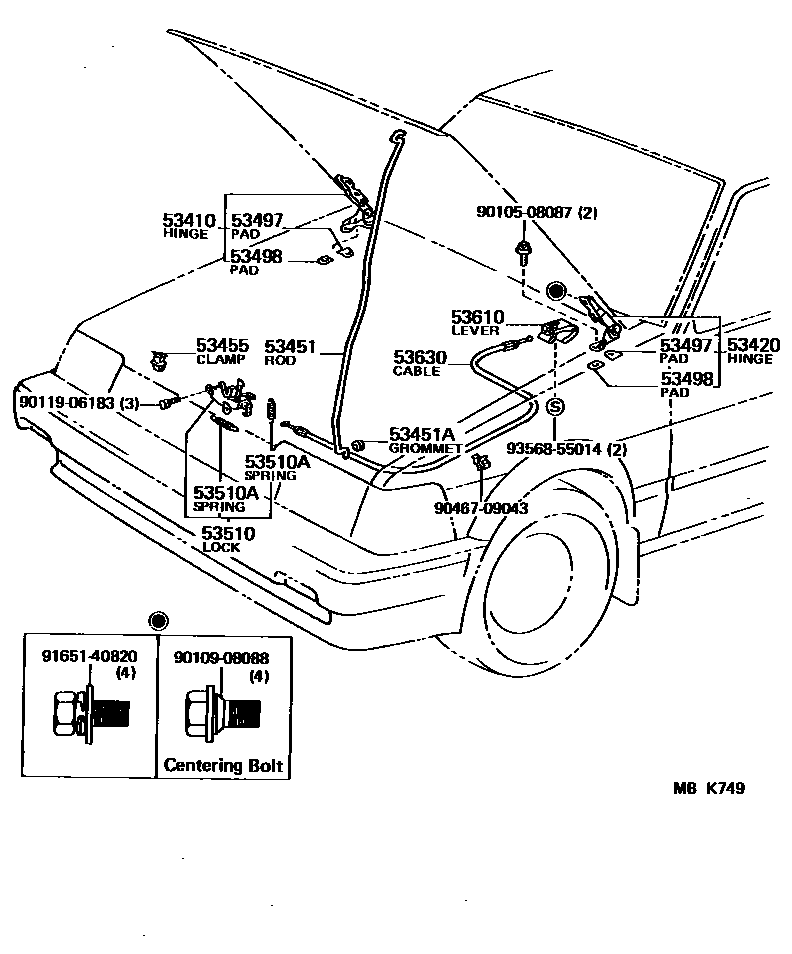

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12050iAE82198609-198808

53420HINGE ASSY, HOOD, LH

main53420-12040iAE82198609-198808

53451ROD, HOOD SUPPORT

main53451-12080iAE82198609-198808

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002iAE82198609-198808

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iAE82198609-198808

53497PAD, HOOD HINGE, NO.1

main53497-12010×2iAE82198609-198808

T=1.0

53498PAD, HOOD HINGE, NO.2

main53498-12010×2iAE82198609-198808

53510LOCK ASSY, HOOD

main53510-02010iAE82198609-198808

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iAE82198609-198808

WD=0.9,L=39.6

main90506-20008iAE82198609-198808

WD=2.0,CW=17,L=60.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-01010-J9iAE82198609-198808

DARK BLUE,DARK BLUE

main53601-01010-P8iAE82198609-198808

CHARCOAL,CHARCOAL

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12180iAE82198609-198808

9010508087

main90105-08087

9010908088

main90109-08088

9011906183

main90119-06183

9046709043

main90467-09043

9165140820

main91651-40820

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
