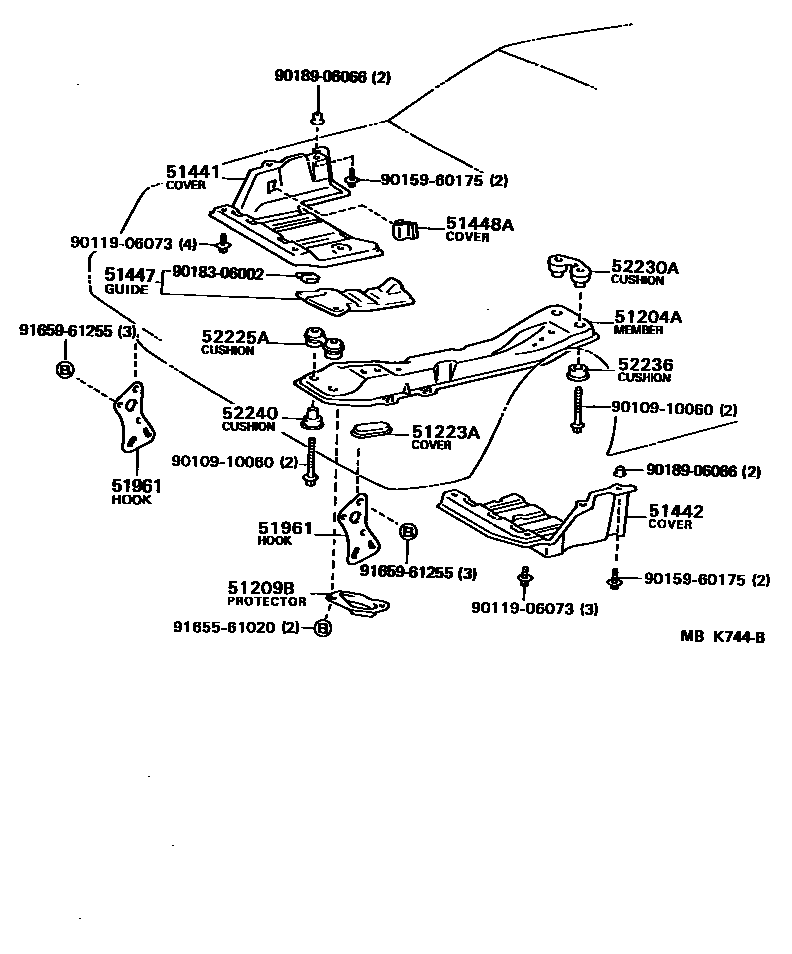

SUSPENSION CROSSMEMBER & UNDER COVER

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12030iAE82198609-198701

main51204-12031iAE82198701-198702

main51204-12032iAE82198702-198808

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAE82..GTS,Q198609-198808

51223ACOVER, ENGINE MOUNTING HOLE

main51223-01010×2iAE82198609-198808

51441COVER, ENGINE UNDER, NO.1

main51441-12131iAE82198609-198808

51442COVER, ENGINE UNDER, NO.2

main51442-20010iAE82..MTM198609-198808

main51442-20020iAE82..ATM198609-198808

51447GUIDE, ENGINE UNDER COVER AIR

main51447-12070iAE82..D198702-198808

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE82198609-198808

51961HOOK, NO.1

main51963-12080×2iAE82198609-198808

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20010iAE82198609-198808

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20010iAE82198609-198808

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20010×2iAE82198609-198808

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20010×2iAE82198609-198808

9010910060

main90109-10060

9011906073

main90119-06073

9015960175

main90159-60175

9018306002

main90183-06002

9018906066

main90189-06066

9165561020

main91655-61020

9165961255

main91659-61255

19 parts on this diagram · 1 diagram in section
