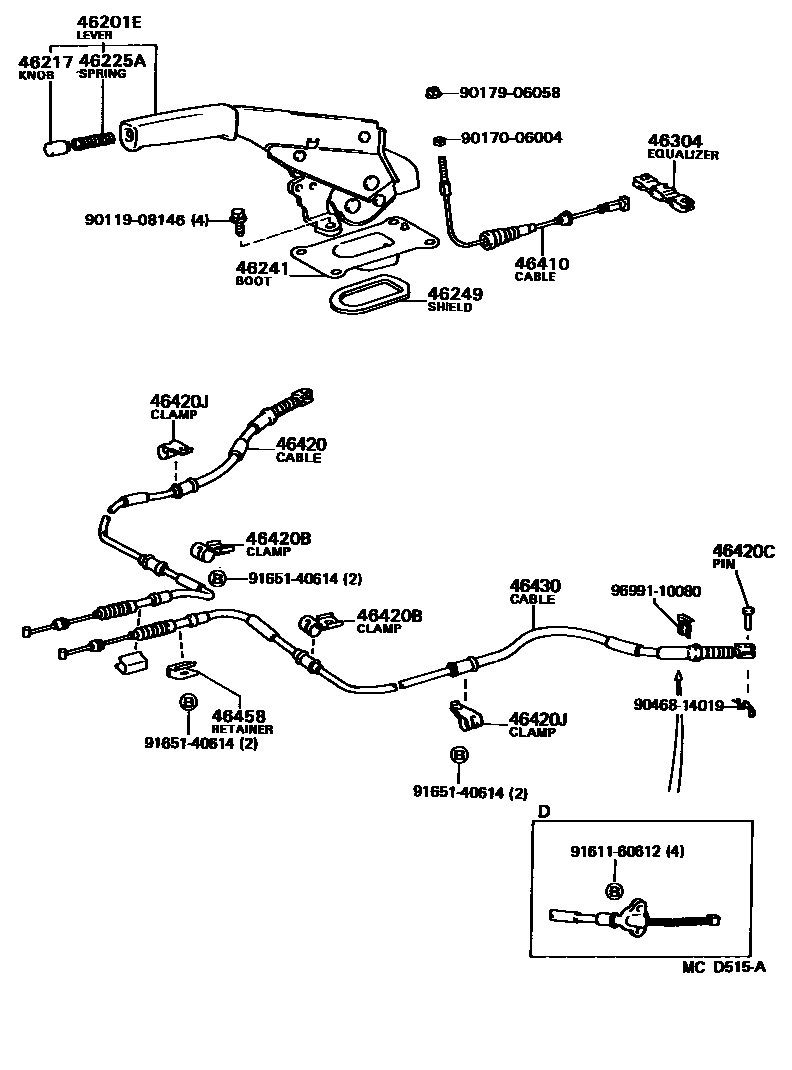

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-01010-J9iAE82..D198702-198801

BLUE,DARK BLUE

main46201-01010-P8iAE82..D198702-198801

CHARCOAL,CHARCOAL

main46201-01011-J9iAE82..D198801-198808

BLUE,DARK BLUE

main46201-01011-P8iAE82..D198801-198808

CHARCOAL,CHARCOAL

main46201-02010-J9iAE82..GTS,Q198609-198801

BLUE,DARK BLUE

main46201-02010-P8iAE82..GTS,Q198609-198801

CHARCOAL,CHARCOAL

main46201-02011-J9iAE82..GTS,Q198801-198808

BLUE,DARK BLUE

main46201-02011-P8iAE82..GTS,Q198801-198808

CHARCOAL,CHARCOAL

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-01011-J9iAE82198609-198801

BLUE,DARK BLUE

main46217-01011-P8iAE82198609-198801

CHARCOAL,CHARCOAL

main46217-01030-J9iAE82198801-198808

BLUE,DARK BLUE

main46217-01030-P8iAE82198801-198808

CHARCOAL,CHARCOAL

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAE82198609-198808

46241BOOT, PARKING BRAKE LEVER

main46241-32010iAE82198609-198808

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iAE82198609-198808

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iAE82198609-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12150iAE82..GTS,Q198609-198808

main46410-20210iAE82..D198702-198808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12310iAE82..D198702-198808

main46420-12330iAE82..GTS,Q198609-198808

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01112×2iAE82198609-198808

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×2iAE82..GTS,Q198609-198808

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01015×2iAE82198609-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12210iAE82..D198702-198808

main46430-12230iAE82..GTS,Q198609-198808

46458RETAINER, CABLE

main46458-20020×2iAE82198609-198808

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

20 parts on this diagram · 1 diagram in section
