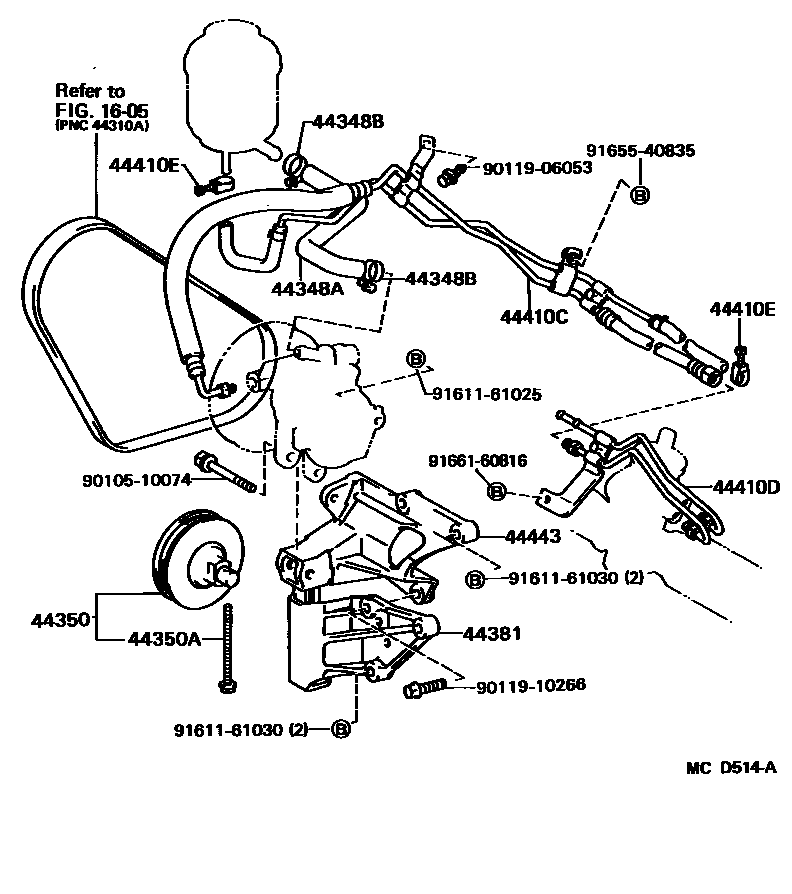

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-12040iAE82..GTS,Q198609-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iAE82..GTS,Q198609-198808

44350PULLEY ASSY, POWER STEERING IDLE

main44350-12060iAE82..GTS,Q198609-198808

44350ABOLT(FOR POWER STEERING IDLE PULLEY)

main90105-08099iAE82..GTS,Q198609-198808

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-12030iAE82..GTS,Q198609-198808

44410TUBE ASSY, PRESSURE FEED

main44410-01010iAE82..D198702-198808

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-02020iAE82..GTS,Q198609-198808

44410DTUBE ASSY, PRESSURE FEED, NO.2

main44410-02010iAE82..GTS,Q198609-198808

44410ECLAMP(FOR PRESSURE FEED TUBE)

main90460-01001iAE82198609-198808

44443BRACKET, PUMP

main44443-12050iAE82..D198702-198808

main44443-12060iAE82..GTS,Q198609-198808

9010510074

main90105-10074

9011906053

main90119-06053

9011910266

main90119-10266

9161161025

main91611-61025

9161161030

main91611-61030

9165540835

main91655-40835

9166160816

main91661-60816

18 parts on this diagram · 2 diagrams in section
