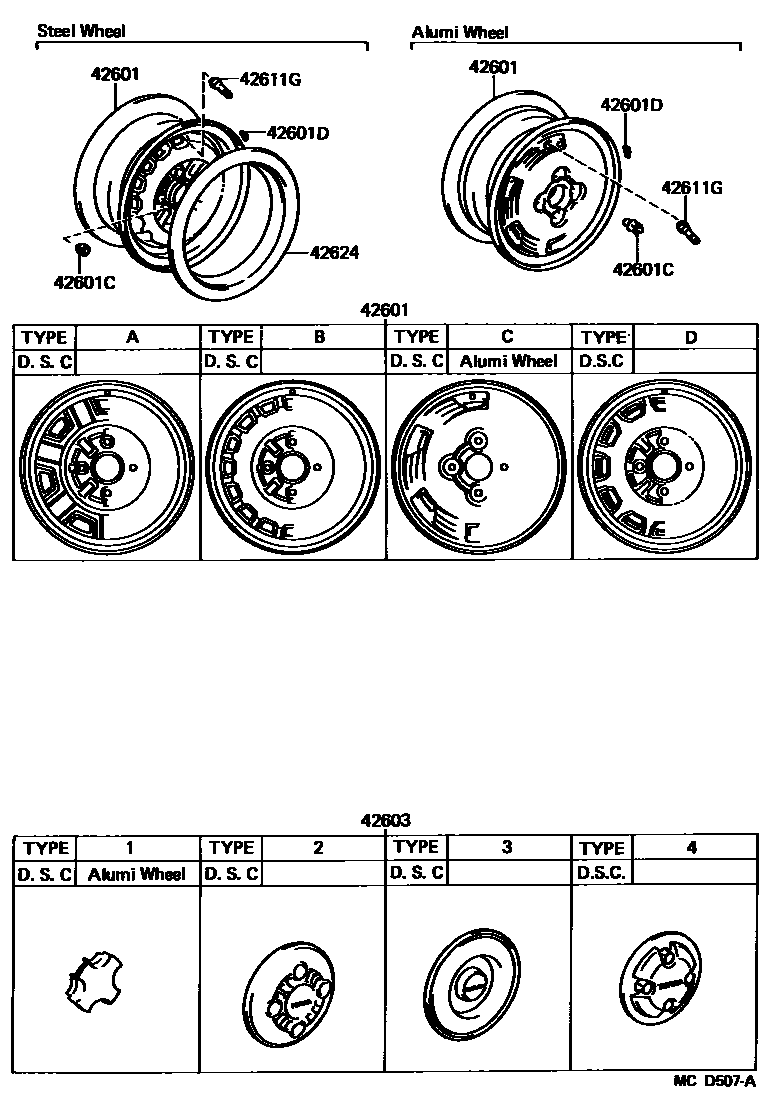

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ,ALUMI,5.5JJX14,ALUMI WHEEL,TYPE C
13X5J,5JX13,TYPE D
14X4T,4TX14,SPARE TIRE
42601CNUT, HUB (FOR AXLE)
CAP NUT
ALUMI WHEEL
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
10G,ALUMI WHEEL
15G,ALUMI WHEEL
20G,ALUMI WHEEL
25G,ALUMI WHEEL
30G,ALUMI WHEEL
35G,ALUMI WHEEL
40G,ALUMI WHEEL
45G,ALUMI WHEEL
50G,ALUMI WHEEL
55G,ALUMI WHEEL
60G,ALUMI WHEEL
65G,ALUMI WHEEL
70G,ALUMI WHEEL
75G,ALUMI WHEEL
80G,ALUMI WHEEL
10G,10G
15G,15G
20G,20G
25G,25G
30G,30G
35G,35G
40G,40G
45G,45G
50G,50G
55G,55G
60G,60G
65G,65G
70G,70G
75G,75G
80G,80G
5G,5G
42603ORNAMENT SUB-ASSY, WHEEL HUB
*STE,TYPE 4
TYPE 2
ALUMI WHEEL,TYPE 1
TYPE 3
42611GVALVE (FOR TUBELESS TIRE)
42624RING, WHEEL CAP
6 parts on this diagram · 1 diagram in section
