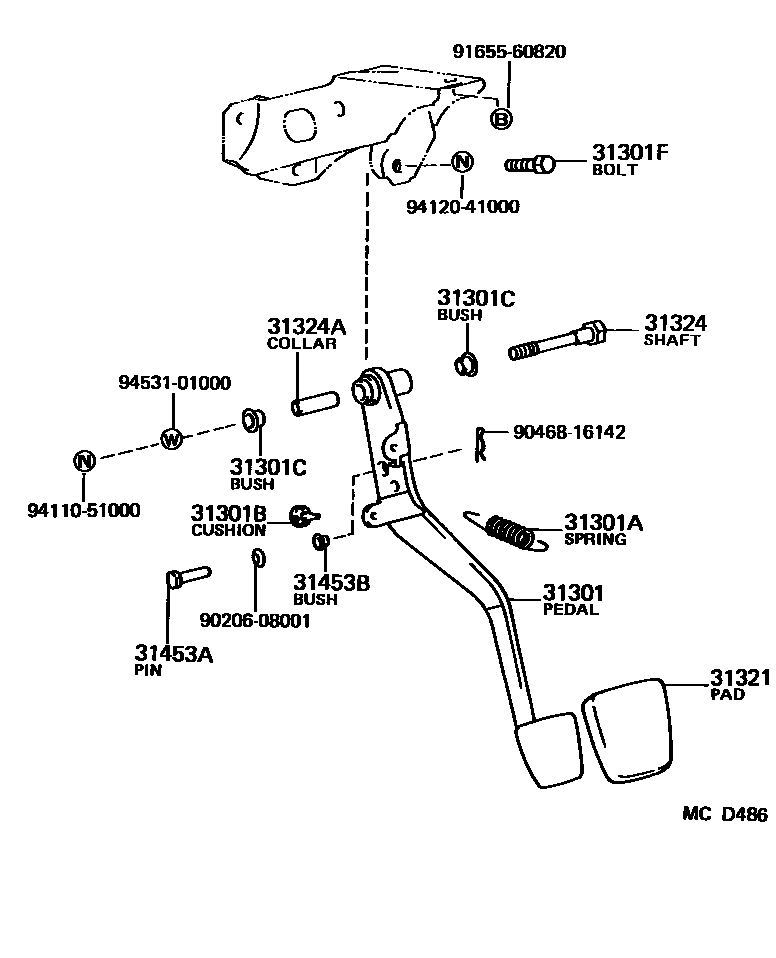

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02010iAE82..MTM198609-198808

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14052iAE82..MTM198609-198808

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAE82..MTM198609-198709

PEDAL STOPPER

main90541-06036iAE82..MTM198709-198808

PEDAL STOPPER

main90541-07010iAE82..MTM198609-198808

CLUTCH START SWITCH

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192×2iAE82..MTM198609-198808

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAE82..MTM198609-198808

31321PAD, CLUTCH PEDAL

main31321-12030iAE82..MTM198609-198705

main31321-12040iAE82..MTM198705-198808

31324SHAFT, CLUTCH PEDAL

main90101-10015iAE82..MTM198609-198808

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAE82..MTM198609-198808

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAE82..MTM198609-198808

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAE82..MTM198609-198808

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

16 parts on this diagram · 2 diagrams in section
