V-BELT

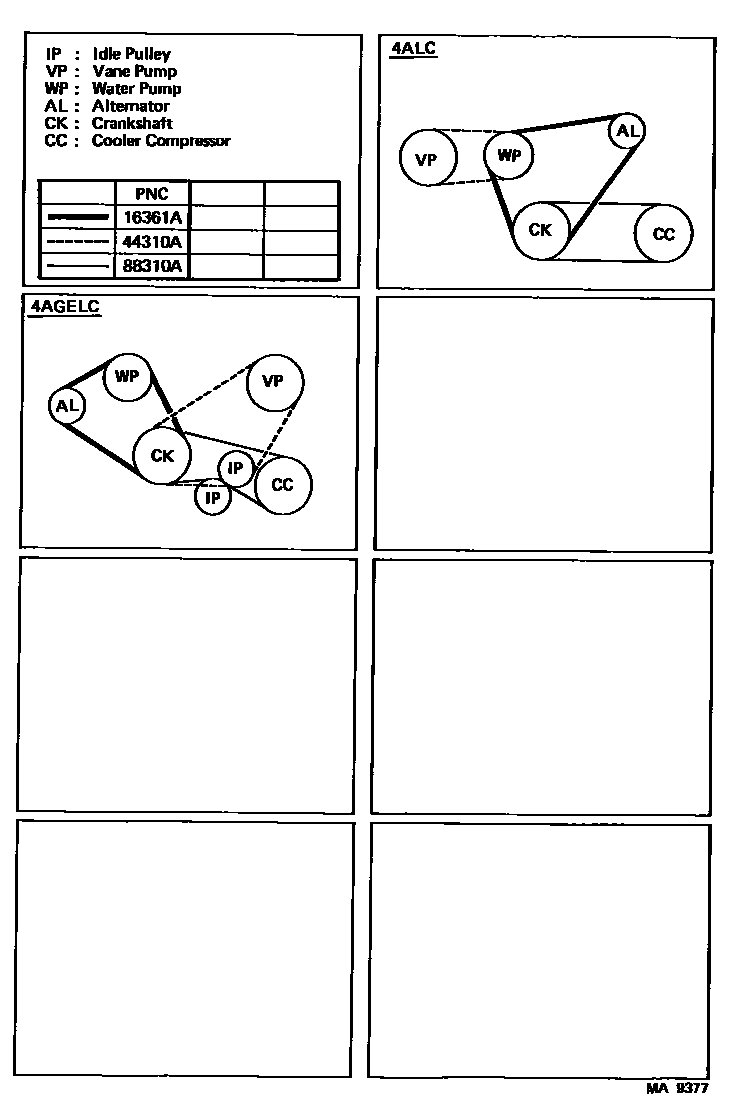

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02148i198806-198808

main99365-00970i198702-198808

main99365-50820i198802-198806

44310ABELT, V(FOR VANE PUMP)

main99363-00630i198702-198808

main99365-50920i198609-198808

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02191i198704-198808

main99332-10875i198702-198808

main99365-01060i198609-198704

3 parts on this diagram · 1 diagram in section
