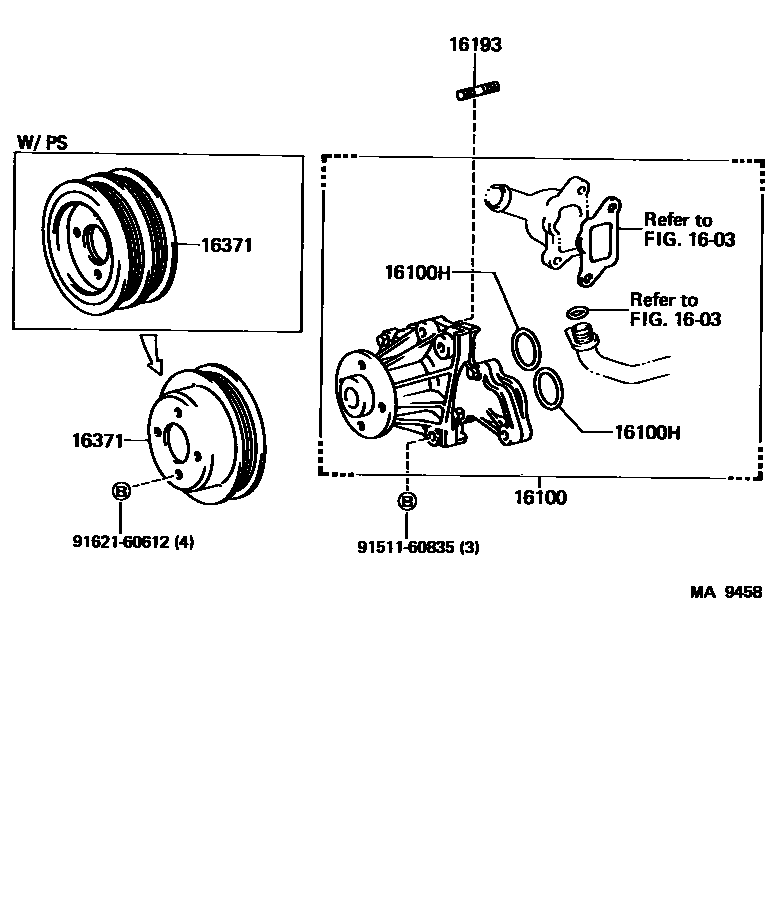

WATER PUMP

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19105i4ALC..AE82198702-198808

main16100-19115i4AGELC..AE82198609-198808

16100HRING, O(FOR WATER PUMP)

main96711-24035i4A#..AE82198609-198808

16193BOLT, STUD(FOR WATER PUMP COVER)

main92122-60816×2i4A#..AE82198609-198808

16371PULLEY, FAN

main16371-15050i4ALC..AE82198702-198808

W/PS

main16371-15060i4ALC..AE82198702-198808

main16371-16030i4AGELC..AE82198609-198808

9151160835

main91511-60835

9162160612

main91621-60612

7 parts on this diagram · 2 diagrams in section
