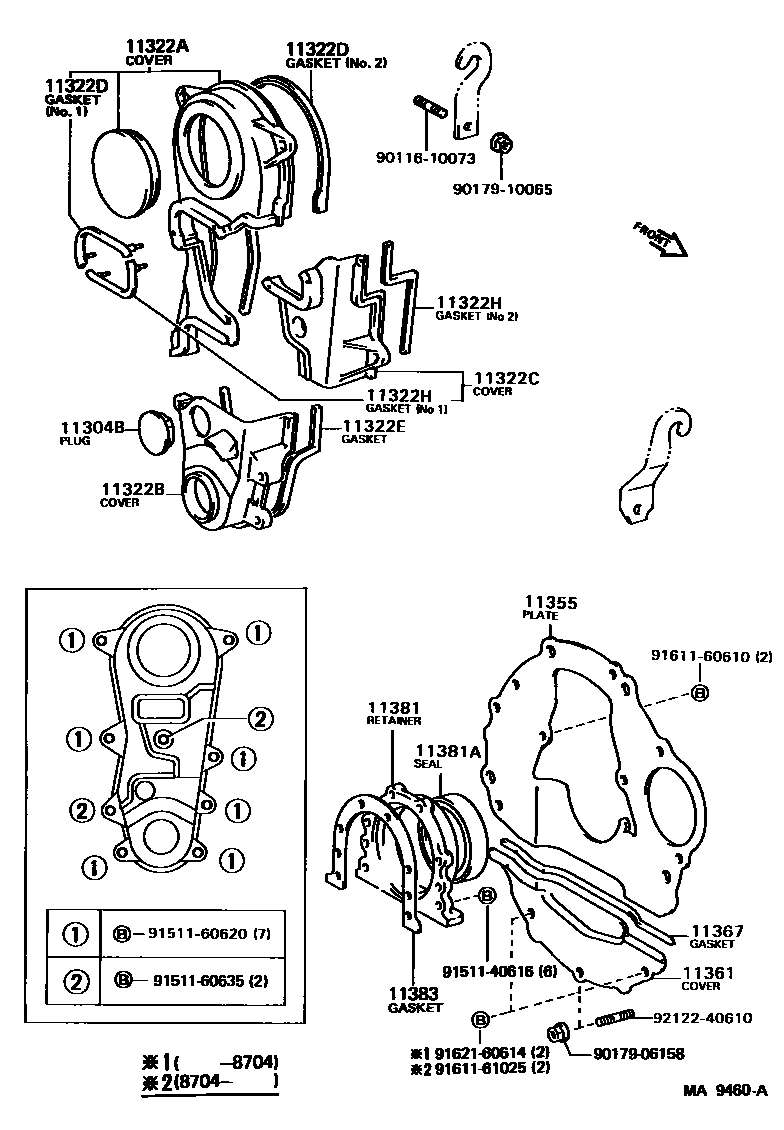

TIMING GEAR COVER & REAR END PLATE
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=34
OD=22
11322ACOVER, TIMING BELT, NO.1
11322BCOVER, TIMING BELT, NO.2
11322CCOVER, TIMING BELT, NO.3
11322DGASKET, TIMING BELT COVER, NO.1
NO.2
NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11322HGASKET, TIMING BELT COVER, NO.3
NO.2
NO.1
11361COVER, FLYWHEEL HOUSING UNDER
11367GASKET, FLYWHEEL HOUSING UNDER
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11383GASKET, ENGINE REAR OIL SEAL RETAINER
9011610073
main90116-10073
9017906158
main90179-06158
9017910065
main90179-10065
9151140616
main91511-40616
9151160620
main91511-60620
9151160635
main91511-60635
9161160610
main91611-60610
9161161025
main91611-61025
9162160614
main91621-60614
9212240610
main92122-40610
23 parts on this diagram · 2 diagrams in section
