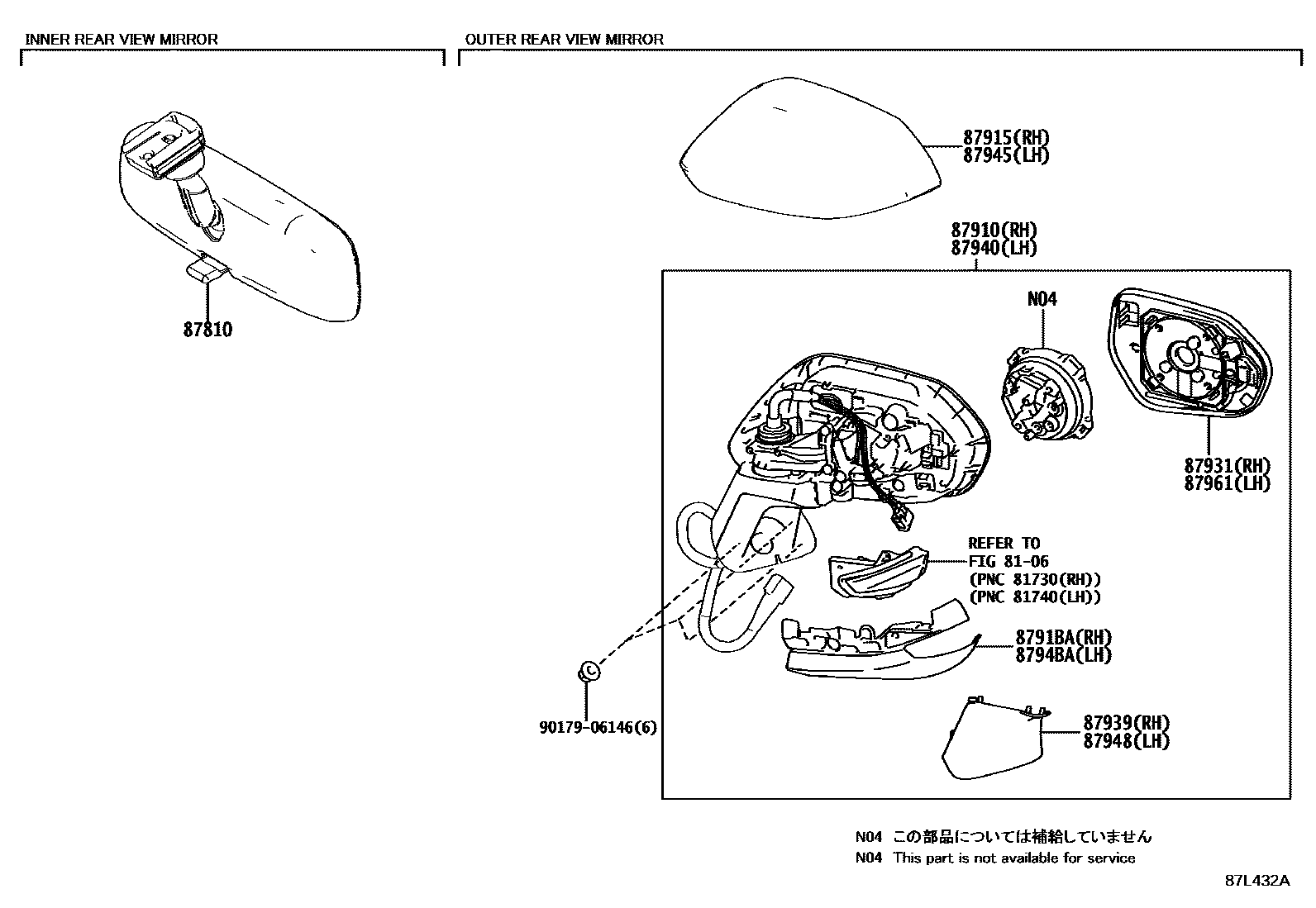

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-28140iGZEA14202409

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12F90supersedes 87910-12F80iGZEA14202409

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-52251-C3iGZEA14..02S202212-202304

BLACK,040 ,089 ,1L5 ,1M1 ,202 ,3U5

8791BACOVER, OUTER MIRROR, RH NO.3

main8791B-12G30iGZEA14..02S202210-202304

87931OUTER MIRROR, RH

main87902-33110supersedes 87902-33150iGZEA14202409

87939COVER, OUTER MIRROR HOLE, RH

main87939-12G30iGZEA14..02S202210-202304

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12G10supersedes 87940-12G00iGZEA14202409

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-52251-C3iGZEA14202409

BLACK,040 ,1L5 ,202 ,3U5

87948COVER, OUTER MIRROR HOLE, LH

main87948-12G50iGZEA14..02S202210-202304

8794BACOVER, OUTER MIRROR, LH NO.3

main8794B-12G50iGZEA14202409

87961MIRROR OUTER, LH

main87907-33090supersedes 87907-12040iGZEA14202409

9017906146

main90179-06146

13 parts on this diagram · 1 diagram in section
