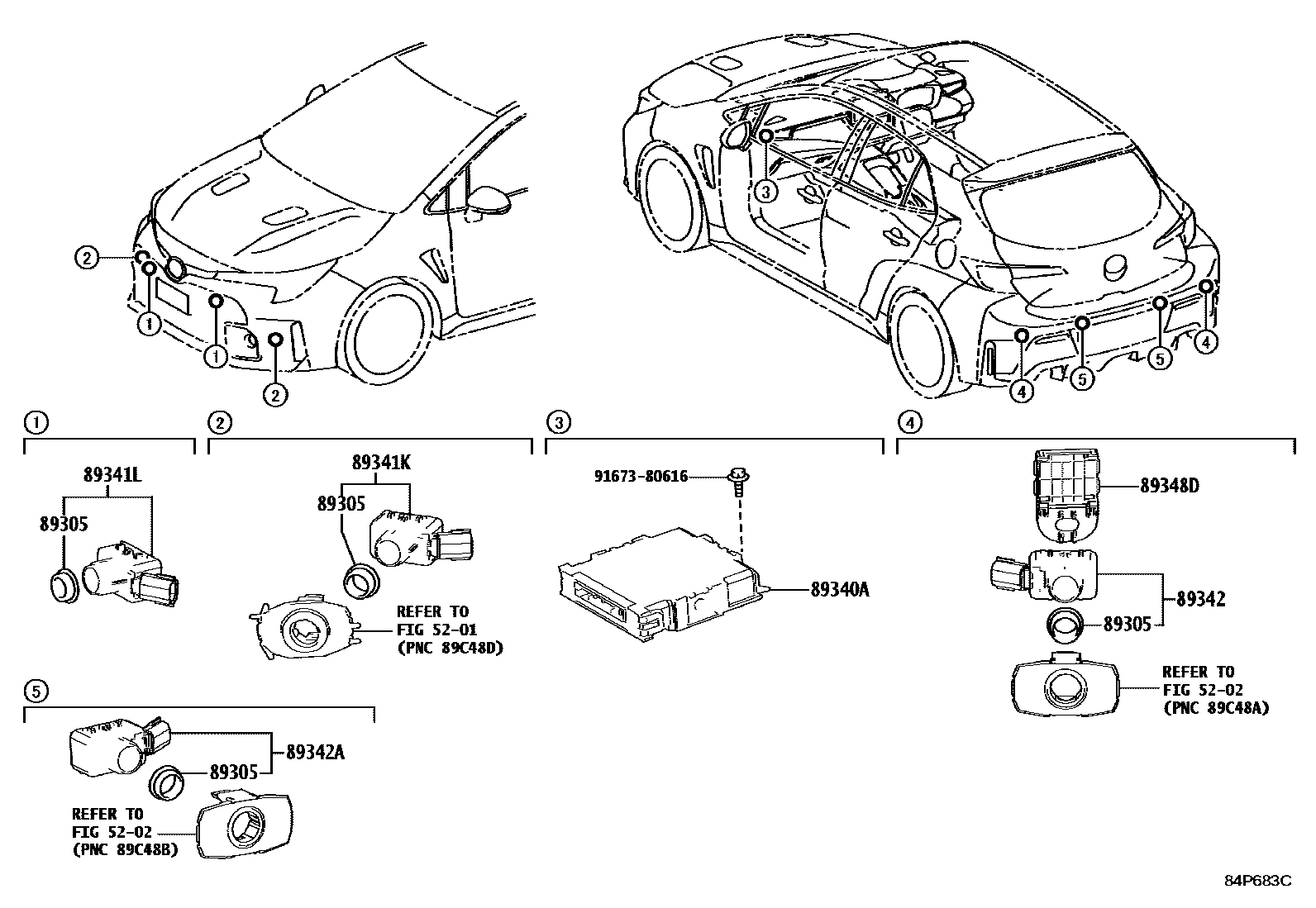

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
HIGH GRADE PACKAGE; PREMIUM GRADE PACKAGE
89340ACOMPUTER ASSY, CLEARANCE WARNING
HIGH GRADE PACKAGE; PREMIUM GRADE PACKAGE
PREMIUM GRADE PACKAGE
89341KSENSOR, ULTRASONIC, FRONT CORNER
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,SUPER WHITE 2,040; HIGH GRADE PACKAGE,SUPER WHITE 2,040; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,SUPER WHITE 2,040; PREMIUM GRADE PACKAGE,SUPER WHITE 2,040
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,BLACK,202; HIGH GRADE PACKAGE,BLACK,202; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,BLACK,202; PREMIUM GRADE PACKAGE,BLACK,202
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,EMOTIONAL RED 2,3U5; HIGH GRADE PACKAGE,EMOTIONAL RED 2,3U5; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,EMOTIONAL RED 2,3U5; PREMIUM GRADE PACKAGE,EMOTIONAL RED 2,3U5
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,CYAN METALLIC,8W9; HIGH GRADE PACKAGE,CYAN METALLIC,8W9; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,CYAN METALLIC,8W9; PREMIUM GRADE PACKAGE,CYAN METALLIC,8W9
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,PRECIOUS METAL,1L5; HIGH GRADE PACKAGE,PRECIOUS METAL,1L5; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,PRECIOUS METAL,1L5; PREMIUM GRADE PACKAGE,PRECIOUS METAL,1L5
89341LSENSOR, ULTRASONIC, FRONT CENTER
HIGH GRADE PACKAGE,DUMMY-MAT BLACK; PREMIUM GRADE PACKAGE,DUMMY-MAT BLACK
PREMIUM GRADE PACKAGE,BLACK,202,BLACK PAINT
89342SENSOR, ULTRASONIC, REAR CORNER
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,SUPER WHITE 2,040; HIGH GRADE PACKAGE,SUPER WHITE 2,040; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,SUPER WHITE 2,040; PREMIUM GRADE PACKAGE,SUPER WHITE 2,040
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,BLACK,202; HIGH GRADE PACKAGE,BLACK,202; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,BLACK,202; PREMIUM GRADE PACKAGE,BLACK,202
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,EMOTIONAL RED 2,3U5; HIGH GRADE PACKAGE,EMOTIONAL RED 2,3U5; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,EMOTIONAL RED 2,3U5; PREMIUM GRADE PACKAGE,EMOTIONAL RED 2,3U5
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,CYAN METALLIC,8W9; HIGH GRADE PACKAGE,CYAN METALLIC,8W9; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,CYAN METALLIC,8W9; PREMIUM GRADE PACKAGE,CYAN METALLIC,8W9
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,PRECIOUS METAL,1L5; HIGH GRADE PACKAGE,PRECIOUS METAL,1L5; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,PRECIOUS METAL,1L5; PREMIUM GRADE PACKAGE,PRECIOUS METAL,1L5
89342ASENSOR, ULTRASONIC, REAR CENTER
PREMIUM GRADE PACKAGE,SUPER WHITE 2,040
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,BLACK,202; HIGH GRADE PACKAGE,BLACK,202; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,BLACK,202; PREMIUM GRADE PACKAGE,BLACK,202
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,EMOTIONAL RED 2,3U5; HIGH GRADE PACKAGE,EMOTIONAL RED 2,3U5; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,EMOTIONAL RED 2,3U5; PREMIUM GRADE PACKAGE,EMOTIONAL RED 2,3U5
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,CYAN METALLIC,8W9; HIGH GRADE PACKAGE,CYAN METALLIC,8W9; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,CYAN METALLIC,8W9; PREMIUM GRADE PACKAGE,CYAN METALLIC,8W9
HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,PRECIOUS METAL,1L5; HIGH GRADE PACKAGE,PRECIOUS METAL,1L5; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,PRECIOUS METAL,1L5; PREMIUM GRADE PACKAGE,PRECIOUS METAL,1L5
89348DCLIP, ULTRASONIC SENSOR
HIGH GRADE PACKAGE; HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT; PREMIUM GRADE PACKAGE; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT
9167380616
main91673-80616
10 parts on this diagram · 1 diagram in section
