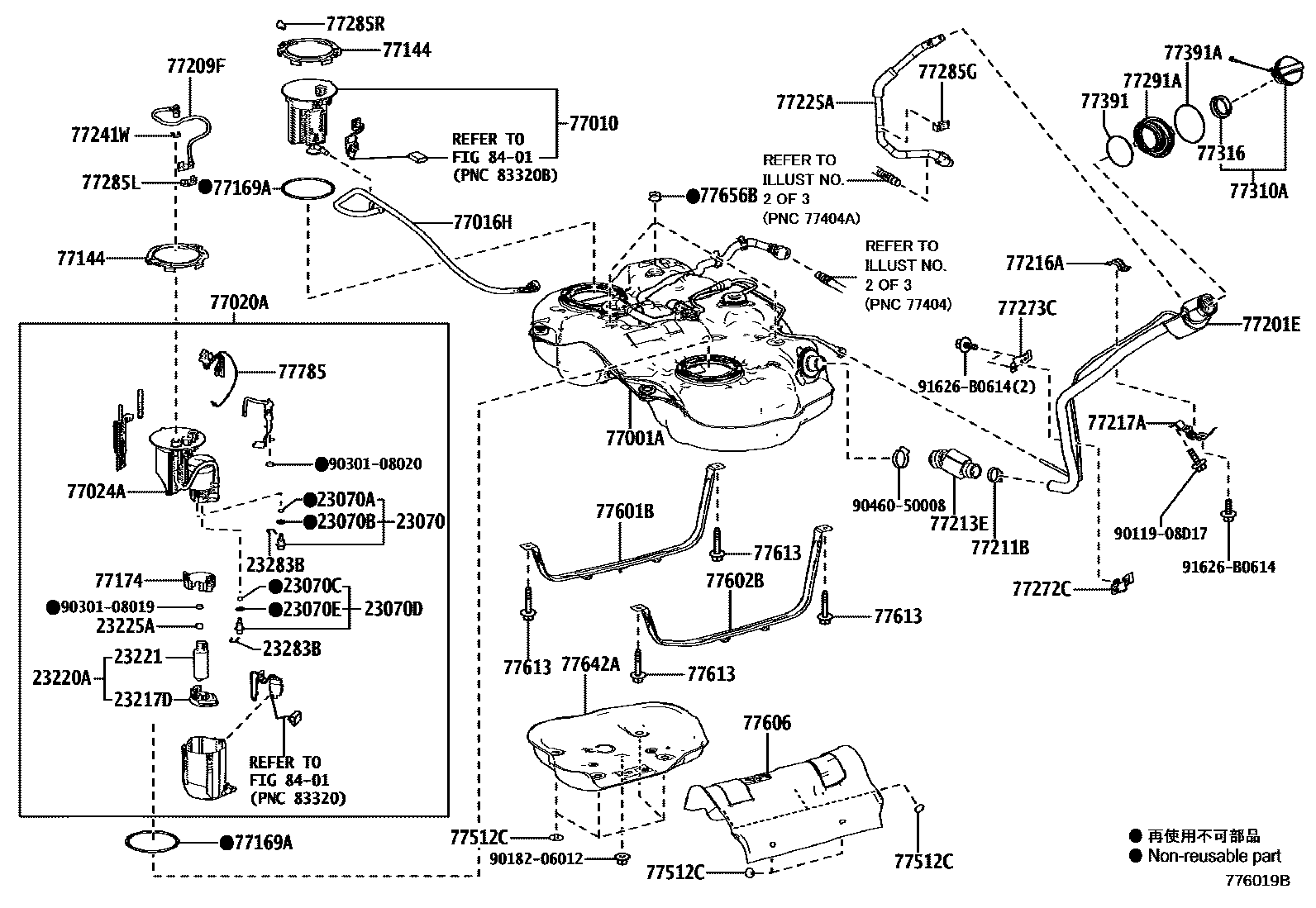

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
23070DVALVE ASSY, FUEL MAIN, NO.2
23070ERING, O, NO.4(FOR FUEL MAIN VALVE)
23217DFILTER, FUEL PUMP
23220APUMP ASSY, FUEL W/FILTER
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23283BHOLDER, FUEL PRESSURE REGULATOR
77001ATANK SUB-ASSY, FUEL
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77225ATUBE, FUEL TANK BREATHER, NO.5
77241WCLIP, TUBE JOINT
77272CSUPPORT, BREATHER TUBE, NO.3
77273CSUPPORT, BREATHER TUBE, NO.2
77285GCLAMP, FUEL TUBE, NO.1
77285LCLAMP, FUEL TUBE, NO.1
77285RCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
77642APROTECTOR, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9011908D17
main90119-08D17
9018206012
main90182-06012
9030108019
main90301-08019
9030108020
main90301-08020
9046050008
main90460-50008
91626B0614
main91626-B0614
52 parts on this diagram · 3 diagrams in section
