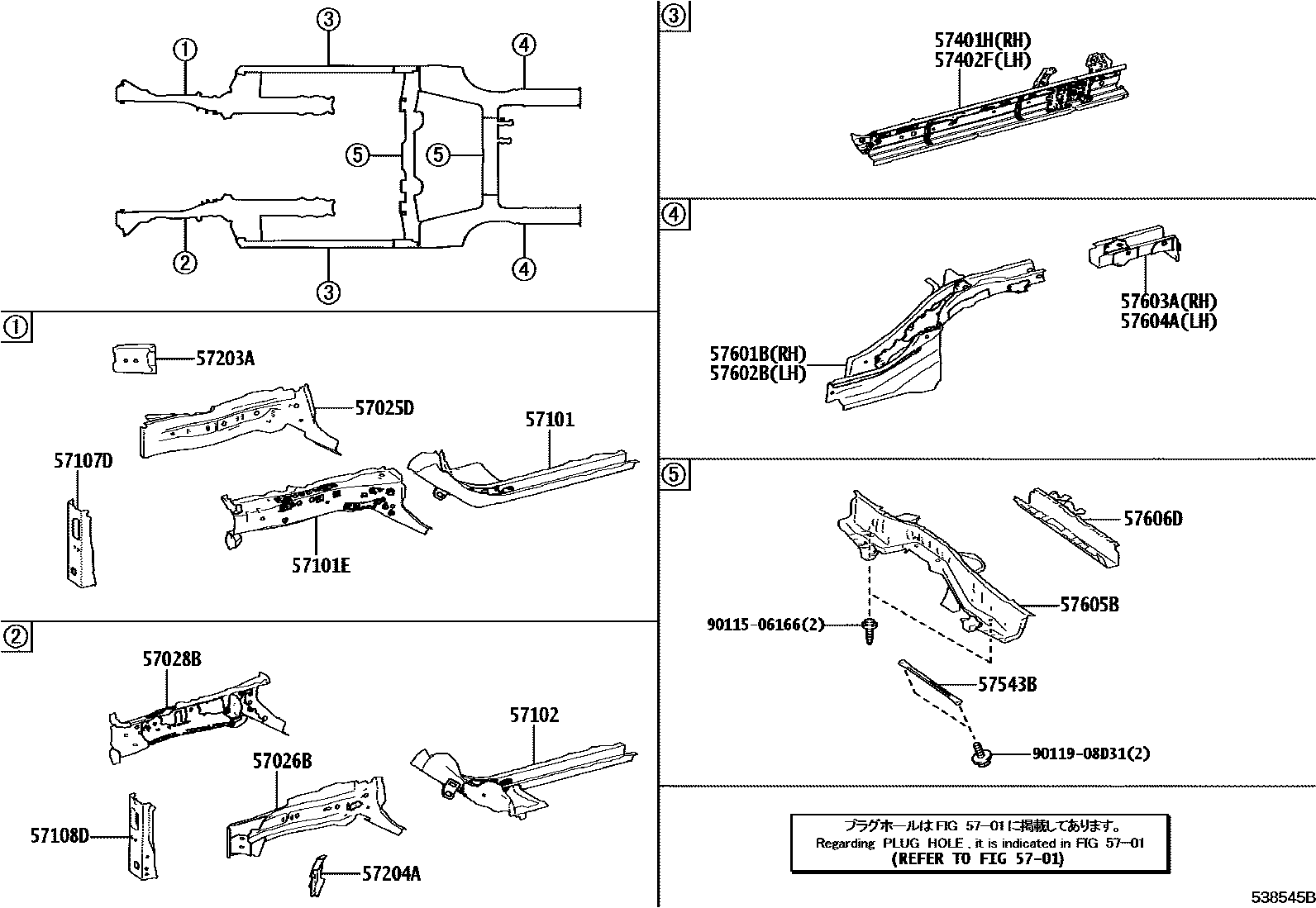

FLOOR SIDE MEMBER

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-12020iGZEA14202409

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-47020iGZEA14..02S202210-202304

main57116-47902iGZEA14202409

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-47040iGZEA14202409

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57023-12020iGZEA14202409

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12020iGZEA14..02S202210-202304

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57024-12020iGZEA14202409

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-47030iGZEA14202409

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-47030iGZEA14202409

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57215-02070iGZEA14202409

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-47011iGZEA14..02S202210-202304

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-12640iGZEA14202409

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-12640iGZEA14202409

57543BBRACE, CENTER FLOOR, NO.1

main57543-12030iGZEA14202409

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-12C50iGZEA14202409

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-12D30iGZEA14202409

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-10020iGZEA14202409

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-10020iGZEA14202409

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12340iGZEA14202409

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-12301iGZEA14202409

9011506166

main90115-06166

9011908D31

main90119-08D31

22 parts on this diagram · 1 diagram in section
