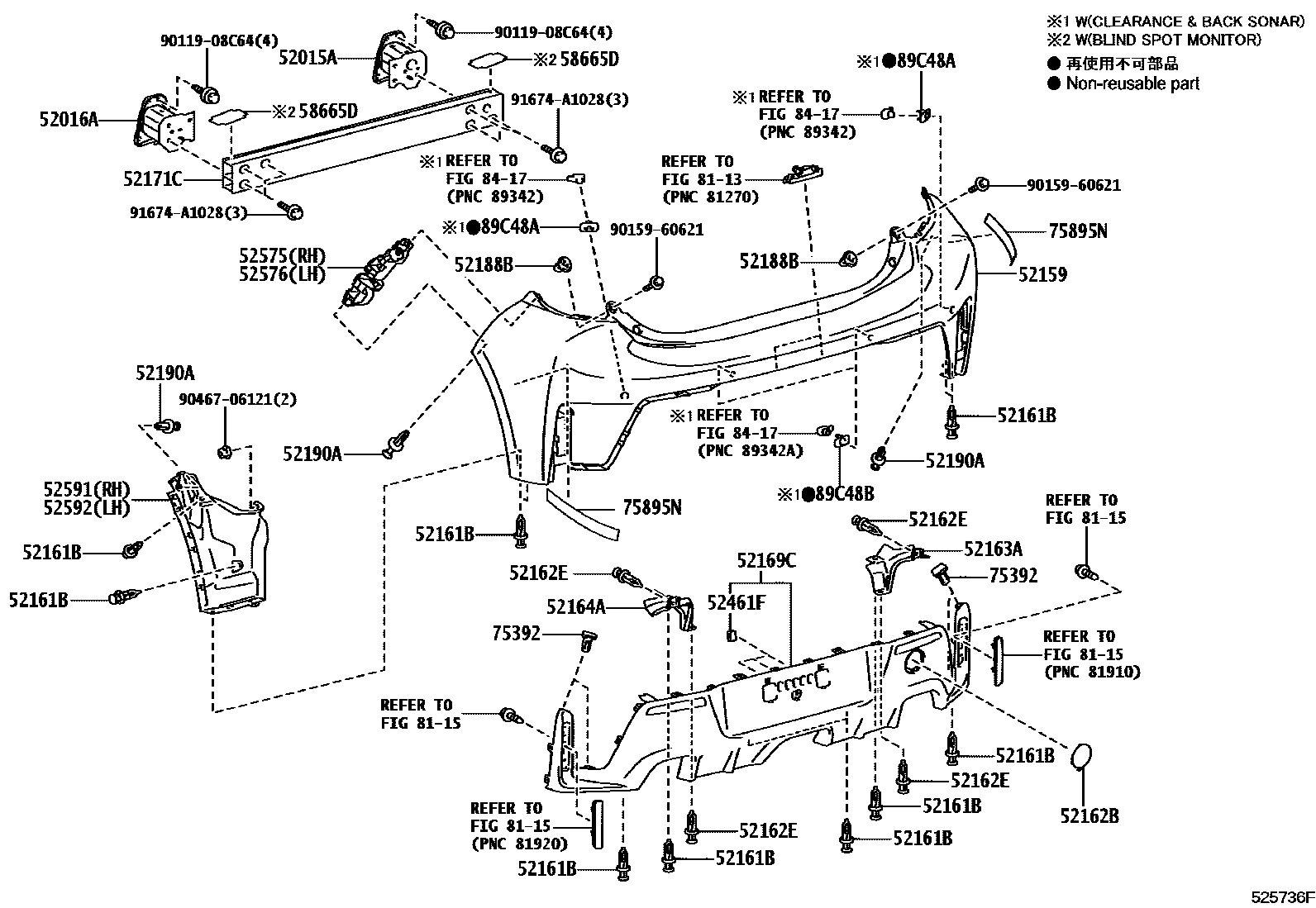

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12440i202409

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12390i202210-202304

52159COVER, REAR BUMPER

main52159-12975i202210-202409

PAINT REQ.

main52159-12976i202309-202409

PAINT REQ.,HIGH GRADE PACKAGE; PAINT REQ.,HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT; PAINT REQ.,PREMIUM GRADE PACKAGE; PAINT REQ.,PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT

52161BPIECE, REAR BUMPER

main52161-16010×14i202409

52162BPLATE, REAR BUMPER, NO.1

main52162-12080i202409

52162EPIECE, REAR BUMPER

main52161-16010×4i202210-202409

52163APLATE, REAR BUMPER, RH

main52163-12120i202210-202409

52164APLATE, REAR BUMPER, LH

main52164-12110i202210-202409

52169CCOVER, REAR BUMPER, LOWER

main52169-12260supersedes 52169-12250i202212-202304

NO PAINT REQ.

52171CREINFORCEMENT, REAR BUMPER

main52171-12320i202210-202409

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040×2i202409

52190ACLIP

main90467-05090-B1×4i202409

DK.GRAY

52461FPAD, REAR BUMPER

main52461-12080×3i202409

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12270i202409

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12260i202409

52591SEAL, REAR BUMPER SIDE, RH

main52591-12360i202409

52592SEAL, REAR BUMPER SIDE, LH

main52592-12220i202409

58665DSHEET, REAR FLOOR SILENCER, NO.5

main58665-12010×2i202409

75392RETAINER, OUTSIDE MOULDING

main75392-35220×4i202409

75895NTAPE, MOULDING, NO.1

main75895-53010×2i202409

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-30480-A1×2i202409

PREMIUM GRADE PACKAGE,SUPER WHITE 2,040

main89348-30480-B1×2i202409

PREMIUM GRADE PACKAGE,PRECIOUS METAL,1L5

main89348-30480-C0×2i202409

PREMIUM GRADE PACKAGE,BLACK,202

main89348-30480-D0×2i202409

PREMIUM GRADE PACKAGE,EMOTIONAL RED 2,3U5

main89348-42290-A3×2i202309-202408

HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,SUPER WHITE 2,040; HIGH GRADE PACKAGE,SUPER WHITE 2,040; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,SUPER WHITE 2,040; PREMIUM GRADE PACKAGE,SUPER WHITE 2,040

main89348-42290-B5×2i202309-202408

HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,PRECIOUS METAL,1L5; HIGH GRADE PACKAGE,PRECIOUS METAL,1L5; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,PRECIOUS METAL,1L5; PREMIUM GRADE PACKAGE,PRECIOUS METAL,1L5

main89348-42290-C3×2i202309-202408

HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,BLACK,202; HIGH GRADE PACKAGE,BLACK,202; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,BLACK,202; PREMIUM GRADE PACKAGE,BLACK,202

main89348-42290-D0×2i202309-202408

HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,EMOTIONAL RED 2,3U5; HIGH GRADE PACKAGE,EMOTIONAL RED 2,3U5; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,EMOTIONAL RED 2,3U5; PREMIUM GRADE PACKAGE,EMOTIONAL RED 2,3U5

main89348-42290-J8×2i202309-202408

HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,CYAN METALLIC,8W9; HIGH GRADE PACKAGE,CYAN METALLIC,8W9; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT,CYAN METALLIC,8W9; PREMIUM GRADE PACKAGE,CYAN METALLIC,8W9

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-46060×2i202409

PREMIUM GRADE PACKAGE

main89348-K0231×2i202309-202408

HIGH GRADE PACKAGE; HIGH GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT; PREMIUM GRADE PACKAGE; PREMIUM GRADE PACKAGE&RADIATOR LOWER GRILLE-BLACK PAINT

9011908C64

main90119-08C64

9015960621

main90159-60621

9046706121

main90467-06121

91674A1028

main91674-A1028
